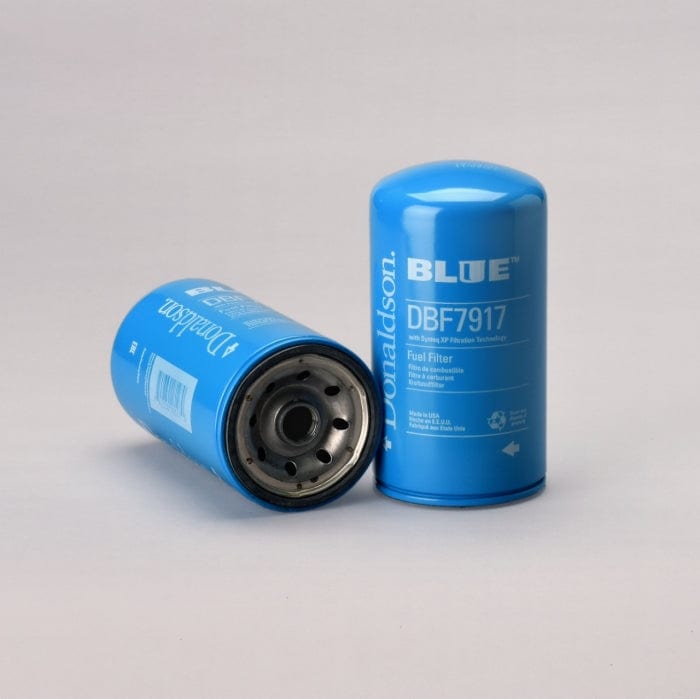

Donaldson DBF7917

Fuel Filter, Spin-On Secondary Donaldson Blue
Outer Diameter 3.66 inch (92.9 mm)
Thread Size 13/16-12 UN
Length 6.85 inch (174 mm)
Gasket OD 3.39 inch (86.2 mm)
Gasket ID 3.05 inch (77.5 mm)
Efficiency 99.9% 4 micron
Efficiency Test Std SAE J1985
Collapse Burst 75 psi (5.2 bar)
Type Secondary
Style Spin-On
Brand Donaldson BLUE®
Media Type Synteq XP
Primary Application DETROIT DIESEL 23530645
View full details

Specifications

Attributes

  • Outer Diameter: 92.9 mm (3.66 inch)
  • Thread Size: 13/16-12 UN
  • Length: 174 mm (6.85 inch)
  • Gasket OD: 86.2 mm (3.39 inch)
  • Gasket ID: 77.5 mm (3.05 inch)
  • Efficiency 99.9%: 4 micron
  • Efficiency Test Std: SAE J1985
  • Collapse Burst: 5.2 bar (75 psi)
  • Type: Secondary
  • Style: Spin-On
  • Brand: Donaldson BLUE®
  • Media Type: Synteq XP
  • Primary Application: DETROIT DIESEL 23530645

Packaged Dimensions

  • Packaged Length: 0.002 m (0.09 inch)
  • Packaged Width: 0.002 m (0.09 inch)
  • Packaged Height: 0.004 m (0.17 inch)
  • Packaged Weight: 0.477 kg (1.05 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-10
  • HTS Code: 8421230090
  • UPC Code: 742330181270

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DETROIT DIESEL 23530645
PREVOST CAR 19503233

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
DETROIT DIESEL SERIES 60 - ENGINE - - SERIES 60 -
FREIGHTLINER CA125 - TRUCK - DETROIT DIESEL SERIES 60 -
FREIGHTLINER CASCADIA - TRUCK - DETROIT DIESEL SERIES 60 -
FREIGHTLINER CENTURY CLASS S/T - TRUCK - DETROIT DIESEL SERIES 60 -
STERLING A-LINE - TRUCK - DETROIT DIESEL SERIES 60 -
WESTERN STAR TRUCK 6900XD - TRUCK - DETROIT DIESEL SERIES 60 -
