• Donaldson Fuel Filter, Spin-On Secondary Donaldson Blue - Donaldson DBF6776
1 1

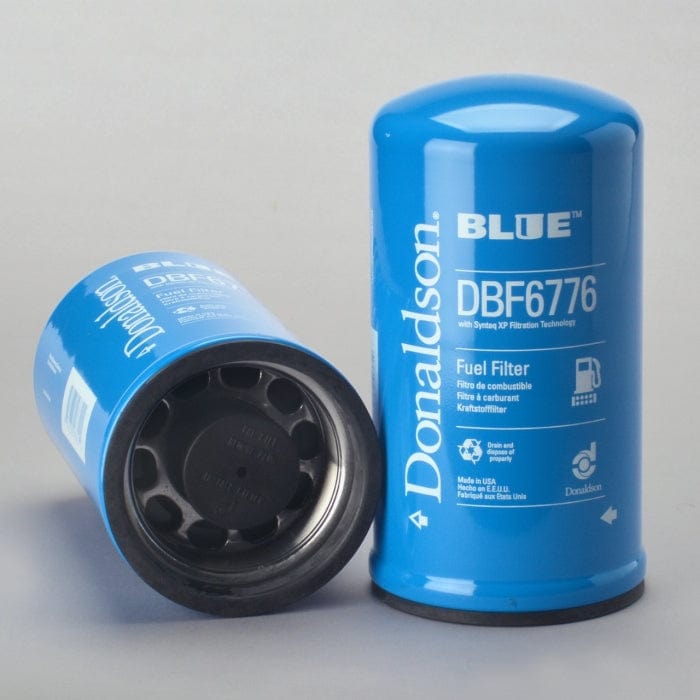

Fuel Filter, Spin-On Secondary Donaldson Blue - Donaldson DBF6776

Fuel Filter, Spin-On Secondary Donaldson Blue - Donaldson DBF6776

£69.92
£69.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson DBF6776

Fuel Filter, Spin-On Secondary Donaldson Blue
Outer Diameter 4.65 inch (118 mm)
Thread Size M90 x 2
Length 8.82 inch (224 mm)
Gasket OD 4.69 inch (119 mm)
Gasket ID 4.02 inch (102 mm)
Efficiency 99% 4 micron
Efficiency Test Std SAE J1985
Collapse Burst 149 psi (10.3 bar)
Type Secondary
Style Spin-On
Brand Donaldson BLUE®
Media Type Synteq XP
View full details

Specifications

Attributes

  • Outer Diameter: 118 mm (4.65 inch)
  • Thread Size: M90 x 2
  • Length: 224 mm (8.82 inch)
  • Gasket OD: 119 mm (4.69 inch)
  • Gasket ID: 102 mm (4.02 inch)
  • Efficiency 99%: 4 micron
  • Efficiency Test Std: SAE J1985
  • Collapse Burst: 10.3 bar (149 psi)
  • Type: Secondary
  • Style: Spin-On
  • Brand: Donaldson BLUE®
  • Media Type: Synteq XP

Packaged Dimensions

  • Packaged Length: 0.39 FT
  • Packaged Width: 0.39 FT
  • Packaged Height: 0.73 FT
  • Packaged Weight: 1.743 kg (3.84 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330986202

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CUMMINS 5599456
CUMMINS 5365988

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CUMMINS X15 - ENGINE - - X15 -
