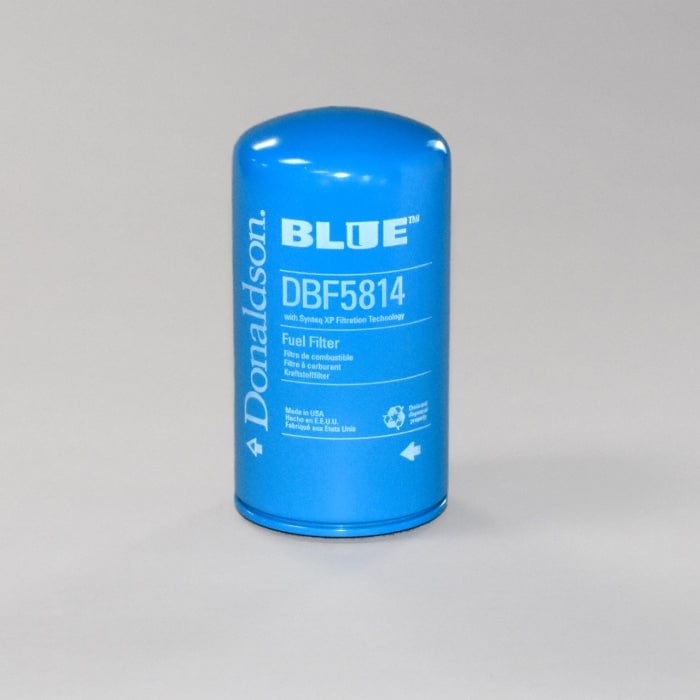

Donaldson DBF5814

Fuel Filter, Spin-On Secondary Donaldson Blue
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-14 UN
Length 6.85 inch (174 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99.9% 4 micron
Efficiency Test Std ISO 19438
Type Secondary
Style Spin-On
Brand Donaldson BLUE®
Media Type Synteq XP
Primary Application CATERPILLAR ENGINES
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 1-14 UN
  • Length: 174 mm (6.85 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99.9%: 4 micron
  • Efficiency Test Std: ISO 19438
  • Type: Secondary
  • Style: Spin-On
  • Brand: Donaldson BLUE®
  • Media Type: Synteq XP
  • Primary Application: CATERPILLAR ENGINES

Packaged Dimensions

  • Packaged Length: 0.094 m (3.75 inch)
  • Packaged Width: 0.094 m (3.75 inch)
  • Packaged Height: 0.175 m (7.00 inch)
  • Packaged Weight: 0.522 kg (1.15 lb)
  • Packaged Volume: 0.002 m3 (0.06 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330987414
