• Donaldson Fuel Filter, Spin-On - Donaldson P765199
1 1

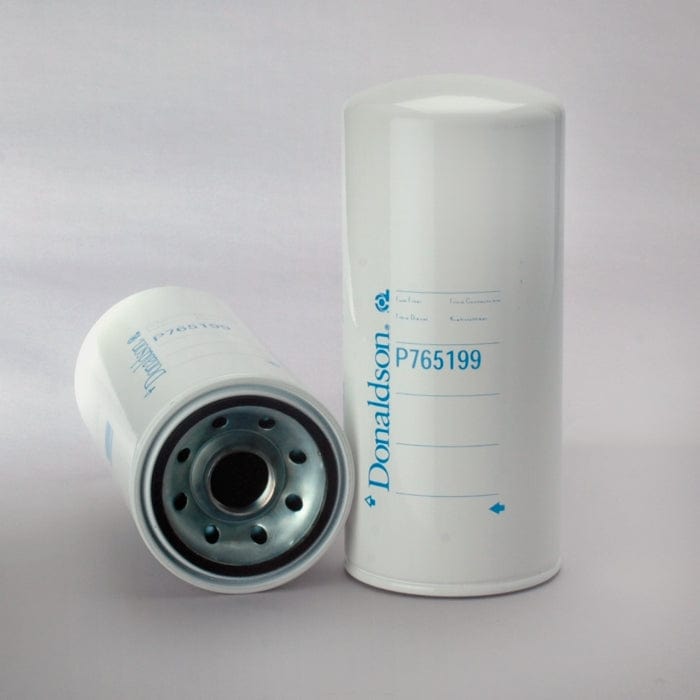

Fuel Filter, Spin-On - Donaldson P765199

Fuel Filter, Spin-On - Donaldson P765199

£68.86
£68.86
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P765199

Fuel Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 135.5 mm (5.33 inch)
  • Thread Size: M39 x 1.5
  • Length: 306 mm (12.05 inch)
  • Gasket OD: 110 mm (4.33 inch)
  • Gasket ID: 100 mm (3.94 inch)
  • Efficiency 99%: 10 micron
  • Efficiency Test Std: SAE J1985
  • Style: Spin-On
  • Media Type: Synthetic
  • Primary Application: MTU 0020922101

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.143 m (5.70 inch)
  • Packaged Height: 0.310 m (12.40 inch)
  • Packaged Weight: 2.384 kg (5.26 lb)
  • Packaged Volume: 0.007 m3 (0.24 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330186718

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MTU 0020922101
MTU 20922101

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
BELAZ 75137 - DUMP TRUCK 7513 SERIES MTU 16V4000 -
MTU 12V4000 - ENGINE - MTU 12V4000 -
MTU 16V4000 - ENGINE - MTU 16V4000 -
MTU 20V8000 - ENGINE - MTU 20V8000 -
