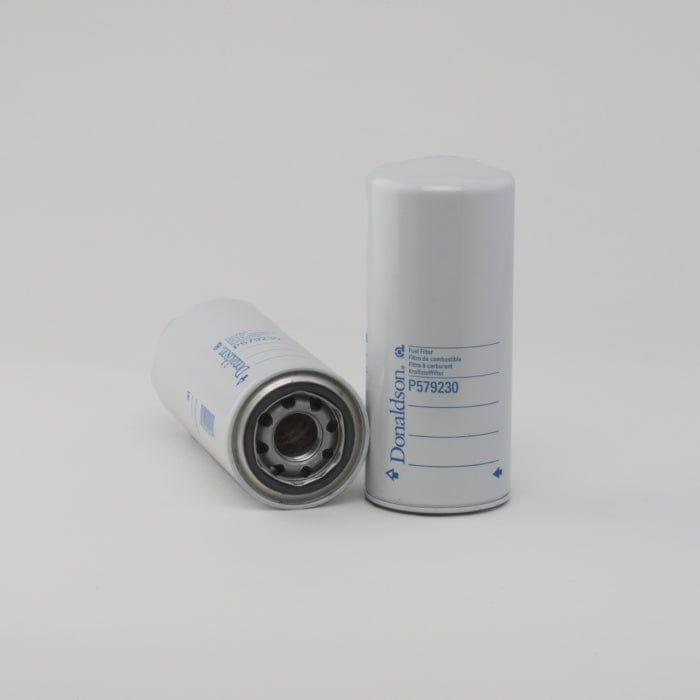

Fuel Filter, Spin-On - Donaldson P579230

Fuel Filter, Spin-On - Donaldson P579230

Regular price £21.27
Regular price Sale price £21.27
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P579230

Fuel Filter, Spin-On
Outer Diameter 3.69 inch (93.7 mm)
Thread Size 1 1/4-12 UN
Length 8.73 inch (221.76 mm)
Gasket OD 2.84 inch (72.13 mm)
Gasket ID 2.46 inch (62.48 mm)
Efficiency Beta 75 10 micron
Collapse Burst 87 psi (6 bar)
Style Spin-On
Primary Application EMD 40052587
View full details

Collapsible content

Specifications

Attributes

  • Outer Diameter: 93.7 mm (3.69 inch)
  • Thread Size: 1 1/4-12 UN
  • Length: 221.76 mm (8.73 inch)
  • Gasket OD: 72.13 mm (2.84 inch)
  • Gasket ID: 62.48 mm (2.46 inch)
  • Efficiency Beta 75: 10 micron
  • Collapse Burst: 6 bar (87 psi)
  • Style: Spin-On
  • Primary Application: EMD 40052587

Packaged Dimensions

  • Packaged Length: 0.118 m (4.70 inch)
  • Packaged Width: 0.115 m (4.60 inch)
  • Packaged Height: 0.238 m (9.50 inch)
  • Packaged Weight: 0.790 kg (1.74 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330229101

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CLARK FJ33S
EMD 40052587
