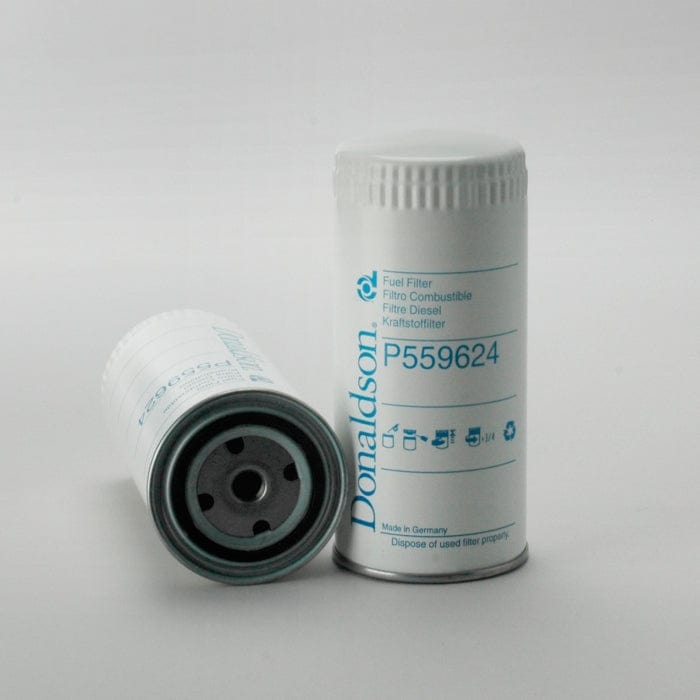

Fuel Filter, Spin-On - Donaldson P559624
Fuel Filter, Spin-On - Donaldson P559624
Regular price
£10.16
Regular price
Sale price
£10.16
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P559624
Fuel Filter, Spin-On| Outer Diameter | 3.78 inch (96 mm) |
| Thread Size | M16 x 1.5 |
| Length | 8.27 inch (210 mm) |
| Gasket OD | 2.80 inch (71 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 50% | 5 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Spin-On |
| Primary Application | DAF 247138 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 96 mm (3.78 inch)
- Thread Size: M16 x 1.5
- Length: 210 mm (8.27 inch)
- Gasket OD: 71 mm (2.80 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 50%: 5 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 6.9 bar (100 psi)
- Style: Spin-On
- Primary Application: DAF 247138
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.217 m (8.66 inch)
- Packaged Weight: 0.800 kg (1.76 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: Germany
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330047170
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCO | SP860 | |
| BAUDOUIN | 1505063 | |
| BAUDOUIN | 1505063OF | |
| BAUDOUIN | 5063OF | |
| BERGERAT MONNOYEUR | E6797 | |
| BOSCH-REXROTH | 451301002 | |
| BOSCH-REXROTH | 1457429676 | |
| BOSCH-REXROTH | 9455160326 | |
| BOSCH-REXROTH | N9676 | |
| CAV | 7176492 | |
| CAV | 7111492 | |
| CLAAS | 657288 | |
| CLAAS | 6572880 | |
| CLAAS | 6572881 | |
| CLEAN | DN297 | |
| COOPERS | Z103 | |
| COOPERS | 7004T | |
| COOPERS | AZF034 | |
| CROSLAND | 686 | |
| CUMMINS | 40307055 | |
| DAF | 0241505 | |
| DAF | 247138 | |
| DAF | 0247138 | |
| DAF | 404929 | |
| DAF | 482247138 | |
| DAF | 241805 | |
| DAF | 241505 | |
| DEUTZ | 04425014 | |
| FIAAM | FT4961 | |
| FIAT | 8106473 | |
| FILT | G1178EC | |
| FODEN | Y03722612 | |
| FORD | A830X9155LA | |
| FORD | 5011308 | |
| GENERAL ELECTRIC | SE429C4 | |
| GIF | GF264 | |
| GIF | GF204 | |
| GREYFRIARS | 802S | |
| GT PIECES ET SERVICES | 2241028 | |
| GUD | Z103 | |
| GUIOT | GF4107 | |
| HARMO | S878 | |
| HARMO | S824 | |
| HAVAM | HD0170 | |
| HITACHI | 8106473 | |
| JCB | 7114786 | |
| KNECHT | AW53 | |
| KNECHT | KC7 | |
| KNECHT | AWK53 | |
| KRALINATOR | F162 | |
| LEYLAND-DAF (LDV) | 17H9186 | |
| LEYLAND-DAF (LDV) | ABU8553 | |
| LOCKHEED | APF3198A | |
| LOCKHEED | LK3198 | |
| LOCKHEED | AP3198 | |
| MISFAT | 12430900 | |
| ORENSTEIN & KOPPEL | 102663 | |
| P.B.R. | BG1521 | |
| P.B.R. | BG1507 | |
| PERMATIC | GF264 | |
| POWER-PART | AM043901 | |
| PURFLUX | CS164 | |
| RENAULT VI | 6005019573 | |
| ROVER | ABU8553 | |
| ROVER | 17H9186 | |
| SAVARA | 92823517 | |
| SAVARA | 92168517 | |
| SAVARA | 92168511 | |
| SDMO | 330560195 | |
| SOPARIS | CVN9223 | |
| STEYR-DAIMLER-PUCH | 61500080135 | |
| TECALEMIT-TJ | FF5445 | |
| TECHNOCAR | RN118 | |
| TEHO | OK193 | |
| TEHO | 6193 | |
| TEREX | 102663 | |
| UNIPART | ABU8553 | |
| UNIPART | 17H9186 | |
| VMC | FF559624 | |
| WALGAHN-MOTORENTECHN | 811489 | |
| WALGAHN-MOTORENTECHN | 00811489 | |
| WFZ | 9025596240 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| BOVA FHD10-290 | 1982 | BUS | FUTURA | DAF DKV AT | - |
| BOVA FHD10-300 | 1982 | BUS | FUTURA | DAF WS222G | - |
| BOVA FHD12-290 | 1982 | BUS | FUTURA | DAF DKV AT | - |
| BOVA FHD12-360 | 1982 | BUS | FUTURA | DAF DKX Ati | - |
| BOVA FHD12-370 | 1982 | BUS | FUTURA | DAF WS268G | - |
| BOVA FVD12-270 | 1982 | BUS | FUTURA | DAF HS200G | - |
| CLAAS DOMINATOR 108SL | 1994 | COMBINE | 78S-118SL SERIES | MERCEDES-BENZ OM 366 LA | - |
| CLAAS DOMINATOR 108VX | - | COMBINE | VX SERIES | MERCEDES-BENZ OM 366 LA | - |
| CLAAS MEGA 208 | - | COMBINE | MEGA | MERCEDES-BENZ OM 366 LA | - |
| CLAAS MEGA 208 II | - | COMBINE | MEGA II | MERCEDES-BENZ OM 366 LA | - |
| DAF 75.240 ATI | 1992 | TRUCK | 75 SERIES | DAF RS180L | - |
| DAF 75.270 ATI | 1992 | TRUCK | 75 SERIES | DAF RS200L | - |
| DAF 75.300 ATI | 1992 | TRUCK | 75 SERIES | DAF RS222L | - |
| DAF 85.300 ATI | 1992 | TRUCK | 85 SERIES | DAF WS222L | - |
| DAF 85.330 ATI | 1992 | TRUCK | 85 SERIES | DAF WS242L | - |
| DAF 85.360 ATI | 1992 | TRUCK | 85 SERIES | DAF WS268L | - |
| DAF 85.400 ATI | 1995 | TRUCK | 85 SERIES | DAF WS295M ATI | - |
| DAF 95.300 ATI | 1992 | TRUCK | 95 SERIES | DAF WS222G | - |
| DAF 95.310 ATI | 1987 | TRUCK | 95 SERIES | DAF WS225 | - |
| DAF 95.330 ATI | 1990 | TRUCK | 95 SERIES | DAF WS242 | - |
| DAF 95.350 ATI | 1987 | TRUCK | 95 SERIES | DAF WS259 | - |
| DAF 95.360 ATI | 1987 | TRUCK | 95 SERIES | DAF WS270 | - |
| DAF 95.360 ATI | 1990 | TRUCK | 95 SERIES | DAF WS268 | - |
| DAF 95.380 ATI | 1987 | TRUCK | 95 SERIES | DAF WS282L | - |
| DAF 95.400 ATI | 1990 | TRUCK | 95 SERIES | DAF WS295 | - |
| DAF 95.430 ATI | 1992 | TRUCK | 95 SERIES | DAF WS315G | - |
| DAF F1100DNTD | 1986 | TRUCK | F1100 SERIES | DAF DNTD620 | - |
| DAF F1300DNT | 1986 | TRUCK | F1300 SERIES | DAF DNT620 | - |
| DAF F1300DNTD | 1986 | TRUCK | F1300 SERIES | DAF DNTD620 | - |
| DAF F2100DHT | 1981 | TRUCK | F2100 SERIES | DAF DHT825 | - |
| DAF F2100DHTD | 1981 | TRUCK | F2100 SERIES | DAF DHTD825 | - |
| DAF F2103DH | 1982 | TRUCK | F2100 SERIES | DAF DH825 | - |
| DAF F2103DHR | 1982 | TRUCK | F2100 SERIES | DAF DHR825 | - |
| DAF F2105DHT | 1987 | TRUCK | F2100 SERIES | DAF DHT825 | - |
| DAF F2105DHTD | 1987 | TRUCK | F2100 SERIES | DAF DHTD825 | - |
| DAF F2300DHT | 1981 | TRUCK | F2300 SERIES | DAF DHT825 | - |
| DAF F2300HT | 1990 | TRUCK | F2300 SERIES | DAF HT168 | - |
| DAF F2303DHU | 1981 | TRUCK | F2300 SERIES | DAF DHU825 | - |
| DAF F2500DHS | 1982 | TRUCK | F2500 SERIES | DAF DHS825 | - |
| DAF F2505DHS | 1982 | TRUCK | F2500 SERIES | DAF DHS825 | - |
| DAF F2525DHS | 1982 | TRUCK | F2500 SERIES | DAF DHS825 | - |
| DAF F2535DHS | 1982 | TRUCK | F2500 SERIES | DAF DHS825 | - |
| DAF F2700HS ATI | 1990 | TRUCK | F2700 SERIES | DAF HS200 | - |
| DAF F2800DKSE | 1980 | TRUCK | F2800 SERIES | DAF DKS1160E | - |
| DAF F2800DKV | 1983 | TRUCK | F2800 SERIES | DAF DKV1160 | - |
| DAF F2800DKXE ATI | 1985 | TRUCK | F2800 SERIES | DAF DKXE1160 ATI | - |
| DAF F2805DKSE | 1980 | TRUCK | F2800 SERIES | DAF DKS1160E | - |
| DAF F2900KV ATI | 1990 | TRUCK | F2900 SERIES | DAF KV212 | - |
| DAF F3200KS ATI | 1990 | TRUCK | F3200 SERIES | DAF KS238 | - |
| DAF F3300DKV | 1983 | TRUCK | F3300 SERIES | DAF DKV1160 | - |
| DAF F3300DKX | 1981 | TRUCK | F3300 SERIES | DAF DKX1160 | - |
| DAF F3300DKX ATI | 1985 | TRUCK | F3300 SERIES | DAF DKX1160 ATI | - |
| DAF F3305DKX | 1981 | TRUCK | F3300 SERIES | DAF DKX1160 | - |
| DAF F3325DKX | 1981 | TRUCK | F3300 SERIES | DAF DKX1160 | - |
| DAF F3325DKX ATI | 1985 | TRUCK | F3300 SERIES | DAF DKX1160 ATI | - |
| DAF F3600DKZ ATI | 1985 | TRUCK | F3600 SERIES | DAF DKZ1160 ATI | - |
| DAF FA1700DNS | 1988 | TRUCK | F1700 SERIES | DAF DNS620 | - |
| DAF FA1700DNT | 1986 | TRUCK | F1700 SERIES | DAF DNT620 | - |
| DAF FA1700DNTD | 1986 | TRUCK | F1700 SERIES | DAF DNTD620 | - |
| DAF FA1900DNS | 1986 | TRUCK | F1900 SERIES | DAF DNS620 | - |
| DAF FA1900DNT | 1986 | TRUCK | F1900 SERIES | DAF DNT620 | - |
| DAF N2826DKA | 1980 | TRUCK | N2800 SERIES | DAF DKA1160 | - |
| DAF N2826DKS | 1981 | TRUCK | N2800 SERIES | DAF DKS1160 | - |
| DAF N2826DKTD | 1982 | TRUCK | N2800 SERIES | DAF DKTD1160 | - |
| DAF NAT3326 DKX | 1981 | TRUCK | N3300 SERIES | DAF DKX1160 | - |
| IKARUS 256.70 | - | BUS | 200 SERIES | CUMMINS LT210 | - |
| LEYLAND CONSTRUCTOR | 1985 | TRUCK | - | DAF 8.25 | - |
| LEYLAND FT95 | 1987 | TRUCK | - | DAF WS259 ATI | - |
| LEYLAND FT95 | 1987 | TRUCK | - | DAF WS225 ATI | - |
| LEYLAND FT95 | 1987 | TRUCK | - | DAF WS282 ATI | - |
| LEYLAND-DAF (LDV) 70.230 | 1990 | TRUCK | 70 SERIES | DAF HT | - |
| LEYLAND-DAF (LDV) 80.330 | 1990 | TRUCK | 80 SERIES | DAF 80.330 | - |
| LEYLAND-DAF (LDV) 95.310 | 1989 | TRUCK | - | DAF WS225 ATI | - |
| LEYLAND-DAF (LDV) 95.350 | 1989 | TRUCK | - | DAF WS259 ATI | - |
| LEYLAND-DAF (LDV) 95.380 | 1989 | TRUCK | - | DAF WS282 ATI | - |
| LEYLAND-DAF (LDV) 95.400 | 1989 | TRUCK | - | DAF WS295 ATI | - |
| NEOPLAN N122 | - | BUS | - | DAF DS11 | - |
| NEOPLAN N316 H | - | BUS | TRANSLINER | DAF DKV1160 | - |
| NEOPLAN N416 SL | - | BUS | N SERIES | DAF DKFL1160 | - |
| NEW HOLLAND 1800 | - | TRACTOR | - | DAF DHT825 | - |
| NEW HOLLAND 1905 | - | TRACTOR | - | DAF 1160 | - |
