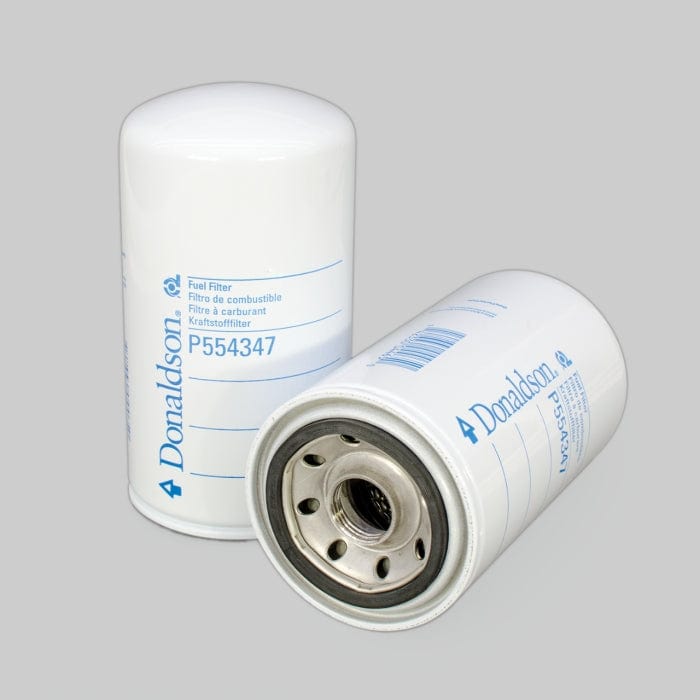

Fuel Filter, Spin-On - Donaldson P554347

Fuel Filter, Spin-On - Donaldson P554347

£10.52
£10.52
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P554347

Fuel Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 1-12 UN
  • Length: 174 mm (6.85 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 25 micron
  • Efficiency Test Std: SAE J905
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Spin-On
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.093 m (3.70 inch)
  • Packaged Width: 0.093 m (3.70 inch)
  • Packaged Height: 0.169 m (6.75 inch)
  • Packaged Weight: 0.554 kg (1.22 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330044650

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ALLISON MJGOEM1
AMERICAN MOTORS CORPORATION SFF4347
AMERICAN MOTORS CORPORATION EMD8423132
AMERICAN PARTS 96347
BIG A 96347
CATERPILLAR 3I1294
CHAMP FF2
CLARK FJ2S
CLARK,J.L. FJ2S
COOP FF16017D
COOP FF167D
COOPERS FSM4035
CROSLAND 693
CYCLONE FF167D
DELUXE 621
DELUXE WD621
EMD 8423132
EMD EMD8423132
ERF (E.R.F.) 8423132
EUCLID 7952104
EXMAN SFF4347
FREIGHTLINER DNP554347
GUD Z59
KRALINATOR F78
MARINE PERFORMANCE MPL408
P.B.R. BG1532
SEARS DT9
TAYLOR 1006539
TFMC T50474
UNITED CENTRAL INDUSTRIAL SUPP 688848
VMC FF554347
VME 7952104
VOLVO 7952104
VOLVO 795210
WABCO PB0704
WALGAHN-MOTORENTECHN 00811417
WALGAHN-MOTORENTECHN 811417

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
VOLVO CONSTRUCTION EQUIPMENT A20 - DUMP TRUCK ARTICULATED A SERIES VOLVO TD710 -
VOLVO CONSTRUCTION EQUIPMENT A20C - DUMP TRUCK ARTICULATED A SERIES VOLVO TAD73E -
VOLVO CONSTRUCTION EQUIPMENT A25C - DUMP TRUCK ARTICULATED A SERIES VOLVO TAD73ES -
VOLVO CONSTRUCTION EQUIPMENT L120C - LOADER WHEELED L SERIES VOLVO TAD73E -
VOLVO CONSTRUCTION EQUIPMENT L90C - LOADER WHEELED L SERIES VOLVO TD63E -
