• Donaldson Fuel Filter, Spin-On - Donaldson P554000
1 1

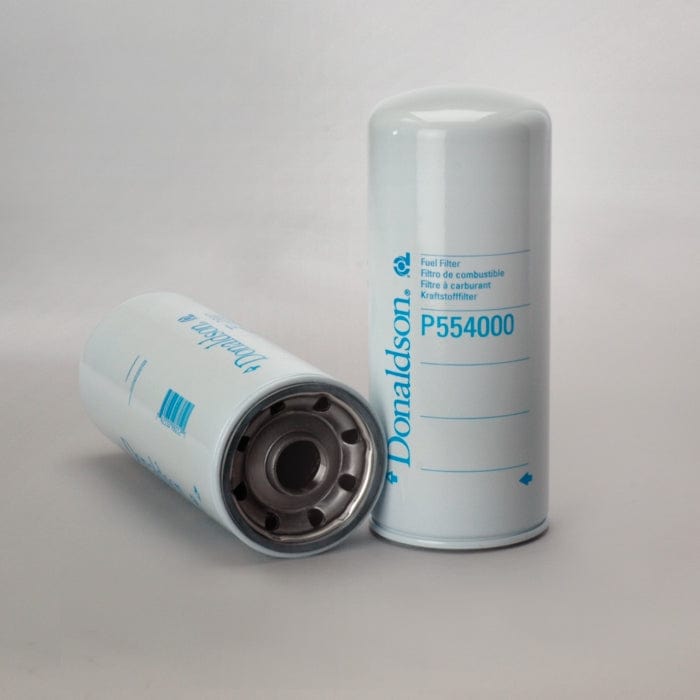

Fuel Filter, Spin-On - Donaldson P554000

Fuel Filter, Spin-On - Donaldson P554000

£36.85
£36.85
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P554000

Fuel Filter, Spin-On
Outer Diameter 4.45 inch (113 mm)
Thread Size M32 x 1.5
Length 10.31 inch (262 mm)
Gasket OD 3.90 inch (99 mm)
Gasket ID 3.56 inch (90.3 mm)
Efficiency 99% 5 micron
Efficiency Test Std SAE J1985
Style Spin-On
Media Type Composite
Primary Application MANN & HUMMEL WDK1110210
View full details

Specifications

Attributes

  • Outer Diameter: 113 mm (4.45 inch)
  • Thread Size: M32 x 1.5
  • Length: 262 mm (10.31 inch)
  • Gasket OD: 99 mm (3.90 inch)
  • Gasket ID: 90.3 mm (3.56 inch)
  • Efficiency 99%: 5 micron
  • Efficiency Test Std: SAE J1985
  • Style: Spin-On
  • Media Type: Composite
  • Primary Application: MANN & HUMMEL WDK1110210

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.255 m (10.20 inch)
  • Packaged Weight: 1.137 kg (2.51 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069095-02
  • HTS Code: 8421230090
  • UPC Code: 742330980521

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MAN 51125030071
MTU 40203136
MTU X57508300091
MTU X00042421
SDMO 330510035
SDMO FG0708

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
MTU 10V2000 - ENGINE - - 10V2000 -
MTU 16V4000 - ENGINE - MTU 16V4000 -
MTU 20V4000 - ENGINE - - 20V4000 -
MTU 8V2000 - ENGINE - - 8V2000 -
