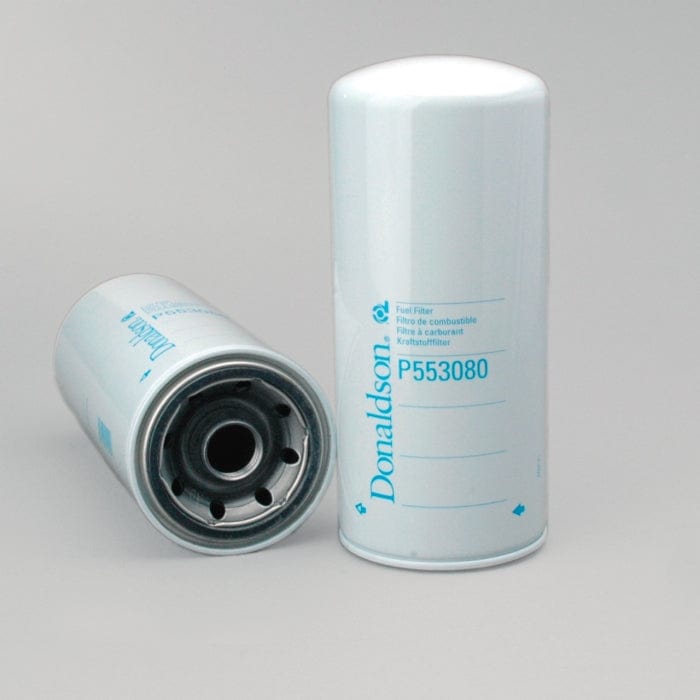

Fuel Filter, Spin-On - Donaldson P553080
Fuel Filter, Spin-On - Donaldson P553080
Regular price
£28.74
Regular price
Sale price
£28.74
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P553080
Fuel Filter, Spin-OnShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 135.2 mm (5.32 inch)
- Thread Size: 1 3/8-16 UN
- Length: 308 mm (12.13 inch)
- Gasket OD: 110.5 mm (4.35 inch)
- Gasket ID: 100.3 mm (3.95 inch)
- Efficiency 99%: 9 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 95 Percent
- Collapse Burst: 5.2 bar (75 psi)
- Type: Primary
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: CATERPILLAR 8N3080
Packaged Dimensions
- Packaged Length: 0.132 m (5.28 inch)
- Packaged Width: 0.132 m (5.28 inch)
- Packaged Height: 0.306 m (12.24 inch)
- Packaged Weight: 1.855 kg (4.09 lb)
- Packaged Volume: 0.006 m3 (0.20 ft3)
Other Information
- Country of Origin: Poland
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330044292
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP1249 | |
| AMERICAN PARTS | 95385 | |
| BIG A | 95385 | |
| CASE/CASE IH | E7HN9N327AA | |
| CATERPILLAR | 8N3080 | |
| CATERPILLAR | 1R0715 | |
| FIAT | E7HN9N327AA | |
| FORD | 1R0715 | |
| FORD | 9576P553080 | |
| INGERSOLL RAND | 51305864 | |
| KOMATSU | F5132PP | |
| LOESING | 025103 | |
| LOESING | 25103 | |
| NEW HOLLAND | E7HN9N327AA | |
| TIM | 8N3080 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 88752 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688752 | |
| VMC | FF553080 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 3512 | - | ENGINE | - | - 3512 | - |
| CATERPILLAR 3512B | - | ENGINE | - | - 3512B | - |
| CATERPILLAR 3516B | - | ENGINE | - | CATERPILLAR 3516B | - |
| CATERPILLAR 5230 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 777B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR 777C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR 789B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 793 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TA | - |
| CATERPILLAR 793B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR D11N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3508 | - |
| FORD CL-9000 | - | TRUCK | - | CATERPILLAR 3512 | - |
| FORD CLT-9000 | - | TRUCK | - | CATERPILLAR 3512 | - |
| FORD WT-9000 | - | TRUCK | - | CATERPILLAR 3512 | - |
