• Donaldson Fuel Filter, Spin-On - Donaldson P553004
1 1

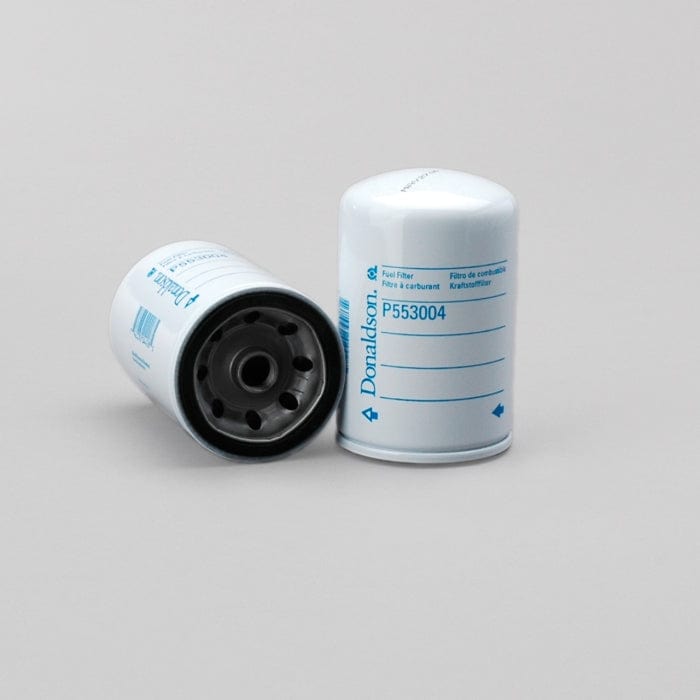

Fuel Filter, Spin-On - Donaldson P553004

Fuel Filter, Spin-On - Donaldson P553004

£7.34
£7.34
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P553004

Fuel Filter, Spin-On
Stand Pipe Yes Y/N
Outer Diameter 3.04 inch (77.2 mm)
Thread Size M16 x 1.5
Length 4.72 inch (120 mm)
Gasket OD 2.76 inch (70.2 mm)
Gasket ID 2.38 inch (60.5 mm)
Efficiency 99% 16 micron
Efficiency Test Std SAE J1985
Collapse Burst 100 psi (6.9 bar)
Style Spin-On
Media Type Cellulose
Primary Application VOLVO 243004
View full details

Specifications

Attributes

  • Stand Pipe: Yes Y/N
  • Outer Diameter: 77.2 mm (3.04 inch)
  • Thread Size: M16 x 1.5
  • Length: 120 mm (4.72 inch)
  • Gasket OD: 70.2 mm (2.76 inch)
  • Gasket ID: 60.5 mm (2.38 inch)
  • Efficiency 99%: 16 micron
  • Efficiency Test Std: SAE J1985
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Spin-On
  • Media Type: Cellulose
  • Primary Application: VOLVO 243004

Packaged Dimensions

  • Packaged Length: 0.078 m (3.10 inch)
  • Packaged Width: 0.076 m (3.05 inch)
  • Packaged Height: 0.130 m (5.20 inch)
  • Packaged Weight: 0.388 kg (0.86 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: Colombia
  • NMFC Code: 069100-11
  • HTS Code: 8421230090
  • UPC Code: 742330044285
