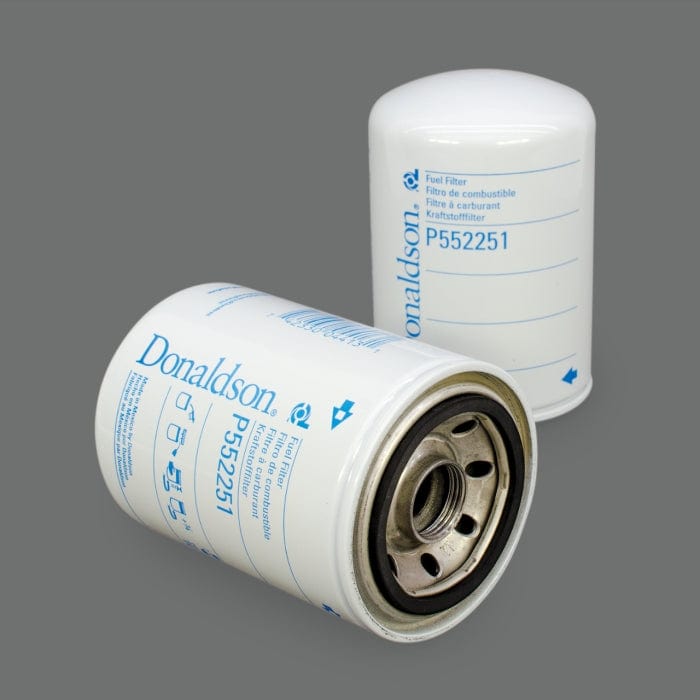

Fuel Filter, Spin-On - Donaldson P552251
Fuel Filter, Spin-On - Donaldson P552251
Regular price
£10.61
Regular price
Sale price
£10.61
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P552251
Fuel Filter, Spin-On| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-14 UN |
| Length | 5.35 inch (136 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 17 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | CASE/CASE IH 702250C1 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-14 UN
- Length: 136 mm (5.35 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 17 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 6.9 bar (100 psi)
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: CASE/CASE IH 702250C1
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.138 m (5.51 inch)
- Packaged Weight: 0.463 kg (1.02 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330044131
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP1290 | |
| AC DELCO | TP807 | |
| AG CHEM EQUIPMENT | 702250C1 | |
| ALLIS-CHALMERS | 4006995 | |
| AMERICAN PARTS | 573 | |
| AMERICAN PARTS | 540 | |
| AMERICAN PARTS | 538 | |
| ASAHI | HF657 | |
| BIG A | 95239 | |
| CASE/CASE IH | A184772 | |
| CASE/CASE IH | 70225C1 | |
| CASE/CASE IH | 625625C1 | |
| CASE/CASE IH | 625626C1 | |
| CASE/CASE IH | 702250C1 | |
| CATERPILLAR | 9Y4439 | |
| CATERPILLAR | 9Y4424 | |
| CATERPILLAR | 3I1255 | |
| CATERPILLAR | 3I1256 | |
| CATERPILLAR | 7E9763 | |
| COOPERS | FSM4024 | |
| CROSLAND | 9360 | |
| DELUXE | 362 | |
| DELUXE | WD362 | |
| DRESSER | 702250C1 | |
| DRESSER | 625626C1 | |
| DRESSER | 625625C1 | |
| FIAT | 74006995 | |
| FORD | 9576P552251 | |
| FREIGHTLINER | DNP552251 | |
| GREYFRIARS | 812S | |
| GUARDIAN | G033239 | |
| HINO | 234011651 | |
| HINO | 234011650 | |
| HINO | S234011650 | |
| HINO | 234011580 | |
| HINO | S234011651 | |
| HINO | 234011321 | |
| HINO | 234011283 | |
| HINO | 234011282 | |
| HINO | 234011284 | |
| HINO | 234011241 | |
| HINO | 234011240 | |
| HINO | S234011222 | |
| HINO | S234011580 | |
| HINO | 234011241A | |
| HINO | 234011200 | |
| HINO | 234011228 | |
| HINO | 234011221 | |
| HINO | 234011280 | |
| HINO | 234011281 | |
| HINO | 235021010 | |
| HINO | 235011010A | |
| HINO | 235011010 | |
| HITACHI | 4448736 | |
| HITACHI | H3256260300 | |
| INTERNATIONAL | 625625C1 | |
| INTERNATIONAL | 402255C1 | |
| INTERNATIONAL | 703421C1 | |
| INTERNATIONAL | 702250C1 | |
| KOBELCO | VHS234011640 | |
| KOHLER | GM13947 | |
| KOMATSU | 625625C1 | |
| KOMATSU | 3816256261 | |
| KOMATSU | 702143C1 | |
| KRALINATOR | F161A | |
| KRALINATOR | F161 | |
| KUBOTA | J30143170 | |
| KUBOTA | K1J30143170 | |
| LOCKHEED | APF3235A | |
| MITSUBISHI | 3256260300 | |
| MITSUBISHI | 3256260300E | |
| NISSAN/UD TRUCKS | 16403NY001 | |
| NISSAN/UD TRUCKS | 1640399013 | |
| NISSAN/UD TRUCKS | BF40399013 | |
| NISSAN/UD TRUCKS | AY500HD502 | |
| PRO MATCH | 9Y4424 | |
| PRO MATCH | 9Y4439 | |
| SANY | 60206775 | |
| SAVARA | 92820117 | |
| TAKEUCHI | K1J30143170 | |
| TAKEUCHI | J30143170 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688712 | |
| VIC | FC608 | |
| VMC | FF550683 | |
| VMC | FF552251 | |
| VOLVO | 3831484 | |
| WHITE | 400002508 |
