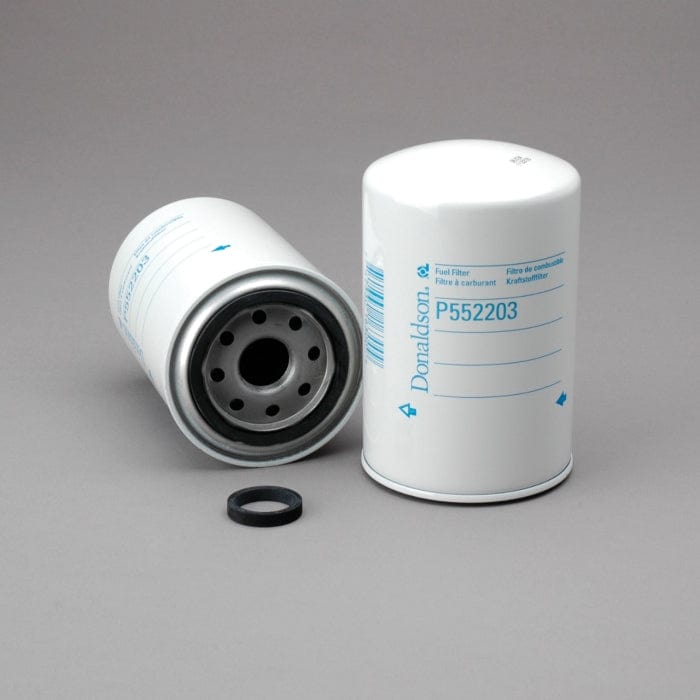

Fuel Filter, Spin-On - Donaldson P552203
Fuel Filter, Spin-On - Donaldson P552203
Regular price
£20.19
Regular price
Sale price
£20.19
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P552203
Fuel Filter, Spin-On| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-14 UN |
| Length | 5.35 inch (136 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 95% | 140 micron |
| Efficiency Test Std | SAE J1985 |
| Style | Spin-On |
| Media Type | Wire Mesh |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-14 UN
- Length: 136 mm (5.35 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 95%: 140 micron
- Efficiency Test Std: SAE J1985
- Style: Spin-On
- Media Type: Wire Mesh
Packaged Dimensions
- Packaged Length: 0.361 m (14.45 inch)
- Packaged Width: 0.071 m (2.85 inch)
- Packaged Height: 0.139 m (5.55 inch)
- Packaged Weight: 0.465 kg (1.03 lb)
- Packaged Volume: 0.005 m3 (0.18 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330163009
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CUMMINS | 4010476 | |
| MACK | 2191P552203 | |
| VMC | FF552203 | |
| VOLVO | 85114079 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CUMMINS ISM | - | ENGINE | - | - ISM | - |
| CUMMINS ISX11.9 | - | ENGINE | - | - ISX11.9 | - |
| CUMMINS ISX15 | - | ENGINE | TIER 4 | - ISX15 | - |
| FREIGHTLINER CASCADIA | - | TRUCK | - | CUMMINS ISX15 | - |
| FREIGHTLINER M2 | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 9200I | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 9200I | - | TRUCK | - | CUMMINS ISX | - |
| INTERNATIONAL 9400I | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 9400I | - | TRUCK | - | CUMMINS ISX | - |
| INTERNATIONAL 9800 | - | TRUCK | - | CUMMINS ISX500 | - |
| INTERNATIONAL 9900I | - | TRUCK | - | CUMMINS ISX15 | - |
| INTERNATIONAL 9900IX | - | TRUCK | - | CUMMINS N14 | - |
| INTERNATIONAL DURASTAR 4400 | - | FIRE TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL PAYSTAR 5500I | - | TRUCK | - | CUMMINS ISX | - |
| INTERNATIONAL PAYSTAR 5600I | - | TRUCK | - | CUMMINS ISX | - |
| INTERNATIONAL PROSTAR | - | TRUCK | - | CUMMINS ISX | - |
| INTERNATIONAL PROSTAR | - | TRUCK | - | CUMMINS ISX15-450 | - |
| INTERNATIONAL PROSTAR | - | TRUCK | - | CUMMINS ISX15-500 | - |
| KENWORTH C500 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T2000 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T600 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T660 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T6600 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T700 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T800B | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T800W | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH W900 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH W900B | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH W900L | - | TRUCK | - | CUMMINS ISX | - |
| PETERBILT 367 | - | TRUCK | - | CUMMINS ISX | - |
| PETERBILT 379 | - | TRUCK | - | CUMMINS ISX | - |
| PETERBILT 379X | - | TRUCK | - | CUMMINS ISX | - |
| PETERBILT 386 | - | TRUCK | - | CUMMINS ISX | - |
| PETERBILT 387 | - | TRUCK | - | CUMMINS ISX | - |
| PETERBILT 388 | - | TRUCK | - | CUMMINS ISX | - |
| PETERBILT 389 | - | TRUCK | - | CUMMINS ISX | - |
| STERLING ACTERRA 8500 | - | TRUCK | - | CUMMINS ISB | - |
| VOLVO VN | - | TRUCK | VN SERIES | CUMMINS ISX | - |
