• Donaldson Fuel Filter, Spin-On - Donaldson P551712
1 1

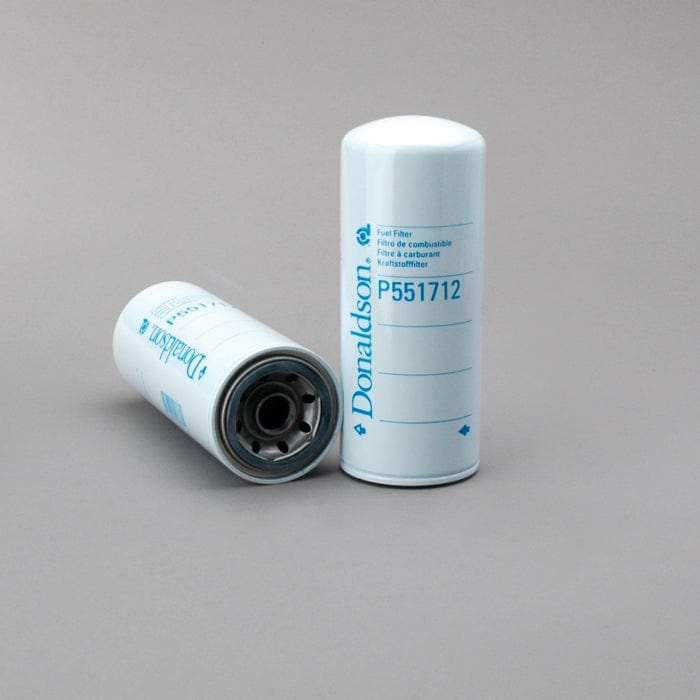

Fuel Filter, Spin-On - Donaldson P551712

Fuel Filter, Spin-On - Donaldson P551712

£15.15
£15.15
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551712

Fuel Filter, Spin-On
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-14 UN
Length 9.17 inch (232.8 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 9 micron
Efficiency Test Std SAE J1985
Collapse Burst 100 psi (6.9 bar)
Style Spin-On
Media Type Cellulose
Primary Application CATERPILLAR 1R0712
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 1-14 UN
  • Length: 232.8 mm (9.17 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 9 micron
  • Efficiency Test Std: SAE J1985
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Spin-On
  • Media Type: Cellulose
  • Primary Application: CATERPILLAR 1R0712

Packaged Dimensions

  • Packaged Length: 0.090 m (3.60 inch)
  • Packaged Width: 0.090 m (3.60 inch)
  • Packaged Height: 0.228 m (9.10 inch)
  • Packaged Weight: 0.713 kg (1.57 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Poland
  • NMFC Code: 069095-02
  • HTS Code: 8421230090
  • UPC Code: 742330043882

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN MOTORS CORPORATION SFF0712
AMERICAN MOTORS CORPORATION WK111025
AMERICAN PARTS 95374
BIG A 95374
CARBOCOL 756908
CASE/CASE IH 73327627
CATERPILLAR 1R0712
CATERPILLAR 3I1333
CATERPILLAR 3I0752
CATERPILLAR 1R1712
CHINA LOCAL STCX774
EXMAN SFF0712
EXMAN WK111025
FREIGHTLINER DNP551712
JLG 7041499
KRALINATOR F198R
LOESING 25121
LOESING 025121
STEWART & STEVENSON 352666
TODD GT 2241119
UNITED CENTRAL INDUSTRIAL SUPP 74028
UNITED CENTRAL INDUSTRIAL SUPP 374028
VERMEER 121471001
VERMEER 121491011
VMC FF551712
VOLVO 85114088
WIRTGEN 71485
YANMAR 42430550060
