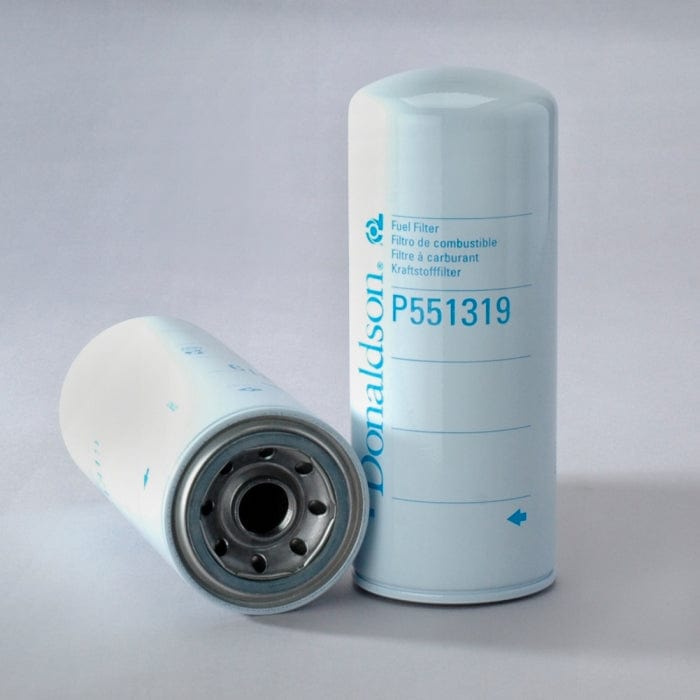

Fuel Filter, Spin-On - Donaldson P551319

Fuel Filter, Spin-On - Donaldson P551319

£17.19
£17.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551319

Fuel Filter, Spin-On
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-14 UN
Length 9.17 inch (233 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 4 micron
Efficiency Test Std SAE J1985
Type Secondary
Style Spin-On
Media Type Cellulose, Meltblown
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 1-14 UN
  • Length: 233 mm (9.17 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 4 micron
  • Efficiency Test Std: SAE J1985
  • Type: Secondary
  • Style: Spin-On
  • Media Type: Cellulose
  • Meltblown:

Packaged Dimensions

  • Packaged Length: 0.31 FT
  • Packaged Width: 0.31 FT
  • Packaged Height: 0.77 FT
  • Packaged Weight: 0.704 kg (1.55 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330202036

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AGCO 715132 High Capacity
AMERICAN PARTS 95674 High Capacity
ATLAS COPCO 57294829
AVELING-BARFORD ABP3005137 High Capacity
BIG A 95674 High Capacity
CAMECO 61373891 High Capacity
FG WILSON 924018 High Capacity
INGERSOLL RAND 57294829 High Capacity
INGERSOLL RAND 35362243 High Capacity
KRALINATOR F298R High Capacity
LOESING 25089
LOESING 025133 High Capacity
MACK 2191P551311 High Capacity
MORBARK 29245971 High Capacity
TAMROCK 88661849 High Capacity
TAMROCK 019854051 High Capacity
VMC FF551311 High Capacity
VOLVO 85114045 High Capacity
WIRTGEN 119391 High Capacity

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
ATLAS COPCO DM45 - DRILLING EQUIPMENT - CATERPILLAR C18 -
WIRTGEN W 2000 1999 MILLING EQUIPMENT W SERIES CATERPILLAR C15 ATAAC -
WIRTGEN W 2100 2004 MILLING EQUIPMENT W SERIES CATERPILLAR C18 ATAAC -
WIRTGEN W 220 2012 MILLING EQUIPMENT W SERIES CATERPILLAR C18 ATAAC -
WIRTGEN W 2200 2010 MILLING EQUIPMENT W SERIES CATERPILLAR C27 ATAAC -
WIRTGEN WR 250 2013 ROAD STABILIZER WR SERIES CATERPILLAR C18 ATAAC -
