• Donaldson Fuel Filter, Spin-On - Donaldson P550678
1 1

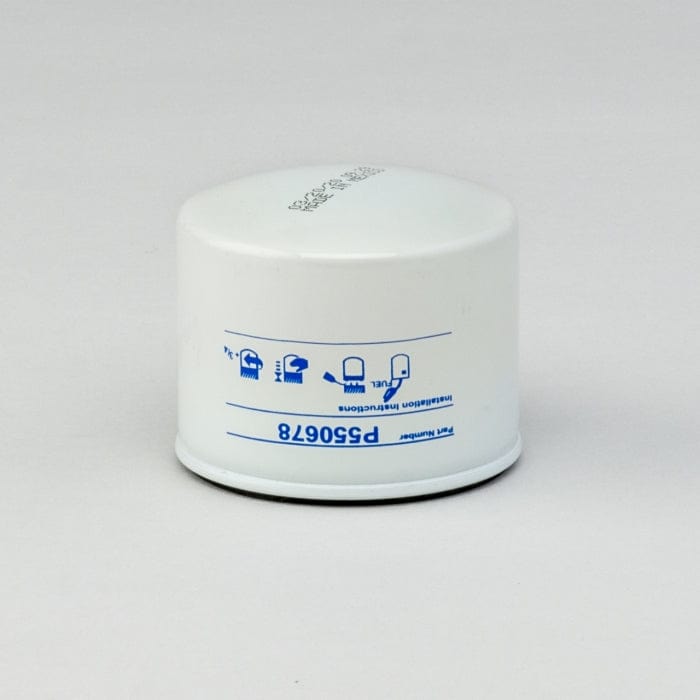

Fuel Filter, Spin-On - Donaldson P550678

Fuel Filter, Spin-On - Donaldson P550678

£15.00
£15.00
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550678

Fuel Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 77.5 mm (3.05 inch)
  • Thread Size: M16 x 1.5
  • Length: 65 mm (2.56 inch)
  • Gasket OD: 72.1 mm (2.84 inch)
  • Gasket ID: 62.7 mm (2.47 inch)
  • Efficiency 99%: 25 micron
  • Efficiency Test Std: SAE J1985
  • Collapse Burst: 5.2 bar (75 psi)
  • Style: Spin-On
  • Primary Application: FORD E6HZ9365B

Packaged Dimensions

  • Packaged Length: 0.079 m (3.15 inch)
  • Packaged Width: 0.079 m (3.15 inch)
  • Packaged Height: 0.069 m (2.76 inch)
  • Packaged Weight: 0.257 kg (0.57 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330042786

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO TP1247
CASE/CASE IH E6HZ9365B
CATERPILLAR 813242
FIAT E6HZ9365B
FORD E6HZ9362B
FORD E6HZ9365B
JLG 7024228
NEW HOLLAND E6HZ9365B
RUGGERINI 17523
RUGGERINI 17520
VERMEER 902190009
VMC FF550678

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
AMERICAN AUGERS 24-150 - DRILLING EQUIPMENT - DEUTZ F3L1011 -
GMC TOPKICK - TRUCK - - TOPKICK -
GMC TOPKICK - TRUCK - GMC 6.6L L6 -
JLG 600A NARROW - BOOM LIFT - DEUTZ F4M1011 -
JLG 600AJN NARROW - BOOM LIFT - DEUTZ F4M1011 -
JLG 600SC - BOOM LIFT - DEUTZ F4M1011 -
KAESER MOBILAIR M25 - COMPRESSOR - KUBOTA - -
