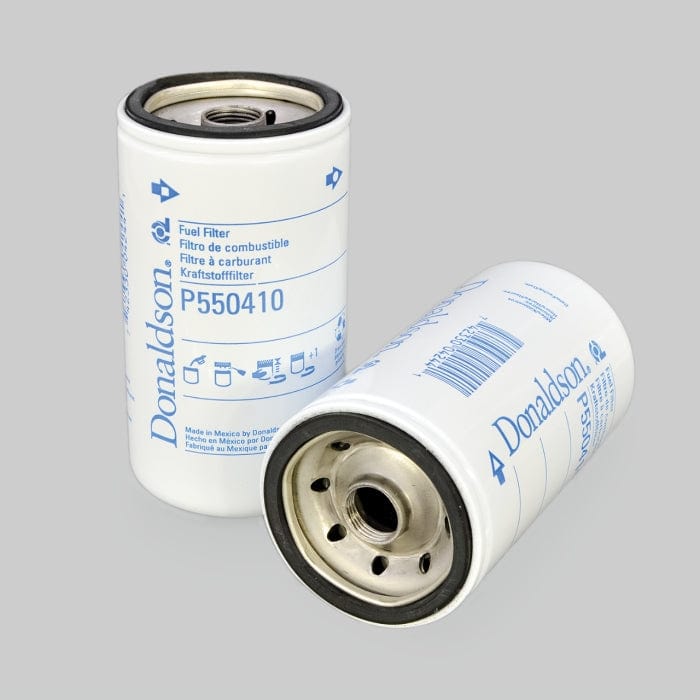

Fuel Filter, Spin-On - Donaldson P550410
Fuel Filter, Spin-On - Donaldson P550410
Regular price
£10.15
Regular price
Sale price
£10.15
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550410
Fuel Filter, Spin-On| Outer Diameter | 3.02 inch (76.8 mm) |
| Thread Size | 3/4-16 UN |
| Length | 5.71 inch (145 mm) |
| Gasket OD | 2.76 inch (70.2 mm) |
| Gasket ID | 2.38 inch (60.5 mm) |
| Efficiency 99% | 17 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | KOMATSU 6003118220 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 76.8 mm (3.02 inch)
- Thread Size: 3/4-16 UN
- Length: 145 mm (5.71 inch)
- Gasket OD: 70.2 mm (2.76 inch)
- Gasket ID: 60.5 mm (2.38 inch)
- Efficiency 99%: 17 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 6.9 bar (100 psi)
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: KOMATSU 6003118220
Packaged Dimensions
- Packaged Length: 0.104 m (4.15 inch)
- Packaged Width: 0.076 m (3.05 inch)
- Packaged Height: 0.146 m (5.85 inch)
- Packaged Weight: 0.386 kg (0.85 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 121510
- HTS Code: 8421230090
- UPC Code: 742330042441
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | LK3649 | |
| A P PARTS | AP3649 | |
| AC DELCO | TP992 | |
| AC DELCO | TP1062 | |
| ALCOA MARINE | KF1552 | |
| ALL-O-MATIC | 73013 | |
| ALSTHOM | 73013 | |
| AMERICAN MOTORS CORPORATION | SFS3020 | |
| AMERICAN MOTORS CORPORATION | KF1552 | |
| AMERICAN MOTORS CORPORATION | FI18040 | |
| AMERICAN MOTORS CORPORATION | FC22010 | |
| AMERICAN PARTS | 95398 | |
| AMERICAN PARTS | 95520 | |
| ASAHI | KF1552 | |
| ATLAS COPCO | 2900512100 | |
| ATLAS COPCO | 6136716120 | |
| BERGERAT MONNOYEUR | E6667 | |
| BIG A | 95519 | |
| BIG A | 95520 | |
| BIG A | 95398 | |
| CATERPILLAR | 3I1175 | |
| CHINA LOCAL | KS101F | |
| CHINA LOCAL | STCX701 | |
| CLARK | 6555779 | |
| COOPERS | FSM4005 | |
| COOPERS | FSM4026 | |
| COOPERS | AZF088 | |
| CROSLAND | 9367 | |
| EXMAN | FC22010 | |
| EXMAN | SFS3020 | |
| EXMAN | FI18040 | |
| FIAAM | FP4641 | |
| FIAT | 99100471 | |
| FIAT | 61251961 | |
| FORD | A830X9155NA | |
| FORD | 5011265 | |
| FREIGHTLINER | DNP550410 | |
| FSA | FF2032 | |
| GREYFRIARS | 834S | |
| GUD | Z195 | |
| GUIOT | GF4139 | |
| GUIOT | GE4139 | |
| HAVAM | HD0255 | |
| IVECO | 61251961 | |
| KNECHT | KC1 | |
| KOMATSU | 6003118220 | |
| KOMATSU | 6003118221 | |
| KOMATSU | 6003118222 | |
| KOMATSU | 6003118230 | |
| KOMATSU | 3003118222 | |
| KOMATSU | 6002118221 | |
| KOMATSU | 6136716120 | |
| KRALINATOR | F139A | |
| KRALINATOR | F139 | |
| LOCKHEED | LK3649 | |
| LOCKHEED | AP3649 | |
| LOESING | 25155 | |
| LOESING | 025155 | |
| ONAN | 1492230 | |
| ORENSTEIN & KOPPEL | 1447324 | |
| P.B.R. | BG1539 | |
| PURFLUX | CS152 | |
| RENAULT VI | 0000206573 | |
| RENAULT VI | 0870175600 | |
| RENAULT VI | 0870156000 | |
| RENAULT VI | 6005019571 | |
| RENAULT VI | 941718018 | |
| RENAULT VI | 0941718018 | |
| RENAULT VI | 0087017560 | |
| RENAULT VI | 870175600 | |
| RENAULT VI | 870156000 | |
| RENAULT VI | 206573 | |
| RENAULT VI | 0003046903 | |
| RENAULT VI | 0003005834 | |
| RENAULT VI | 0003064963 | |
| RENAULT VI | 3005834 | |
| RENAULT VI | 87017560 | |
| RENAULT VI | 3064963 | |
| RENAULT VI | 3046903 | |
| RENAULT VI | 0947718018 | |
| RENAULT VI | 947718018 | |
| RICHIER | 599250373 | |
| SDMO | 330560189 | |
| SOPARIS | CVN199 | |
| TFMC | T50473 | |
| TODD GT | 2241048 | |
| TOYOTA | 2330043020 | |
| TOYOTA | 2330043060 | |
| TOYOTA | 2330049065 | |
| TOYOTA | 2330049060 | |
| TOYOTA | 2330049055 | |
| TOYOTA | 2330049025 | |
| TRUCK CARE | 7201840 | |
| TRUCK CARE | 07201840 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688444 | |
| VMC | FF550410 | |
| WALGAHN-MOTORENTECHN | 00811300 | |
| WALGAHN-MOTORENTECHN | 811300 |
