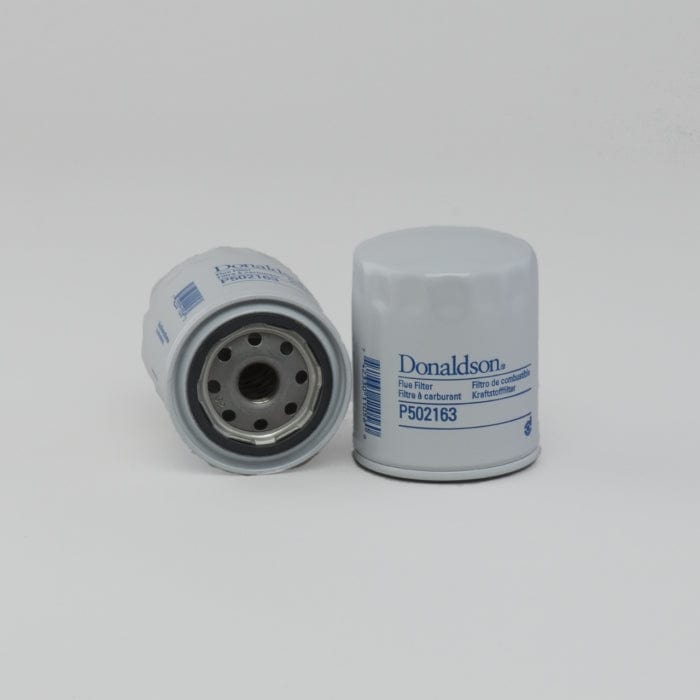

Fuel Filter, Spin-On - Donaldson P502163
Fuel Filter, Spin-On - Donaldson P502163
Regular price
£9.10
Regular price
Sale price
£9.10
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502163
Fuel Filter, Spin-OnShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 82.4 mm (3.24 inch)
- Thread Size: 3/4-16
- Length: 103.3 mm (4.07 inch)
- Gasket OD: 62.86 mm (2.47 inch)
- Gasket ID: 55.19 mm (2.17 inch)
- Efficiency 95%: 5 micron
- Collapse Burst: 20 bar (290 psi)
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: NISSAN/UD TRUCKS 16403Z9005
Packaged Dimensions
- Packaged Length: 0.089 m (3.54 inch)
- Packaged Width: 0.089 m (3.54 inch)
- Packaged Height: 0.118 m (4.72 inch)
- Packaged Weight: 0.406 kg (0.90 lb)
- Packaged Volume: 0.001 m3 (0.03 ft3)
Other Information
- Country of Origin: Türkiye
- NMFC Code: 121510
- HTS Code: 8421230090
- UPC Code: 742330110560
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN MOTORS CORPORATION | NF254 | |
| AMERICAN MOTORS CORPORATION | 39069 | |
| AMERICAN MOTORS CORPORATION | FT3227 | |
| CARRIER TRANSICOLD | 9610124K | |
| CHAMP | FC235 | |
| CITGO | FP887F | |
| DITCH WITCH | 153829 | |
| EXMAN | SFC214 | |
| EXMAN | FT3227 | |
| EXMAN | 39069 | |
| FEDERAL MOTORS | FFS5017 | |
| FSA | FF2041 | |
| JLG | 1730568 | |
| KOMATSU | 6003119650 | |
| KUBOTA | 1663143560 | |
| KUBOTA | W21ESF1G00 | |
| KUBOTA | W21ESF1660 | |
| KUBOTA | HH1G043560 | |
| LIUGONG | 53C0504 | |
| NISSAN/UD TRUCKS | 1640534W25 | |
| NISSAN/UD TRUCKS | FL403Z9005 | |
| NISSAN/UD TRUCKS | 1640517510 | |
| NISSAN/UD TRUCKS | 16400R0101 | |
| NISSAN/UD TRUCKS | 16400R8101 | |
| NISSAN/UD TRUCKS | 16403Z9003 | |
| NISSAN/UD TRUCKS | 16403Z9005 | |
| NISSAN/UD TRUCKS | 15405T9002 | |
| NISSAN/UD TRUCKS | FC16110 | |
| NISSAN/UD TRUCKS | 164031T01 | |
| NISSAN/UD TRUCKS | N1016403Z9000 | |
| NISSAN/UD TRUCKS | 16405T620 | |
| ONAN | 1492804 | |
| SANY | 60212876 | |
| SCHWING | 83685054 | |
| SDLG | 4110001091001 | |
| SDLG | 1663143562 | |
| TAKEUCHI | K1663143560 | |
| THOMAS | ME1663143562 | |
| THOMAS | 42561 | |
| TOWMOTOR | 971609 | |
| VIC | FC214 | |
| VIC | FC224 | |
| VMC | FF502163 | |
| VOLVO | 15714570 | |
| XCMG | 800159523 | |
| XCMG | 800154594 | |
| XCMG | RL07511 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AEBI TP48 | - | TRACTOR | TP SERIES | KUBOTA V3300-DI | - |
| AEBI TP48P | - | TRACTOR | TP SERIES | KUBOTA V3800-DI | - |
| AEBI TP68 | - | TRACTOR | TP SERIES | KUBOTA V3300-BE | - |
| AEBI TP78 | - | TRACTOR | TP SERIES | KUBOTA V3300-BE | - |
| AEBI TP88 | - | TRACTOR | TP SERIES | KUBOTA V3800-DI | - |
| HYUNDAI HSL650-7 | - | SKID STEER LOADER | HSL SERIES | KUBOTA V2203-M | - |
| HYUNDAI HSL850-7 | - | SKID STEER LOADER | HSL SERIES | KUBOTA V3300-DI | - |
| KOMATSU FD20SV | - | FORKLIFT | FG SERIES | - FD20SV | - |
| KOMATSU FD20V | - | FORKLIFT | FD SERIES | - FD20V | - |
| KOMATSU FD25S | - | FORKLIFT | - | KOMATSU 4D95S | - |
| KOMATSU FD25S-5 | - | FORKLIFT | FD SERIES | KOMATSU 4D95S | - |
| KOMATSU FD25SV | - | FORKLIFT | FD SERIES | - FD25SV | - |
| KOMATSU FD30-11 | - | FORKLIFT | FD SERIES | KOMATSU 4D95S-1 | - |
| KOMATSU FD30H-11 | - | FORKLIFT | FD SERIES | - FD30H-11 | - |
| KOMATSU FD30S-11 | - | FORKLIFT | FG SERIES | - FD30S-11 | - |
| KOMATSU FD40-4 | - | FORKLIFT | FD SERIES | - FD40-4 | - |
| KOMATSU FG20 | - | FORKLIFT | FG SERIES | NISSAN GS | - |
| KOMATSU FG20-11 | - | FORKLIFT | FG SERIES | - FG20-11 | - |
| KOMATSU FG20S-11 | - | FORKLIFT | FG SERIES | - FG20S-11 | - |
| KOMATSU FG25S | - | FORKLIFT | FG SERIES | ISUZU GL201 | - |
| KOMATSU FG30 | - | FORKLIFT | FG SERIES | NISSAN H20 | - |
| KOMATSU FG30S-11 | - | FORKLIFT | FG SERIES | - FG30S-11 | - |
| KUBOTA 95S | - | TRACTOR | - | KUBOTA V3800D | TIER 2 |
| KUBOTA BK60 | - | COMBINE | - | KUBOTA V3800DI-T-E | - |
| KUBOTA BK68 | - | COMBINE | - | KUBOTA V3800DI-T-E | - |
| KUBOTA CK60 | - | COMBINE | - | KUBOTA V3800DI-T-E | - |
| KUBOTA CK68 | - | COMBINE | - | KUBOTA V3800DI-T-E | - |
| KUBOTA CK70 | - | COMBINE | - | KUBOTA V3800DI-T-E | - |
| KUBOTA CK70G | - | COMBINE | - | KUBOTA V3800DI-T-E | - |
| KUBOTA DC-95GM | - | COMBINE | - | KUBOTA V3800DITE | - |
| KUBOTA KX185 | - | EXCAVATOR | - | KUBOTA V3307D1T | - |
| KUBOTA KX251 | - | EXCAVATOR COMPACT | KX SERIES | KUBOTA V3300 | - |
| KUBOTA M105 | - | TRACTOR | M SERIES | KUBOTA V3800DI | - |
| KUBOTA M105SHC | - | TRACTOR | - | - M105SHC | - |
| KUBOTA M105X | - | TRACTOR | M SERIES | KUBOTA V3800DI | TIER 2 |
| KUBOTA M110 | - | TRACTOR | - | - M110 | - |
| KUBOTA M110DT | - | TRACTOR | - | - M110DT | - |
| KUBOTA M110DTC | - | TRACTOR | - | - M110DTC | - |
| KUBOTA M110FC | - | TRACTOR | - | - M110FC | - |
| KUBOTA M120 | - | TRACTOR | - | - M120 | - |
| KUBOTA M120DT | - | TRACTOR | - | - M120DT | - |
| KUBOTA M120DTC | - | TRACTOR | - | - M120DTC | - |
| KUBOTA M120FC | - | TRACTOR | - | - M120FC | - |
| KUBOTA M4900 SERIES | - | TRACTOR | - | - M4900 SERIES | - |
| KUBOTA M5700 | - | TRACTOR | - | - M5700 | - |
| KUBOTA M6800 | - | TRACTOR | - | - M6800 | - |
| KUBOTA M6800DT | - | TRACTOR | - | KUBOTA V3300 | - |
| KUBOTA M7580 | - | TRACTOR | M SERIES | KUBOTA V4302A | - |
| KUBOTA M8540 | - | TRACTOR | - | KUBOTA V3800DI-T-E | - |
| KUBOTA M9540 | - | TRACTOR | - | KUBOTA V3800DI-T-E | - |
| KUBOTA M9580 | - | TRACTOR | M SERIES | KUBOTA V4702TA | - |
| KUBOTA SQ3350SW | - | GENERATOR SET | SQ SERIES | KUBOTA V3300 | - |
| LIUGONG CLG910E | - | EXCAVATOR | - | KUBOTA V3800DI－T | - |
| LIUGONG CLG910E | - | EXCAVATOR | - | KUBOTA V3800DI | - |
| LIUGONG CLG910E | - | EXCAVATOR | - | KUBOTA V3800DI | - |
| NISSAN CLA | - | TRUCK | - | NISSAN FE6T | - |
| NISSAN CMA | - | TRUCK | - | NISSAN FE6T | - |
| NISSAN EH01 | - | FORKLIFT | - | NISSAN SD25 | - |
| NISSAN EH02 | - | FORKLIFT | - | NISSAN SD25 | - |
| NISSAN H02 | - | FORKLIFT | - | NISSAN SD25 | - |
| NISSAN J01 | - | FORKLIFT | - | NISSAN H20 | - |
| SANY SY55 | - | EXCAVATOR | - | KUBOTA V2607 | - |
| SANY SY55 | - | EXCAVATOR | - | KUBOTA V2607 | - |
| SANY SY60C | - | EXCAVATOR | - | KUBOTA V2607 | - |
| SANY SY60C | - | EXCAVATOR | - | KUBOTA V2607 | - |
| SANY SY65C9 | - | EXCAVATOR | - | SANY D03 | - |
| SANY SY75C | - | EXCAVATOR | - | ISUZU 4LE2X | - |
| SANY SY75C | - | EXCAVATOR | - | ISUZU 4LE2X | - |
| SANY SY75C-9 | - | EXCAVATOR | - | ISUZU 4JG1 | - |
| SANY SY75C9 | - | EXCAVATOR | - | SANY D03 | - |
| SANY SY85 | - | EXCAVATOR | - | KUBOTA V3800DI | - |
| SANY SY85 | - | EXCAVATOR | - | KUBOTA V3800DI | - |
| SANY SY95 | - | EXCAVATOR | - | KUBOTA V3800DI | - |
| SANY SY95 | - | EXCAVATOR | - | KUBOTA V3800DI | - |
| THOMAS 153 | - | SKID STEER LOADER | - | KUBOTA V2203-E | - |
| UD TRUCKS UD1100 | - | TRUCK | - | NISSAN FD35T | - |
| UD TRUCKS UD18 | - | TRUCK | - | NISSAN FE6T | - |
| UD TRUCKS UD20 | - | TRUCK | - | NISSAN FE6T | - |
| UD TRUCKS UD23 | - | TRUCK | - | NISSAN FE6T | - |
| UD TRUCKS UD26 | - | TRUCK | - | NISSAN FE6T | - |
| UD TRUCKS UD2800 | - | TRUCK | - | NISSAN FE6T | - |
| XCMG XE75D | - | EXCAVATOR | - | KUBOTA V2607 | - |
| XCMG XE75DA | - | EXCAVATOR | - | KUBOTA V2607-DI-T | - |
