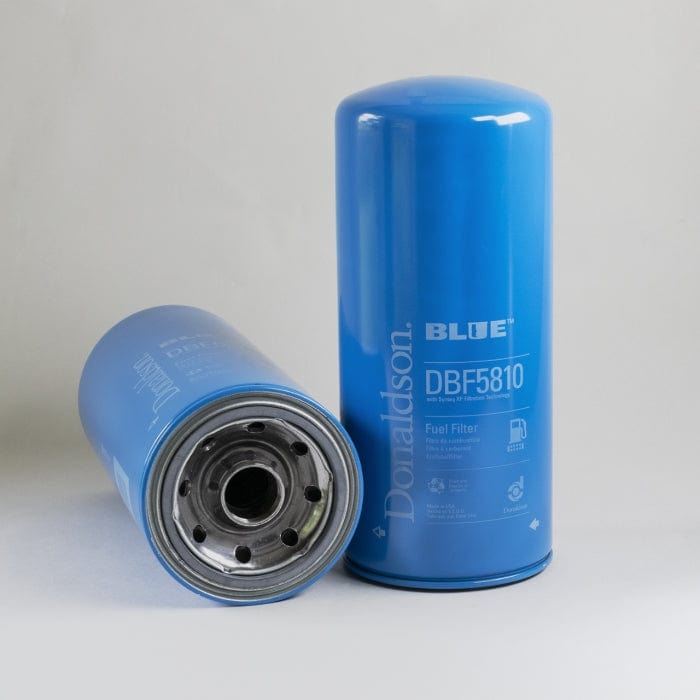

Fuel Filter, Spin-On - Donaldson DBF5810

Fuel Filter, Spin-On - Donaldson DBF5810

£81.73
£81.73
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson DBF5810

Fuel Filter, Spin-On
Outer Diameter 5.35 inch (136 mm)
Thread Size 1 3/8-16 UN
Length 12.13 inch (308 mm)
Gasket OD 4.35 inch (110.5 mm)
Gasket ID 3.95 inch (100.3 mm)
Efficiency 99.9% 4 micron
Style Spin-On
Brand Donaldson BLUE®
Media Type Synteq XP
Primary Application Caterpillar 4227587
View full details

Specifications

Attributes

  • Outer Diameter: 136 mm (5.35 inch)
  • Thread Size: 1 3/8-16 UN
  • Length: 308 mm (12.13 inch)
  • Gasket OD: 110.5 mm (4.35 inch)
  • Gasket ID: 100.3 mm (3.95 inch)
  • Efficiency 99.9%: 4 micron
  • Style: Spin-On
  • Brand: Donaldson BLUE®
  • Media Type: Synteq XP
  • Primary Application: Caterpillar 4227587

Packaged Dimensions

  • Packaged Length: 0.144 m (5.76 inch)
  • Packaged Width: 0.144 m (5.76 inch)
  • Packaged Height: 0.324 m (12.96 inch)
  • Packaged Weight: 1.916 kg (4.22 lb)
  • Packaged Volume: 0.007 m3 (0.25 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069095-02
  • HTS Code: 8421230090
  • UPC Code: 742330234099

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 4227587

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 797F - DUMP TRUCK 700 SERIES CATERPILLAR C175-20 -
CATERPILLAR C175-16 - ENGINE - CATERPILLAR C175-16 -
