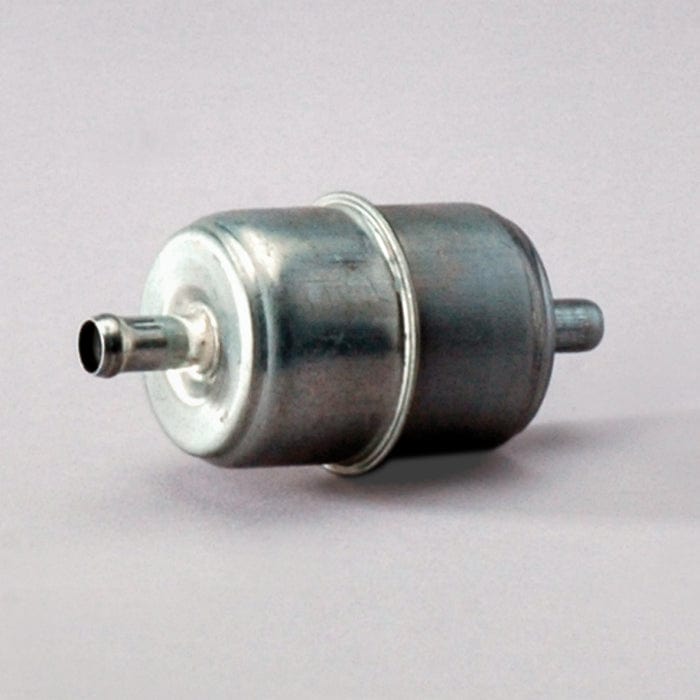

• Donaldson Fuel Filter, In-Line - Donaldson P550433
1 1

Fuel Filter, In-Line - Donaldson P550433

Fuel Filter, In-Line - Donaldson P550433

£6.90
£6.90
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550433

Fuel Filter, In-Line
Outer Diameter 1.91 inch (48.5 mm)
Length 3.90 inch (99 mm)
Inlet Size 3/8
Outlet Diameter 0.39 inch (10 mm)
Efficiency 99% 150 micron
Style In-Line
Media Type Wire Mesh, Stainless Steel
Primary Application CASE/CASE IH D145357
View full details

Specifications

Attributes

  • Outer Diameter: 48.5 mm (1.91 inch)
  • Length: 99 mm (3.90 inch)
  • Inlet Size: 3/8
  • Outlet Diameter: 10 mm (0.39 inch)
  • Efficiency 99%: 150 micron
  • Style: In-Line
  • Media Type: Wire Mesh
  • Stainless Steel:
  • Primary Application: CASE/CASE IH D145357

Packaged Dimensions

  • Packaged Length: 0.059 m (2.36 inch)
  • Packaged Width: 0.059 m (2.36 inch)
  • Packaged Height: 0.118 m (4.72 inch)
  • Packaged Weight: 0.045 kg (0.10 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: China
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330111062

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN MOTORS CORPORATION SFS5357
BIG A 95253
CASE/CASE IH D145357
CASE/CASE IH 145357
EXMAN SFS5357
KRALINATOR G277
M.D.F. SARL MDF1188
PACCAR Y05996804
VMC FF550433

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH 570LXT - LOADER - - 570LXT -
CASE/CASE IH 580 - BACKHOE LOADER SUPER L CUMMINS 4BT3.9 -
CASE/CASE IH 580 - BACKHOE LOADER SUPER K CUMMINS 4BT3.9 -
CASE/CASE IH 580K - BACKHOE LOADER - CUMMINS 4BT3.9 -
CASE/CASE IH 580L - BACKHOE LOADER - CUMMINS 4BT3.9 -
