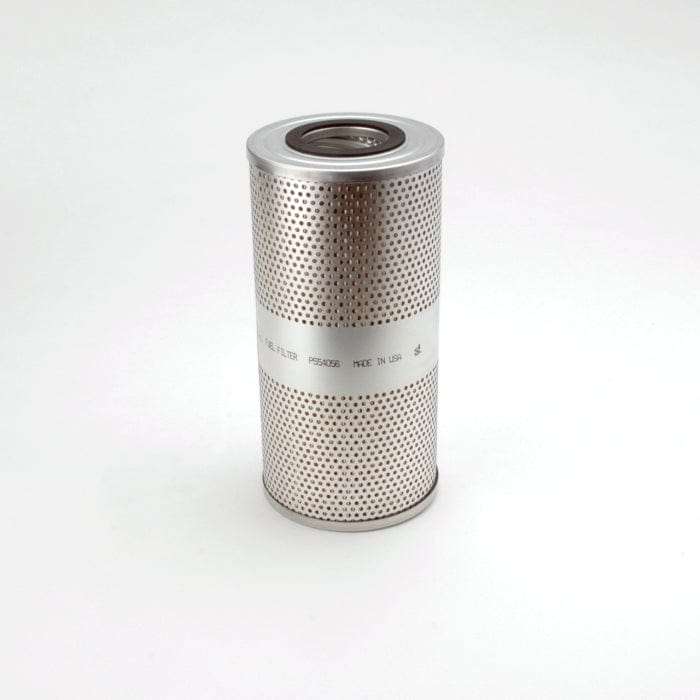

Fuel Filter, Cartridge - Donaldson P554056

Fuel Filter, Cartridge - Donaldson P554056

£32.35
£32.35
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P554056

Fuel Filter, Cartridge
Outer Diameter 5.06 inch (128.6 mm)
Inner Diameter 2.28 inch (57.9 mm)
Length 10.29 inch (261.4 mm)
Efficiency 50% 3 micron
Efficiency 99% 9 micron
Efficiency Test Std SAE J1985
Collapse Burst 75 psi (5.2 bar)
Style Cartridge
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 128.6 mm (5.06 inch)
  • Inner Diameter: 57.9 mm (2.28 inch)
  • Length: 261.4 mm (10.29 inch)
  • Efficiency 50%: 3 micron
  • Efficiency 99%: 9 micron
  • Efficiency Test Std: SAE J1985
  • Collapse Burst: 5.2 bar (75 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.133 m (5.30 inch)
  • Packaged Width: 0.133 m (5.30 inch)
  • Packaged Height: 0.290 m (11.60 inch)
  • Packaged Weight: 0.960 kg (2.12 lb)
  • Packaged Volume: 0.005 m3 (0.19 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 121510
  • HTS Code: 8421230090
  • UPC Code: 742330044568

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 95427
CATERPILLAR 1R0766
CATERPILLAR 1W4056
CATERPILLAR 1R0725
KRALINATOR F3427
MITSUBISHI ME039817
TIM 1R0725
TIM 1W4056
VMC FF554056
WALGAHN-MOTORENTECHN 811862
WALGAHN-MOTORENTECHN 00811862

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 3606 - ENGINE - - 3606 -
CATERPILLAR 3608 - ENGINE - - 3608 -
CATERPILLAR 3612 - ENGINE - - 3612 -
CATERPILLAR 3618 - ENGINE - - 3618 -
KATO HD1430R - EXCAVATOR - MITSUBISHI 6D16-TLC1A -
