• Donaldson Fuel Filter, Cartridge - Donaldson P551317
1 1

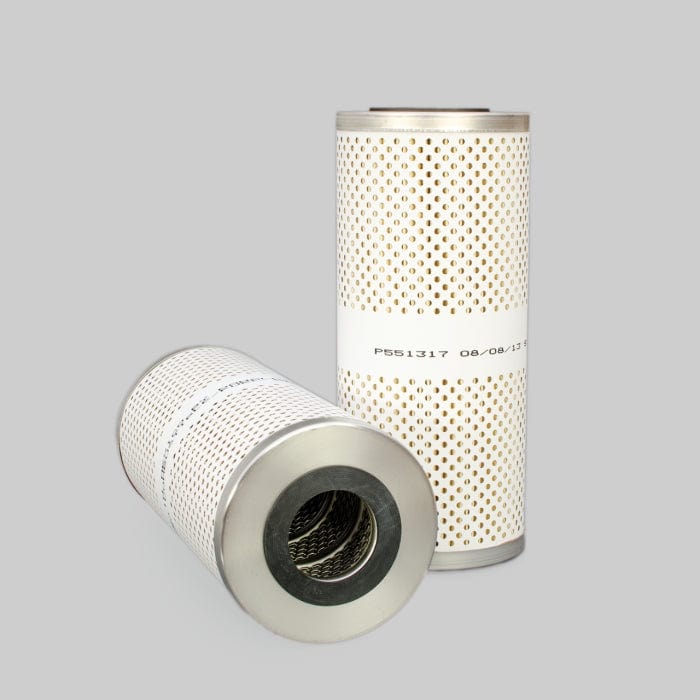

Fuel Filter, Cartridge - Donaldson P551317

Fuel Filter, Cartridge - Donaldson P551317

£11.67
£11.67
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551317

Fuel Filter, Cartridge
Outer Diameter 4.00 inch (101.6 mm)
Inner Diameter 1.64 inch (41.7 mm)
Length 9.25 inch (234.9 mm)
Gasket OD 2.5 inch (63.5 mm)
Gasket ID 1.64 inch (41.7 mm)
Efficiency 99% 4 micron
Efficiency Test Std SAE J1985
Style Cartridge
Media Type Cellulose
Primary Application CATERPILLAR 1R0756
View full details

Specifications

Attributes

  • Outer Diameter: 101.6 mm (4.00 inch)
  • Inner Diameter: 41.7 mm (1.64 inch)
  • Length: 234.9 mm (9.25 inch)
  • Gasket OD: 63.5 mm (2.5 inch)
  • Gasket ID: 41.7 mm (1.64 inch)
  • Efficiency 99%: 4 micron
  • Efficiency Test Std: SAE J1985
  • Style: Cartridge
  • Media Type: Cellulose
  • Primary Application: CATERPILLAR 1R0756

Packaged Dimensions

  • Packaged Length: 0.098 m (3.90 inch)
  • Packaged Width: 0.093 m (3.70 inch)
  • Packaged Height: 0.230 m (9.20 inch)
  • Packaged Weight: 0.456 kg (1.01 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-07
  • HTS Code: 8421230090
  • UPC Code: 742330087350

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 1R0756
LOESING 025192
LOESING 25192
SDMO 330560316
TIM 1R0756
VMC FF551317

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 3400 - ENGINE - CATERPILLAR 3400 -
CATERPILLAR 3508B - ENGINE - - 3508B -
CATERPILLAR 3512B - ENGINE - - 3512B -
CATERPILLAR 3516B - ENGINE - CATERPILLAR 3516B -
CATERPILLAR PM3508 - GENERATOR SET - - PM3508 -
CATERPILLAR PM3512 - GENERATOR SET - - PM3512 -
CATERPILLAR PM3516 - GENERATOR SET - - PM3516 -
TAMROCK D90KS - DRILLING EQUIPMENT - - D90KS -
XGMA XG904 - LOADER WHEELED - PERKINS 403D15 -
