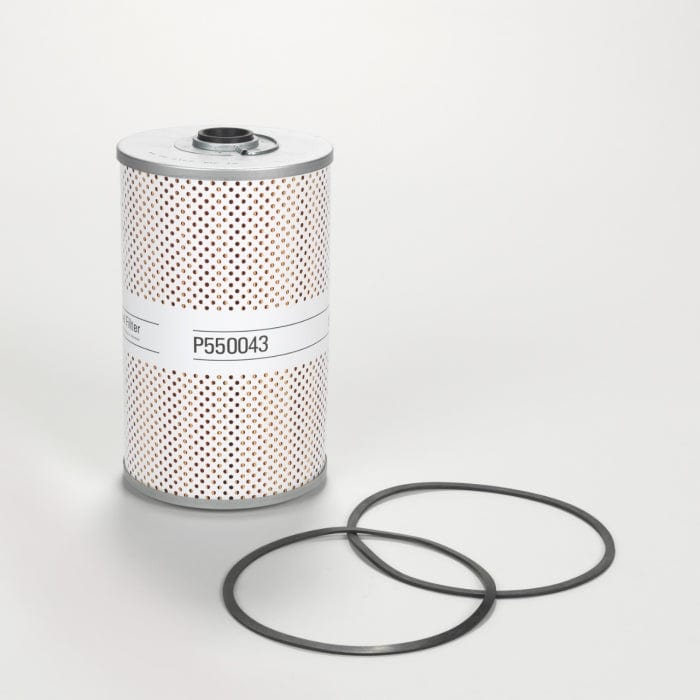

Fuel Filter, Cartridge - Donaldson P550043
Fuel Filter, Cartridge - Donaldson P550043
Regular price
£27.42
Regular price
Sale price
£27.42
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550043
Fuel Filter, Cartridge| Outer Diameter | 5.81 inch (147.57 mm) |
| Inner Diameter | 1.00 inch (25.4 mm) |
| Length | 9.37 inch (237.99 mm) |
| Efficiency 99% | 20 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 75 psi (5.2 bar) |
| Style | Cartridge |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 147.57 mm (5.81 inch)
- Inner Diameter: 25.4 mm (1.00 inch)
- Length: 237.99 mm (9.37 inch)
- Efficiency 99%: 20 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 5.2 bar (75 psi)
- Style: Cartridge
Packaged Dimensions
- Packaged Length: 0.160 m (6.40 inch)
- Packaged Width: 0.160 m (6.40 inch)
- Packaged Height: 0.260 m (10.40 inch)
- Packaged Weight: 0.956 kg (2.11 lb)
- Packaged Volume: 0.007 m3 (0.25 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330040379
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | C208 | |
| AC DELCO | TP614 | |
| AC DELCO | TP617 | |
| ALFA ROMEO | 162359728 | |
| ALFA ROMEO | 162367712 | |
| ALLIS-CHALMERS | 6581284 | |
| ALLIS-CHALMERS | 658128 | |
| ALLIS-CHALMERS | 70658128 | |
| ALLIS-CHALMERS | 70256834 | |
| ALLIS-CHALMERS | 06581284 | |
| ALLIS-CHALMERS | 0658128 | |
| ALLIS-CHALMERS | 256834 | |
| AMERICAN LAFRANCE | 303E630 | |
| AMERICAN MOTORS CORPORATION | FE23020 | |
| AMERICAN MOTORS CORPORATION | SFF0108 | |
| AMERICAN PARTS | 95144 | |
| AMERICAN PARTS | 605 | |
| AMERICAN PARTS | 535 | |
| AMERICAN PARTS | 509 | |
| ASAHI | KF1545 | |
| ATLAS COPCO | 97101779 | |
| AUSTIN-WESTERN | 256834 | |
| BIG A | 509 | |
| BIG A | 535 | |
| BIG A | 95144 | |
| BROS | 256834 | |
| CARRIER TRANSICOLD | 3000092 | |
| CASE/CASE IH | 323838C91 | |
| CASE/CASE IH | D4HZ9365A | |
| CASE/CASE IH | 186306H1 | |
| CATERPILLAR | 3I1106 | |
| CHAMP | 43F | |
| CHAMP | L43F | |
| CHRYSLER | 8541840005 | |
| CLARK | 945912 | |
| CLARK | 946010 | |
| CLARK | 944472 | |
| CLARK | 256834 | |
| COLES-GROVE | 8759112 | |
| COLES-GROVE | 9759112 | |
| CONSOLIDATED PNEUMATIC | 256834 | |
| CONTINENTAL | RD6F4280 | |
| CONTINENTAL | TD600L342 | |
| CONTINENTAL | TD600L4010 | |
| CONTINENTAL | TD600L302 | |
| CONTINENTAL | TD600L5010 | |
| COOPERS | GP506 | |
| COOPERS | AZF016FUEL | |
| COOPERS | AZF016 | |
| COOPERS | G814 | |
| CROSLAND | 564 | |
| CUMMINS | 252193 | |
| CUMMINS | FF108 | |
| CUMMINS | FF8 | |
| CUMMINS | 256834 | |
| CUMMINS | 256835 | |
| CUMMINS | BM94254 | |
| CUMMINS | BM91119 | |
| CUMMINS | 189227 | |
| CUMMINS | 695299 | |
| CUMMINS | 151858 | |
| CUMMINS | 151940 | |
| CUMMINS | 139097 | |
| CUMMINS | 139097Y | |
| CUMMINS | 154431 | |
| CUMMINS | 155365 | |
| CUMMINS | CF178 | |
| CUMMINS | CF105D | |
| CUMMINS | CF125 | |
| CUMMINS | CF108 | |
| DELUXE | WD455 | |
| DELUXE | 455 | |
| DEUTZ | P4H4120 | |
| DEUTZ | 1168470 | |
| DIAMOND | DH207 | |
| DIAMOND | DC6072 | |
| DIEXA | DX62 | |
| DRESSER | 323838C91 | |
| DRESSER | 186306H1 | |
| DRESSER | 155365H1 | |
| DRESSER | 154431H1 | |
| DRESSER | 349197C1 | |
| EATON | 2022412 | |
| EIMCO | 256834 | |
| ERF (E.R.F.) | C256834 | |
| EUCLID | 256834 | |
| EXMAN | SFF0108 | |
| EXMAN | FE23020 | |
| FIAAM | FA4134 | |
| FIAT | 70256834 | |
| FIAT | D4HZ9365A | |
| FIAT | 1909118 | |
| FIAT | 9909999 | |
| FIAT | 74057728 | |
| FIAT | 8809614 | |
| FIAT | 658128 | |
| FIAT | 76102380 | |
| FIAT | 9018249 | |
| FIAT | 70658128 | |
| FILT | G1031 | |
| FLO-LINE NO. | PF108 | |
| FODEN | Y02128407 | |
| FORD | 9576P550043 | |
| FORD | D4HZ9365A | |
| FORD | D4HZ9155A | |
| FREIGHTLINER | DNP550043 | |
| FURUKAWA | 349197C1 | |
| FURUKAWA | 186306H1 | |
| FURUKAWA | 155365H1 | |
| FURUKAWA | 154431H1 | |
| FWD | 10375047 | |
| FWD | 48AC43P | |
| FWD | 202270 | |
| GALION | 82289 | |
| GALION | D82289 | |
| GALION | D83389 | |
| GRADALL | 256834 | |
| GREYFRIARS | 460F | |
| GUARDIAN | G033144 | |
| GUD | GP506 | |
| GUD | G814 | |
| GUIOT | GC1143 | |
| HEIN-WERNER | 256834 | |
| HITACHI | 76102380 | |
| HITACHI | 70658128 | |
| HITACHI | 74057728 | |
| HOUGH | 186306H1 | |
| HOUGH | 155365H1 | |
| HUBER WARCO | 256834 | |
| INDUCONTROL | CPL1143 | |
| INGERSOLL RAND | 91670679 | |
| INTERNATIONAL | 349197C1 | |
| INTERNATIONAL | 155365H1 | |
| INTERNATIONAL | 154431H1 | |
| INTERNATIONAL | 323838C91 | |
| INTERNATIONAL | 186306H1 | |
| JOHN BEAN | 3A11550 | |
| JOHN DEERE | 256834 | |
| KAELBLE | 606511 | |
| KHD | 1168470 | |
| KNECHT | EK489 | |
| KNECHT | EN150 | |
| KOEHRING | 256834 | |
| KOHLER | 256834 | |
| KOMATSU | 6610618600 | |
| KOMATSU | 6610708063 | |
| KOMATSU | 4D130139097Z | |
| KOMATSU | 139097Y | |
| KOMATSU | 13909Y | |
| KOMATSU | VC8812 | |
| KOMATSU | 256834 | |
| KOMATSU | FF108 | |
| KOMATSU | 6110718600 | |
| KOMATSU | CUFF108 | |
| KORODY COLYER | FPF116 | |
| KRALINATOR | F845 | |
| KRALINATOR | KF845 | |
| LETOURNEAU | VC8812 | |
| LETOURNEAU | BC8812 | |
| LETOURNEAU | 729206 | |
| LETOURNEAU | PK15 | |
| LETOURNEAU | PK15A | |
| LETOURNEAU | 256834 | |
| LINK BELT | 3A11550 | |
| LOCKHEED | APF3186A | |
| LOCKHEED | LK3186 | |
| LOCKHEED | AP3186 | |
| LOCKHEED | 574159 | |
| LOCKHEED | FH159 | |
| MACK | 83SB19 | |
| MERCEDES-BENZ | 8541840005 | |
| MICHIGAN | 946010 | |
| MISFAT | 12001400 | |
| MISFAT | 12543500 | |
| NELSON WINSLOW | WFC1143PB | |
| NELSON WINSLOW | WF1143PB | |
| NELSON WINSLOW | 1150C | |
| NELSON WINSLOW | WFC1143PL | |
| NELSON WINSLOW | WFC1143PB | |
| NEW HOLLAND | D4HZ9365A | |
| OLIVER | 603729AS | |
| OLIVER | 109271A | |
| OLIVER | 107368 | |
| ORENSTEIN & KOPPEL | 102607 | |
| OSHKOSH | 23FF1S | |
| P.B.R. | AG3034 | |
| PAYHAULER | 323838C91 | |
| PERRY | PF455 | |
| REFILCO | PL61010 | |
| ROL-PAK | F1143 | |
| SAURER | 1201281 | |
| SAVARA | 92408417 | |
| SAVARA | 92020017 | |
| SHEPPARD | 200B | |
| SHEPPARD | 201B | |
| SHEPPARD | 2000A | |
| SHEPPARD | 310274 | |
| STAY READY | SRPF43 | |
| STEIGER | 28019 | |
| TECHNOCAR | O43 | |
| TEREX | 102607 | |
| TFMC | T00432 | |
| TFMC | 3A11550 | |
| TIMBERJACK | 3000092 | |
| TROJAN | 256834 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688176 | |
| UNITED ENGINE LIFE | FC43F | |
| VMC | FF550043 | |
| VOLVO | 19199865 | |
| VOLVO | 79199865 | |
| WABCO | PK15 | |
| WABCO | PK15A | |
| WABCO | BC8812 | |
| WABCO | 729206 | |
| WABCO | VC8812 | |
| WABCO | VF1577 | |
| WALGAHN-MOTORENTECHN | 00811261 | |
| WALGAHN-MOTORENTECHN | 811261 | |
| WAUKESHA | 153188 | |
| WAUKESHA | 153189 | |
| WAUKESHA | 154431H1 | |
| WAUKESHA | 154431HL | |
| WGB | S152CP | |
| WHITE | 700202 | |
| WHITE | 603729AS | |
| WHITE | 1009271 | |
| WHITE | 109271 | |
| WHITE | 107368 | |
| WITTE | 47313080 | |
| WITTE | 47313081 | |
| YALE | 139097 | |
| YALE | 2022412 |
