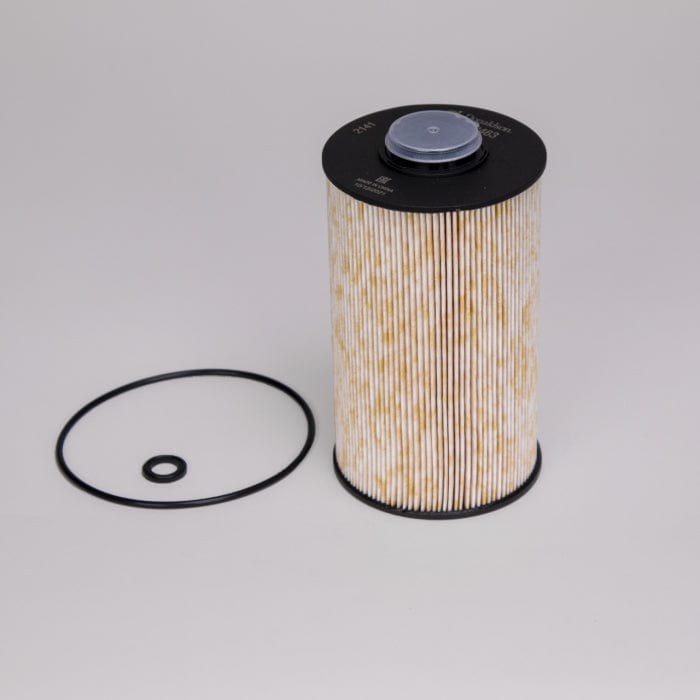

Fuel Filter, Cartridge - Donaldson P502463
Fuel Filter, Cartridge - Donaldson P502463
Regular price
£16.64
Regular price
Sale price
£16.64
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502463
Fuel Filter, CartridgeShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 94 mm (3.70 inch)
- Inner Diameter: 24 mm (0.94 inch)
- Length: 155 mm (6.10 inch)
- Efficiency 95%: 7 micron
- Efficiency Beta 75: 10 micron
- Efficiency Test Std: JIS D 1617
- ISO 4548-12:
- Collapse Burst: 6.9 bar (100 psi)
- Style: Cartridge
- Media Type: Cellulose
- Primary Application: KOBELCO YN21P01068R100
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.169 m (6.77 inch)
- Packaged Weight: 0.250 kg (0.55 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: China
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330202470
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | MMH80590 | |
| FIAT KOBELCO | YN21P01036S002 | |
| FIAT KOBELCO | YN21P01068S002 | |
| FIAT KOBELCO | LS21P0103R100 | |
| FIAT KOBELCO | YN21P01068R100J1L | |
| FIAT KOBELCO | YN21P01068 | |
| FIAT KOBELCO | YN21P01036R100 | |
| FIAT KOBELCO | YN21P01068R100 | |
| HITACHI | PU10026x | |
| HITACHI | 8980758550 | |
| HITACHI | 4649267 | |
| HITACHI | 467612763 | |
| HITACHI | 4676385 | |
| KOMATSU | 4649267 | |
| SANY | PSF101010301 | |
| SANY | 60286607 | |
| SUMITOMO | MMH80870 | |
| SUMITOMO | MMH81510 | |
| SUMITOMO | KHH10590 | |
| SUMITOMO | KHH12030 | |
| TAKEUCHI | T1552002910 | |
| TAKEUCHI | 1552002910 | |
| YANMAR | 17266014530 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH CX130 | - | EXCAVATOR TRACKED | - | - CX130 | - |
| HITACHI ZX170W-3 | 2017 | EXCAVATOR WHEELED | - | ISUZU Al-4HK1X | - |
| HITACHI ZX180LC-3 | - | EXCAVATOR TRACKED | - | - - | - |
| HITACHI ZX200-3 | 2008 | EXCAVATOR TRACKED | - | ISUZU AH-4HK1XYSA-02 | - |
| HITACHI ZX200LC-3 | - | EXCAVATOR TRACKED | - | ISUZU 4HK1 | - |
