Fuel Filter, Cartridge - Donaldson P502166
Fuel Filter, Cartridge - Donaldson P502166
Regular price
£5.01
Regular price
Sale price
£5.01
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
** This filter has been replaced with P502135 **

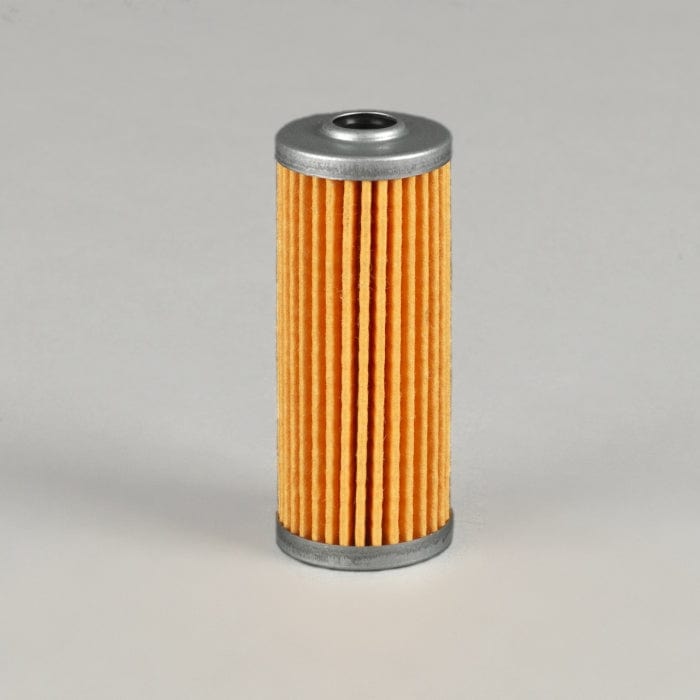

Donaldson P502166
Fuel Filter, Cartridge
| Outer Diameter | 1.38 inch (35 mm) |
| Inner Diameter | 0.45 inch (11.5 mm) |
| Length | 3.44 inch (87.5 mm) |
| Efficiency 50% | 16 micron |
| Efficiency Test Std | JIS D 1611 |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 35 mm (1.38 inch)
- Inner Diameter: 11.5 mm (0.45 inch)
- Length: 87.5 mm (3.44 inch)
- Efficiency 50%: 16 micron
- Efficiency Test Std: JIS D 1611
- Collapse Burst: 6.9 bar (100 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.049 m (1.97 inch)
- Packaged Width: 0.049 m (1.97 inch)
- Packaged Height: 0.099 m (3.94 inch)
- Packaged Weight: 0.052 kg (0.12 lb)
- Packaged Volume: 0.000 m3 (0.01 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 121510
- HTS Code: 8421230090
- UPC Code: 742330110928
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AEC WHITLOCK | YF9104 | |
| AGRINET LTD | 12455055700YANMAR | |
| AGRINET LTD | 12910055650 | |
| AGRINET LTD | 11981055650YANMAR | |
| AMERICAN MOTORS CORPORATION | Y12455055700 | |
| AMERICAN MOTORS CORPORATION | FE24010 | |
| AMERICAN MOTORS CORPORATION | SFF3560 | |
| AMERICAN MOTORS CORPORATION | YF9104 | |
| AMERICAN PARTS | 95263 | |
| ASAHI | YF9104 | |
| BIG A | 95263 | |
| BLACKROCK | 1090002 | |
| CATERPILLAR | 3727352 | |
| COOPERS | FEM4108 | |
| DITCH WITCH | 452367 | |
| DITCH WITCH | 194695 | |
| EXMAN | Y12455055700 | |
| EXMAN | FE24010 | |
| EXMAN | SFF3560 | |
| FIAT | 76568666 | |
| GREYFRIARS | 430F | |
| HINO | 1627143560 | |
| HITACHI | 4454529 | |
| HITACHI | 76568666 | |
| HITACHI | 4667073 | |
| HITACHI | 4313065 | |
| ISUZU | 8970713480 | |
| ISUZU | 8944015310 | |
| JACOBSEN | 1627143560 | |
| JLG | 7018111 | |
| JOHN DEERE | CH10479 | |
| JOHN DEERE | MIU804763 | |
| JOHN DEERE | M801101 | |
| KOBELCO | S19100660012 | |
| KOBELCO | 12455055700 | |
| KOBELCO | 11981055650 | |
| KOBELCO | S19100660012A | |
| KOMATSU | YM12455055700 | |
| KOMATSU | YMR000931 | |
| KOMATSU | 12455055700 | |
| KOMATSU | YMR000603 | |
| KOMATSU | YM11981055650 | |
| KOMATSU | 11981055650 | |
| KOMATSU | 11981055653 | |
| KRALINATOR | LA1117F | |
| KRALINATOR | F684 | |
| KRAMER | 1000000990 | |
| KUBOTA | 1522443010 | |
| KUBOTA | 1627143560 | |
| MAHINDRA | 15001023290 | |
| NEUSON | 1211070 | |
| NEUSON | 1000147873 | |
| NEW HOLLAND | 0004295795 | |
| NEW HOLLAND | 4295795 | |
| NEW HOLLAND | VV11981055650 | |
| ORENSTEIN & KOPPEL | 72276232 | |
| PEL-JOB | 12455055700 | |
| TAKEUCHI | TY12455055700 | |
| TAKEUCHI | 12455055700 | |
| TOYOTA | 233234284071 | |
| VMC | FF502166 | |
| VOLVO | 11713230 | |
| WABCO | VN4616 | |
| YANMAR | 12905355670 | |
| YANMAR | 1245505570 | |
| YANMAR | 1W360720060 | |
| YANMAR | 11981055650 | |
| YANMAR | 12455055700 | |
| YANMAR | FE240101 | |
| YANMAR | YMR000931 | |
| YANMAR | YM12455055700 |
