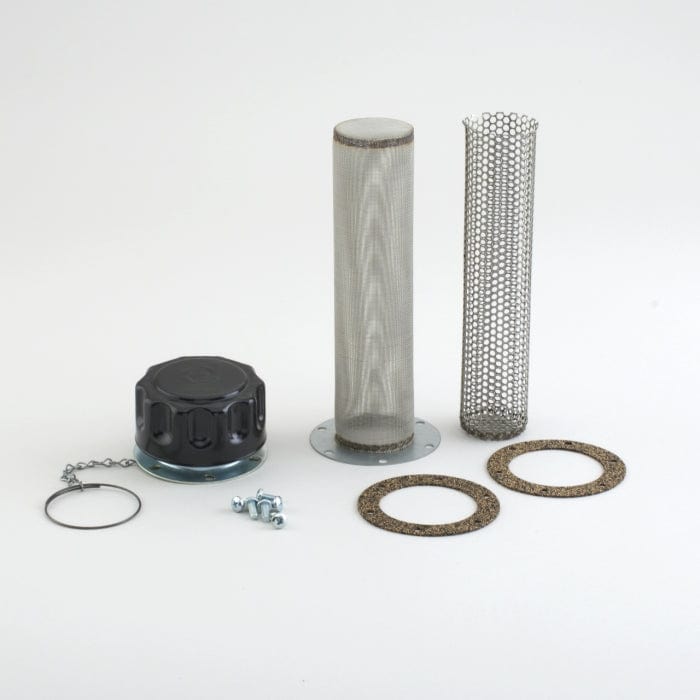

• Donaldson Filler Breather Assembly - Donaldson P562610
1 1

Filler Breather Assembly - Donaldson P562610

Filler Breather Assembly - Donaldson P562610

£87.52
£87.52
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P562610

Filler Breather Assembly
Outer Diameter 3.15 inch (80 mm)
Length 10.23 inch (259.9 mm)
Flange Diameter 3.27 inch (83 mm)
Bolt Hole Diameter 0.24 inch (6 mm)
Bolt Hole Circle Diameter 2.87 inch (73 mm)
Number of Bolt Holes 6
Efficiency Beta 20 3 micron
View full details

Specifications

Attributes

  • Outer Diameter: 80 mm (3.15 inch)
  • Length: 259.9 mm (10.23 inch)
  • Flange Diameter: 83 mm (3.27 inch)
  • Bolt Hole Diameter: 6 mm (0.24 inch)
  • Bolt Hole Circle Diameter: 73 mm (2.87 inch)
  • Number of Bolt Holes: 6
  • Efficiency Beta 20: 3 micron

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.305 m (12.20 inch)
  • Packaged Weight: 0.449 kg (0.99 lb)
  • Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421398590
  • UPC Code: 742330154533

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ALLIED SYSTEM 254285
IOWA MOOD TOOLING INC 71412010
LHA ABBW038SIG
