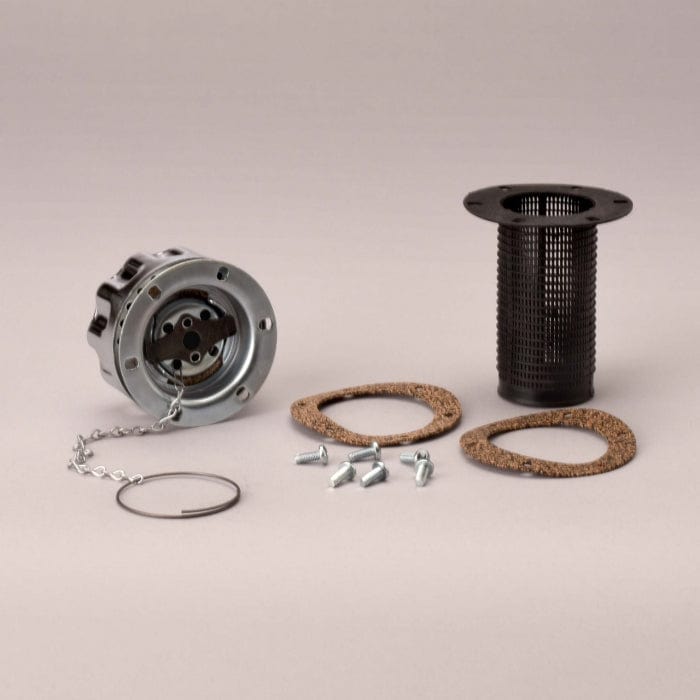

Filler Breather Assembly - Donaldson P562584

Filler Breather Assembly - Donaldson P562584

£19.21
£19.21
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P562584

Filler Breather Assembly
Outer Diameter 3.15 inch (80 mm)
Length 5.98 inch (152 mm)
Flange Diameter 3.27 inch (83 mm)
Bolt Hole Diameter 0.24 inch (6 mm)
Bolt Hole Circle Diameter 2.87 inch (73 mm)
Number of Bolt Holes 6
Efficiency Beta 20 10 micron
View full details

Specifications

Attributes

  • Outer Diameter: 80 mm (3.15 inch)
  • Length: 152 mm (5.98 inch)
  • Flange Diameter: 83 mm (3.27 inch)
  • Bolt Hole Diameter: 6 mm (0.24 inch)
  • Bolt Hole Circle Diameter: 73 mm (2.87 inch)
  • Number of Bolt Holes: 6
  • Efficiency Beta 20: 10 micron

Packaged Dimensions

  • Packaged Length: 0.093 m (3.70 inch)
  • Packaged Width: 0.090 m (3.60 inch)
  • Packaged Height: 0.175 m (7.00 inch)
  • Packaged Weight: 0.291 kg (0.64 lb)
  • Packaged Volume: 0.002 m3 (0.05 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421392590
  • UPC Code: 742330154281

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
LENZ 57XL10N
LHA ABB10N
