• Donaldson Filler Breather Assembly - Donaldson P562562
1 1

Filler Breather Assembly - Donaldson P562562

Filler Breather Assembly - Donaldson P562562

£20.19
£20.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

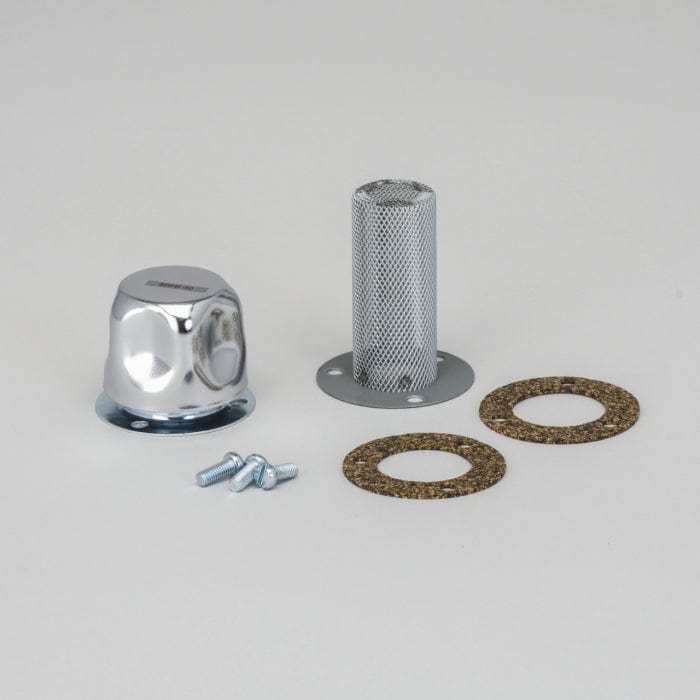

Donaldson P562562

Filler Breather Assembly
Outer Diameter 1.85 inch (47 mm)
Length 4.33 inch (110 mm)
Flange Diameter 2.01 inch (51 mm)
Bolt Hole Diameter 0.24 inch (6 mm)
Bolt Hole Circle Diameter 1.61 inch (41 mm)
Number of Bolt Holes 3
Efficiency Beta 20 40 micron
View full details

Specifications

Attributes

  • Outer Diameter: 47 mm (1.85 inch)
  • Length: 110 mm (4.33 inch)
  • Flange Diameter: 51 mm (2.01 inch)
  • Bolt Hole Diameter: 6 mm (0.24 inch)
  • Bolt Hole Circle Diameter: 41 mm (1.61 inch)
  • Number of Bolt Holes: 3
  • Efficiency Beta 20: 40 micron

Packaged Dimensions

  • Packaged Length: 0.058 m (2.30 inch)
  • Packaged Width: 0.055 m (2.20 inch)
  • Packaged Height: 0.128 m (5.10 inch)
  • Packaged Weight: 0.111 kg (0.25 lb)
  • Packaged Volume: 0.000 m3 (0.01 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 8421398590
  • UPC Code: 742330154076

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
JLG 7041589
LHA MBB40N
