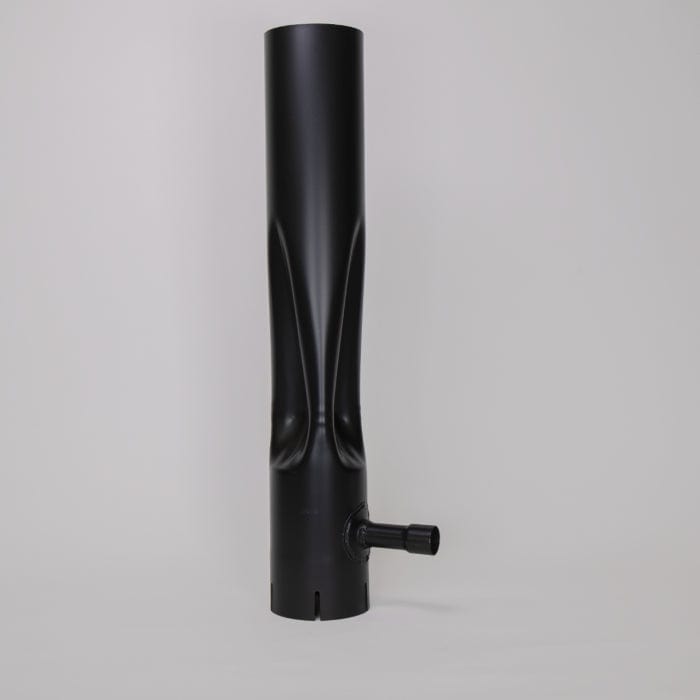

Exhaust Ejector, Standard - Donaldson H001035

Exhaust Ejector, Standard - Donaldson H001035

£218.41
£218.41
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H001035

Exhaust Ejector, Standard
Length 29.50 inch (749.3 mm)
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 1.50 inch (38 mm)
Style Standard
View full details

Specifications

Attributes

  • Length: 749.3 mm (29.50 inch)
  • Inlet Diameter: 127.64 mm (5.03 inch)
  • Outlet Diameter: 38 mm (1.50 inch)
  • Style: Standard

Packaged Dimensions

  • Packaged Length: 0.813 m (32.50 inch)
  • Packaged Width: 0.263 m (10.50 inch)
  • Packaged Height: 0.150 m (6.00 inch)
  • Packaged Weight: 4.540 kg (10.00 lb)
  • Packaged Volume: 0.033 m3 (1.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-05
  • HTS Code: 8708923500
  • UPC Code: 742330002988

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASTRA 106113
CASE/CASE IH 1849479
CASE/CASE IH 151849479
CHAMPION ROAD 56109
DRONNINGBORG 46484400
FIAT 151849479
FIAT 1849479
HANOMAG TRAKTOREN 3073102M91
HAVAM HD2017
INGERSOLL RAND 92794437
KOMATSU 1437118H91
LIEBHERR 10411958
LOESING 020332
LOESING 20332
NEW HOLLAND 151849479
RENAULT VI 5010291282
SCANIA 1421027
VOLVO 56109
WALGAHN-MOTORENTECHN 00810207
WALGAHN-MOTORENTECHN 810207
