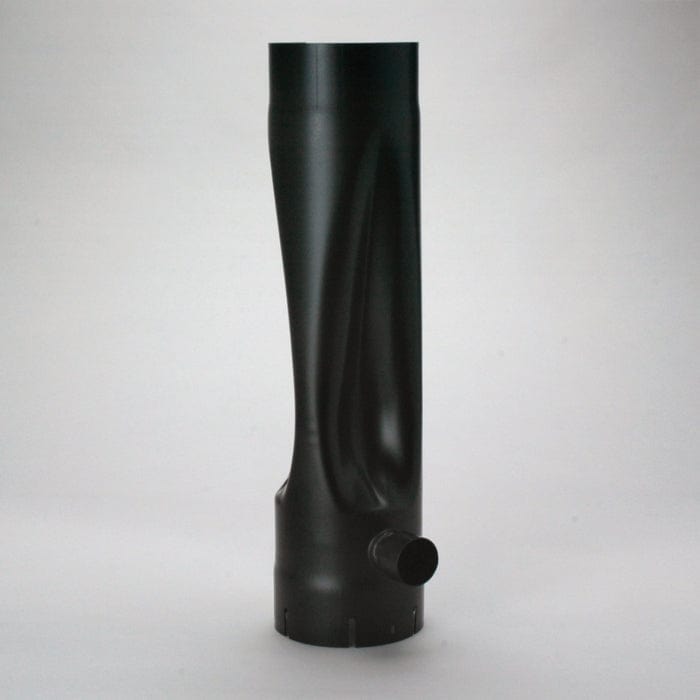

Exhaust Ejector, 6.1 In (155 Mm) Id - Donaldson H002768

Exhaust Ejector, 6.1 In (155 Mm) Id - Donaldson H002768

£238.34
£238.34
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002768

Exhaust Ejector, 6.1 In (155 Mm) Id
Length 24.00 inch (609.6 mm)
Inlet Diameter 6.19 inch (157.23 mm)
Outlet Diameter 2.00 inch (50.8 mm)
Rated Flow LR 2391 cfm (67.7 m³/min)
Rated Flow HR 3397 cfm (96.2 m³/min)
Connection ID
View full details

Specifications

Attributes

  • Length: 609.6 mm (24.00 inch)
  • Inlet Diameter: 157.23 mm (6.19 inch)
  • Outlet Diameter: 50.8 mm (2.00 inch)
  • Rated Flow LR: 67.7 m³/min (2391 cfm)
  • Rated Flow HR: 96.2 m³/min (3397 cfm)
  • Connection: ID

Packaged Dimensions

  • Packaged Length: 0.675 m (27.00 inch)
  • Packaged Width: 0.190 m (7.60 inch)
  • Packaged Height: 0.263 m (10.50 inch)
  • Packaged Weight: 4.358 kg (9.60 lb)
  • Packaged Volume: 0.035 m3 (1.25 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 120900
  • HTS Code: 8708923500
  • UPC Code: 742330220832

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FREIGHTLINER DNH002132
IVECO 50432459
LOESING 21463
