Engine Timing Adaptor Kit - for VW Group 1.2 TSi Petrol - (Laser 8866)

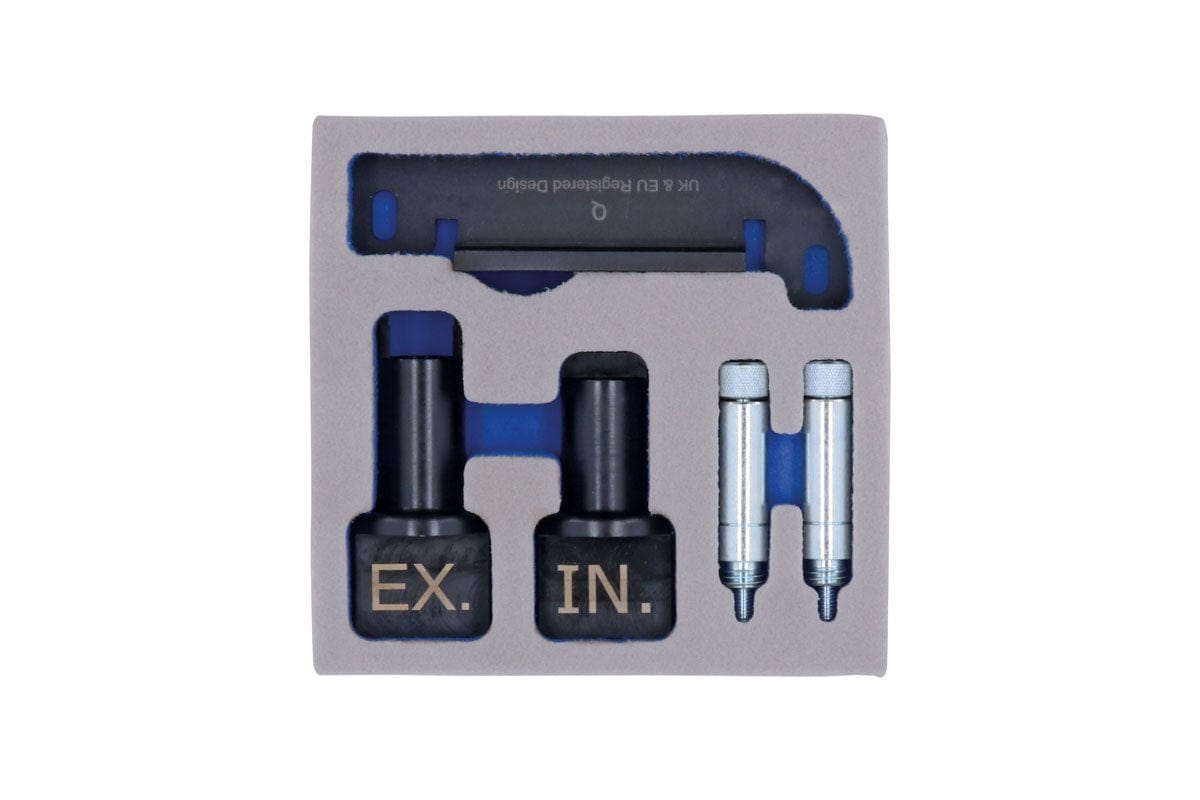

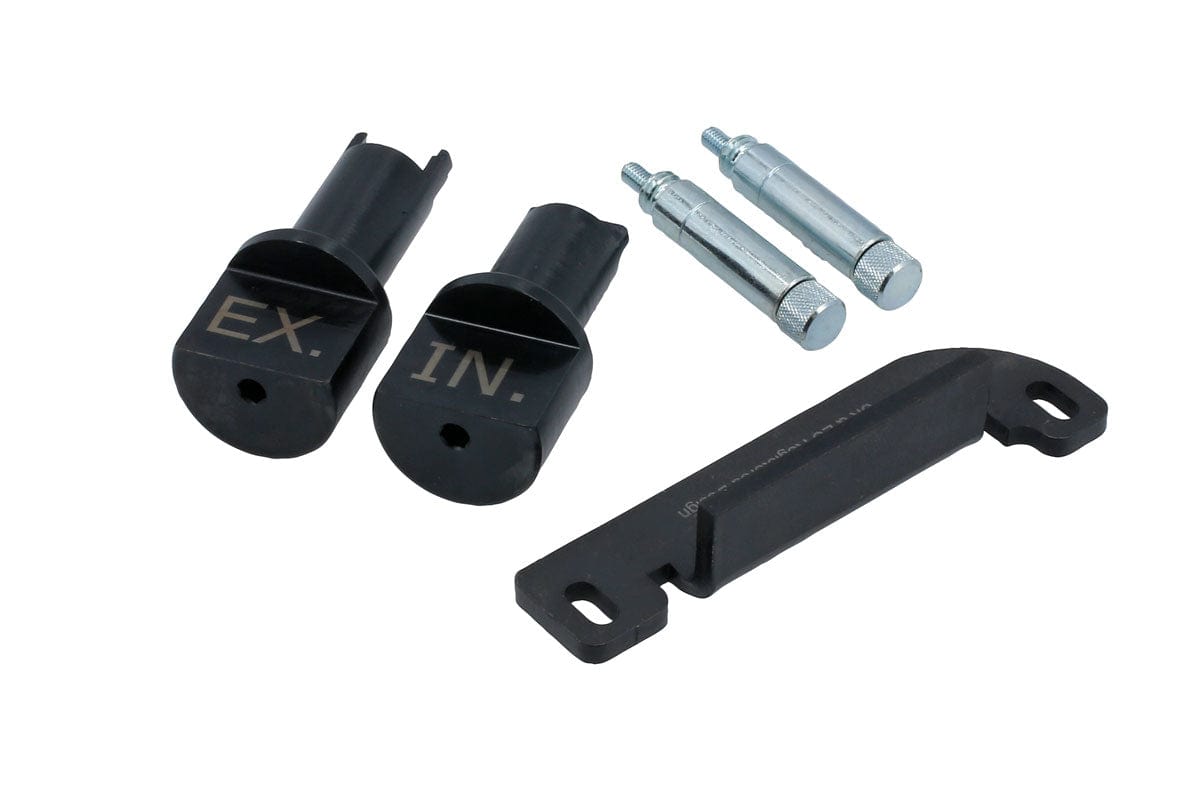

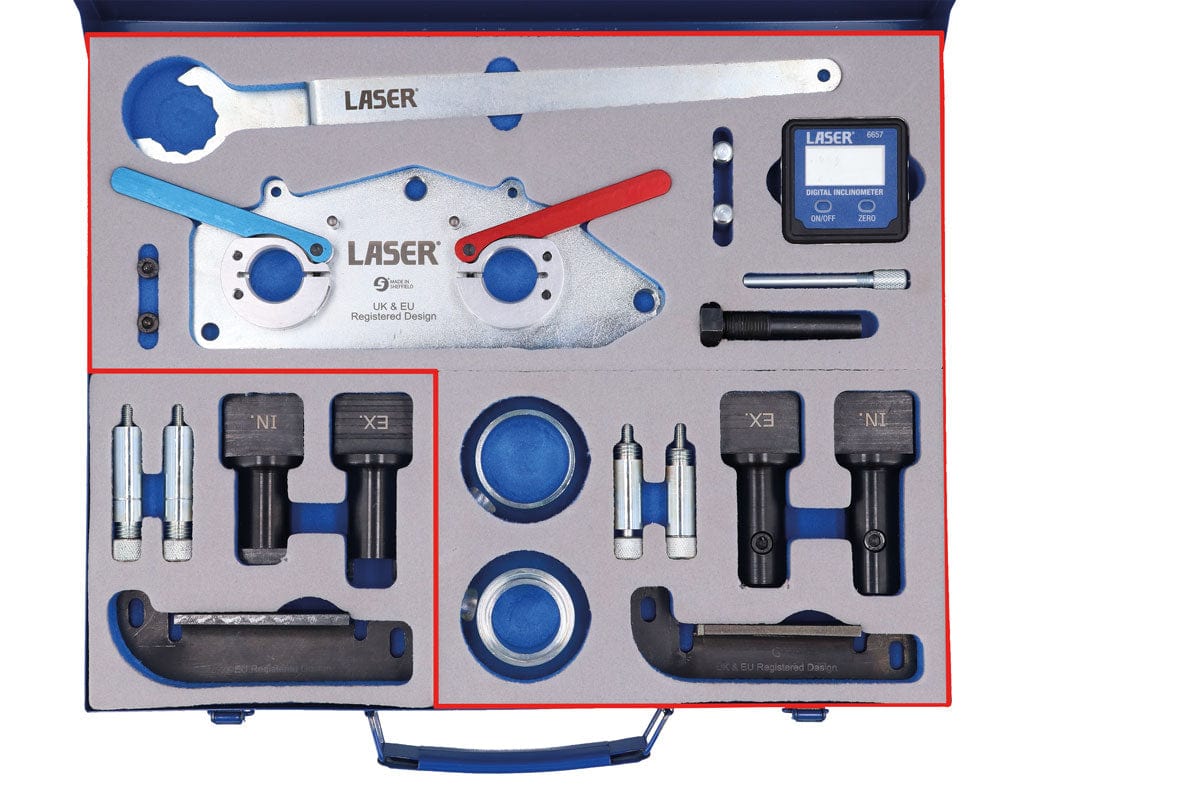

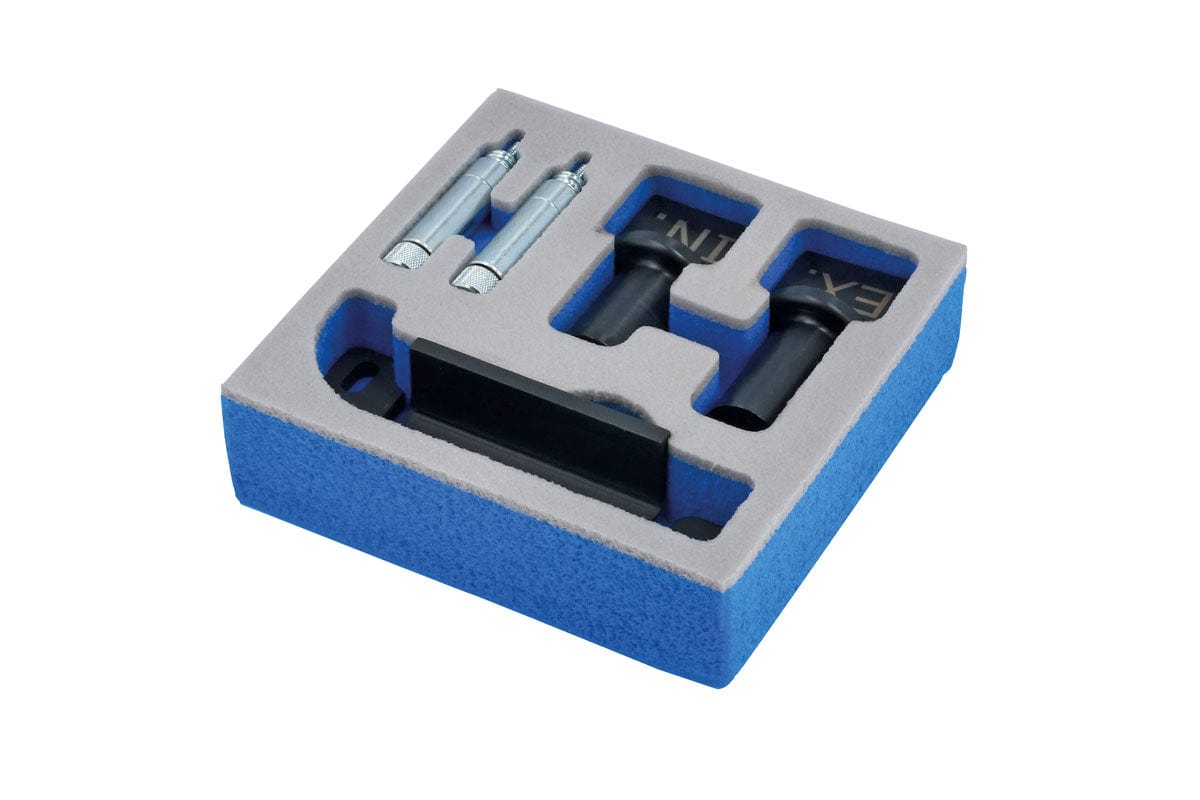

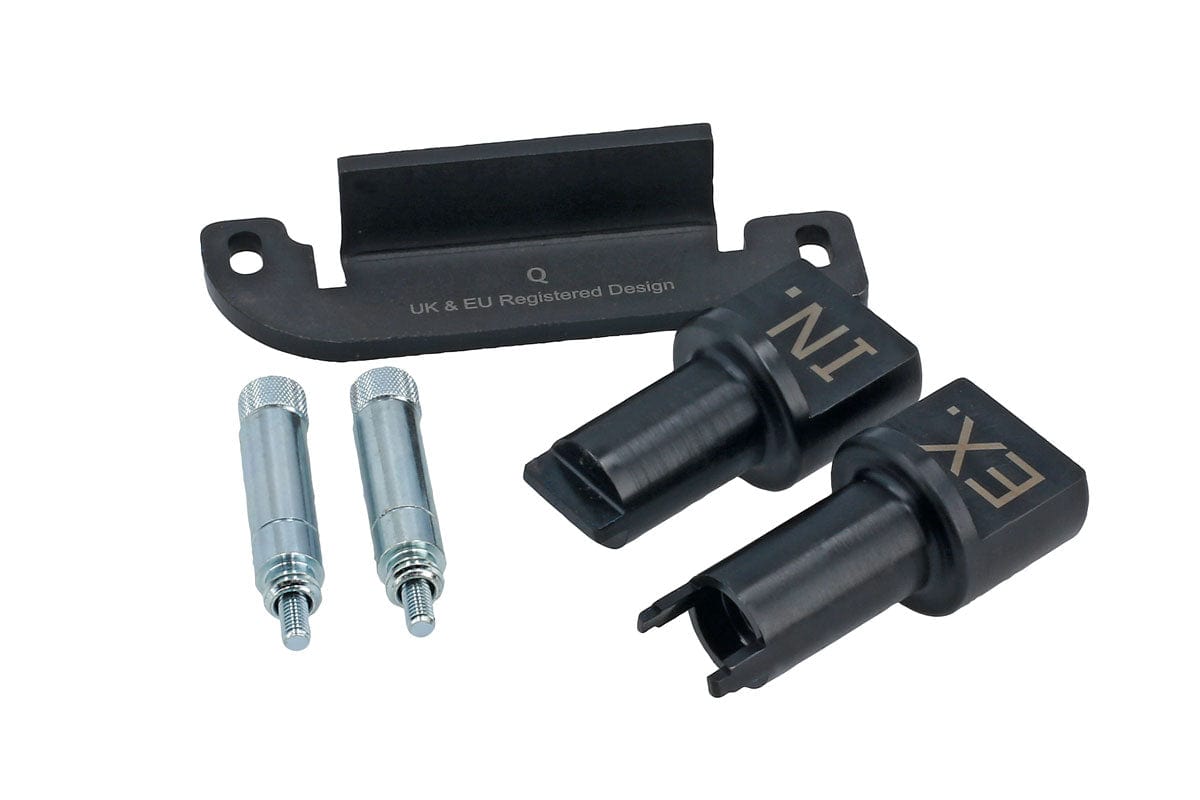

The Laser 8866 kit has been developed to allow the Laser 8824 Engine timing kit to be used to align, set and check the camshaft timing of the earlier Volkswagen group 3 and 4 cylinder TSI petrol engines. The kit allows the battery powered digital inclinometer and mounting bracket from the 8824 kit to be used to accurately set the camshaft timing on the earlier versions of the EA211 engines using the latest methodology. There should be no need for interaction with the vehicles OBD system if following the correct Laser tools procedure while making the alignment.

• Applications include: Audi (from 2017), Seat (from 2015), Skoda (from 2015) & Volkswagen (from 2015).
• Engine applications include 1.0L, 1.2L, & 1.4L TSI petrol engines - for full engine code list please see applications below.
• Engine variants include: TSi ACT , EA211 3 & 4 cylinder (without ACT).
• Use only in accordance with Laser Tools 8866 instructions. Use with Laser Part No. 8824. NOTE: for engine codes CPTA, CZDB, CZEA use (Laser Part No. 6554).
• Camshaft pulley holding tools (Laser Part Nos. 7279 & 8421) or similar must be used when loosening or tightening the camshaft pulleys. Made in Sheffield. EU & UK Registered Design.
