• Donaldson Elbow, 90 Degree Reducer Rubber - Donaldson P536163
1 1

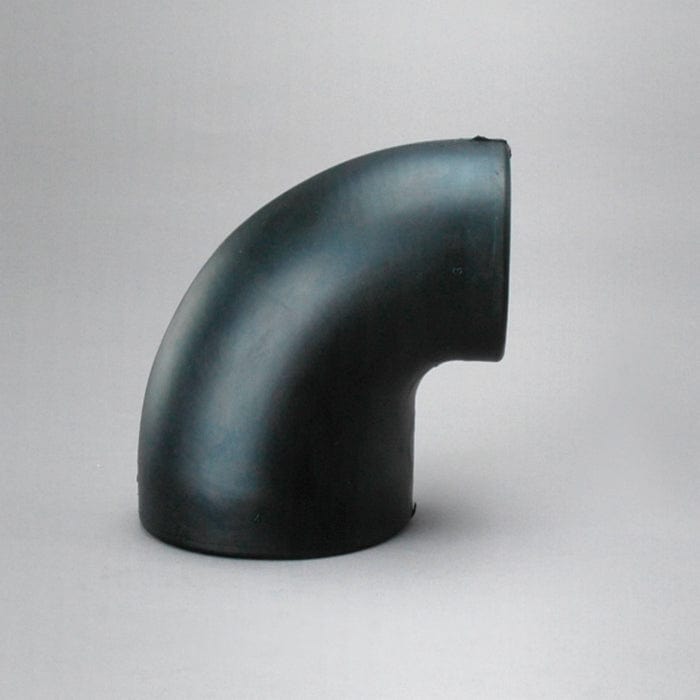

Elbow, 90 Degree Reducer Rubber - Donaldson P536163

Elbow, 90 Degree Reducer Rubber - Donaldson P536163

£20.31
£20.31
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P536163

Elbow, 90 Degree Reducer Rubber
View full details

Specifications

Attributes

  • Inner Diameter: 76 mm (2.99 inch)
  • Inner Diameter 2: 102 mm (4.02 inch)
  • Center Height: 114 mm (4.49 inch)
  • Radius: 76 mm (2.99 inch)
  • Material: Rubber
  • Angle: 90 Degrees

Packaged Dimensions

  • Packaged Length: 0.113 m (4.50 inch)
  • Packaged Width: 0.113 m (4.50 inch)
  • Packaged Height: 0.150 m (6.00 inch)
  • Packaged Weight: 0.400 kg (0.88 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 051590-03
  • HTS Code: 4016999790
  • UPC Code: 742330128923

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS COPCO 1310030696
BRODERSON 60012215
CASE/CASE IH N90HL40R30
CATERPILLAR 2982654
CHAMPION ROAD 561162
CLARK 3658341
COMPAIR 1075A83650
DIAMOND 2506307
ELGIN 1078878
GROVE 603584
HAY & FORAGE 700722195
KOBELCO KPCE031
MANITOWOC 603584
MARINE TRAVELIFT, INC. 603584
MORBARK 29321358
SCHAEFF P536163016150
TYLER POWER PRODUCTS 68875
TYMCO 20583
VERMEER 280923001
VERMEER 2809230011
