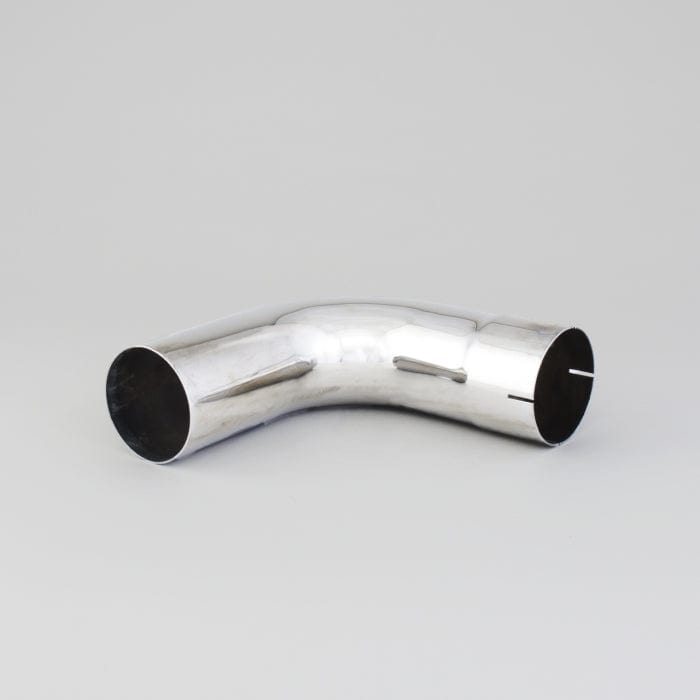

Elbow, 90 Degree 4 In (102 Mm) Od-Id Chrome - Donaldson P207345

Elbow, 90 Degree 4 In (102 Mm) Od-Id Chrome - Donaldson P207345

£157.44
£157.44
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P207345

Elbow, 90 Degree 4 In (102 Mm) Od-Id Chrome
View full details

Specifications

Attributes

  • Outer Diameter: 101.35 mm (3.99 inch)
  • Inner Diameter: 101.35 mm (3.99 inch)
  • Leg Length 1: 254 mm (10.00 inch)
  • Leg Length 2: 254 mm (10.00 inch)
  • Radius: 178 mm (7.01 inch)
  • Material: Chrome
  • Connection: OD-ID
  • Angle: 90 Degrees

Packaged Dimensions

  • Packaged Length: 0.365 m (14.60 inch)
  • Packaged Width: 0.355 m (14.20 inch)
  • Packaged Height: 0.133 m (5.30 inch)
  • Packaged Weight: 2.134 kg (4.70 lb)
  • Packaged Volume: 0.018 m3 (0.64 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-06
  • HTS Code: 7307998099
  • UPC Code: 742330030356

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 9545
A P PARTS 809545
AP EXHAUST PRODUCTS INC 809545
DART PPP207345
DYNAFLEX 10400CP
EX AIR 401400
FORD 9575P207345
FREIGHTLINER DNP207345
INTERNATIONAL DCP207345
NELSON 90847C
NELSON 89105C
RIKER L400FPL
RIKER L400FSPL
STEMCO 2181002
TRUCKEX 809770
TRUCKEX 809621
TRUCKEX 809545
WALKER MANUFACTURING 29109
WALKER MANUFACTURING 35973
