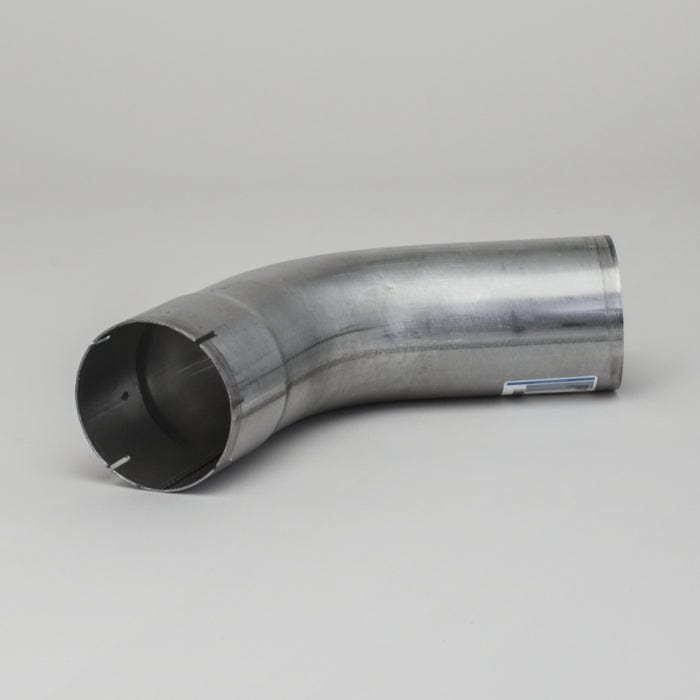

Elbow, 60 Degree 4 In (102 Mm) Od-Id - Donaldson J009640

Elbow, 60 Degree 4 In (102 Mm) Od-Id - Donaldson J009640

£47.02
£47.02
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson J009640

Elbow, 60 Degree 4 In (102 Mm) Od-Id
Wall Thickness 1.65 mm
Outer Diameter 3.98 inch (101.2 mm)
Inner Diameter 3.98 inch (101.2 mm)
Leg Length 1 8.00 inch (203.2 mm)
Leg Length 2 8.00 inch (203.2 mm)
Radius 5.00 inch (127 mm)
Connection OD-ID
Angle 60 Degrees
View full details

Specifications

Attributes

  • Wall Thickness: 1.65 mm
  • Outer Diameter: 101.2 mm (3.98 inch)
  • Inner Diameter: 101.2 mm (3.98 inch)
  • Leg Length 1: 203.2 mm (8.00 inch)
  • Leg Length 2: 203.2 mm (8.00 inch)
  • Radius: 127 mm (5.00 inch)
  • Connection: OD-ID
  • Angle: 60 Degrees

Packaged Dimensions

  • Packaged Length: 0.173 m (6.90 inch)
  • Packaged Width: 0.394 m (15.75 inch)
  • Packaged Height: 0.105 m (4.20 inch)
  • Packaged Weight: 1.487 kg (3.28 lb)
  • Packaged Volume: 0.007 m3 (0.26 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 019160-02
  • HTS Code: 7307998099
  • UPC Code: 742330079058

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 9640
CASE/CASE IH NJ009640
GETMAN 605477
MORBARK 29323809
NELSON 900081A
RIKER L40060
STEMCO 2991610
TRUCKEX 10640
WALKER MANUFACTURING 2722400
WALKER MANUFACTURING 41627
