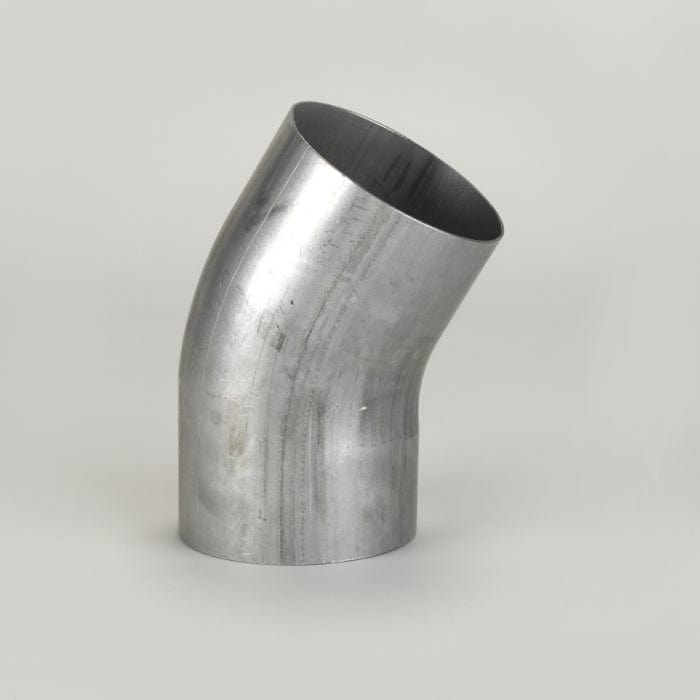

• Donaldson Elbow, 30 Degree 5 In (127 Mm) Od-Od - Donaldson J009637
1 1

Elbow, 30 Degree 5 In (127 Mm) Od-Od - Donaldson J009637

Elbow, 30 Degree 5 In (127 Mm) Od-Od - Donaldson J009637

£46.07
£46.07
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson J009637

Elbow, 30 Degree 5 In (127 Mm) Od-Od
Outer Diameter 4.99 inch (126.62 mm)
Leg Length 1 4.00 inch (101.6 mm)
Leg Length 2 4.00 inch (101.6 mm)
Radius 5.50 inch (139.7 mm)
Connection OD-OD
Angle 30 Degrees
View full details

Specifications

Attributes

  • Outer Diameter: 126.62 mm (4.99 inch)
  • Leg Length 1: 101.6 mm (4.00 inch)
  • Leg Length 2: 101.6 mm (4.00 inch)
  • Radius: 139.7 mm (5.50 inch)
  • Connection: OD-OD
  • Angle: 30 Degrees

Packaged Dimensions

  • Packaged Length: 0.225 m (9.00 inch)
  • Packaged Width: 0.150 m (6.00 inch)
  • Packaged Height: 0.125 m (5.00 inch)
  • Packaged Weight: 0.885 kg (1.95 lb)
  • Packaged Volume: 0.004 m3 (0.16 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 019160-02
  • HTS Code: 7307998099
  • UPC Code: 742330079027

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 9637
BADGER 76093320
DYNAFLEX 10T50030
GRADALL X5103067
HEAVY DUTY MFG 11A50030
HEAVY DUTY MFG 11A50030A
NELSON 900078A
RIKER L50030NE
STEMCO 2298036
STEMCO 2720500
TRUCKEX 10637
WALKER MANUFACTURING 2720500
WALKER MANUFACTURING 41616
