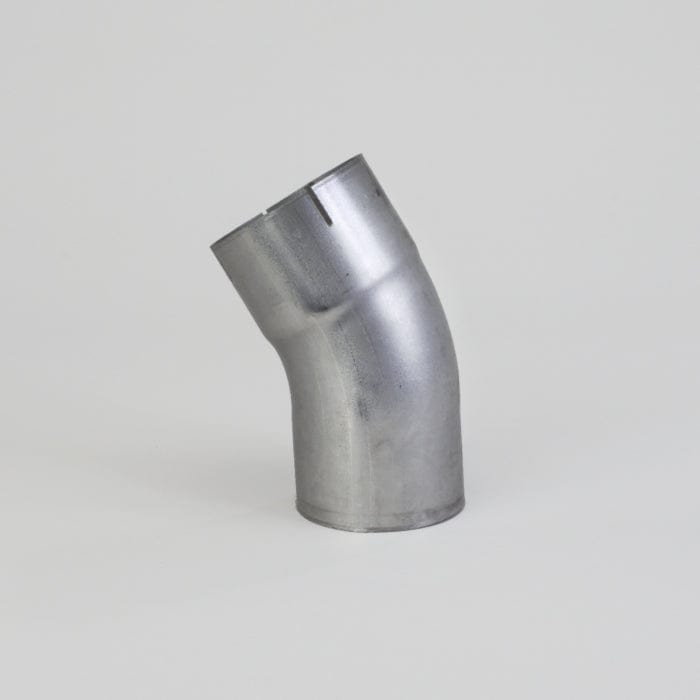

Elbow, 30 Degree 4 In (102 Mm) Od-Id - Donaldson J009632

Elbow, 30 Degree 4 In (102 Mm) Od-Id - Donaldson J009632

£52.25
£52.25
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson J009632

Elbow, 30 Degree 4 In (102 Mm) Od-Id
Wall Thickness 1.65 mm
Outer Diameter 4.02 inch (102 mm)
Inner Diameter 4.02 inch (102 mm)
Leg Length 1 4.02 inch (102 mm)
Leg Length 2 4.02 inch (102 mm)
Radius 5.00 inch (127 mm)
Connection OD-ID
Angle 30 Degrees
View full details

Specifications

Attributes

  • Wall Thickness: 1.65 mm
  • Outer Diameter: 102 mm (4.02 inch)
  • Inner Diameter: 102 mm (4.02 inch)
  • Leg Length 1: 102 mm (4.02 inch)
  • Leg Length 2: 102 mm (4.02 inch)
  • Radius: 127 mm (5.00 inch)
  • Connection: OD-ID
  • Angle: 30 Degrees

Packaged Dimensions

  • Packaged Length: 0.446 m (17.85 inch)
  • Packaged Width: 0.216 m (8.65 inch)
  • Packaged Height: 0.110 m (4.40 inch)
  • Packaged Weight: 0.781 kg (1.72 lb)
  • Packaged Volume: 0.011 m3 (0.39 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 019160-02
  • HTS Code: 7307998099
  • UPC Code: 742330078976

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 9632
NELSON 900073A
RIKER L40030
STEMCO 2991735
TRUCKEX 10632
WALKER MANUFACTURING 41619
