Elbow, 15 Degree 5 In (127 Mm) Od-Od - Donaldson P206396

Elbow, 15 Degree 5 In (127 Mm) Od-Od - Donaldson P206396

£56.02
£56.02
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P206396

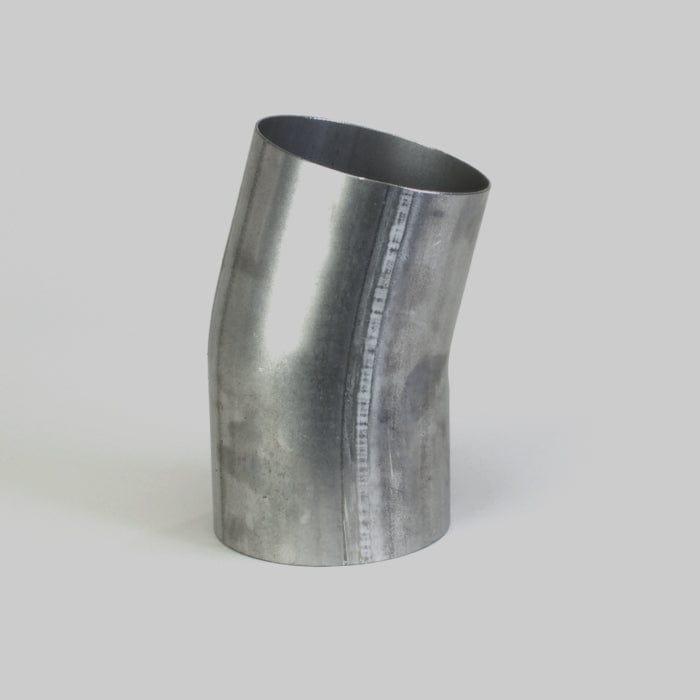

Elbow, 15 Degree 5 In (127 Mm) Od-Od
View full details

Specifications

Attributes

  • Outer Diameter: 126.62 mm (4.99 inch)
  • Leg Length 1: 101.2 mm (3.98 inch)
  • Leg Length 2: 101.2 mm (3.98 inch)
  • Radius: 139.7 mm (5.50 inch)
  • Connection: OD-OD
  • Angle: 15 Degrees

Packaged Dimensions

  • Packaged Length: 0.128 m (5.10 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.211 m (8.45 inch)
  • Packaged Weight: 0.928 kg (2.05 lb)
  • Packaged Volume: 0.004 m3 (0.15 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-07
  • HTS Code: 7307998099
  • UPC Code: 742330028964

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 8685
ACRAFIT 50EL15260A
AP EXHAUST PRODUCTS INC 10685
DYNAFLEX 11T50015
DYNAFLEX 11T500
DYNAFLEX 10T50015
FORD 9575P206396
FREIGHTLINER DNP206396
HEAVY DUTY MFG 11A50015A
HEAVY DUTY MFG 11A50015
HOIST LIFTTRUCK MANUFACTURING M15884
INTERNATIONAL DCP206396
NELSON 89133A
RIKER L50015
STEMCO 2690044
TRUCKEX 10685
WALKER MANUFACTURING 41217
