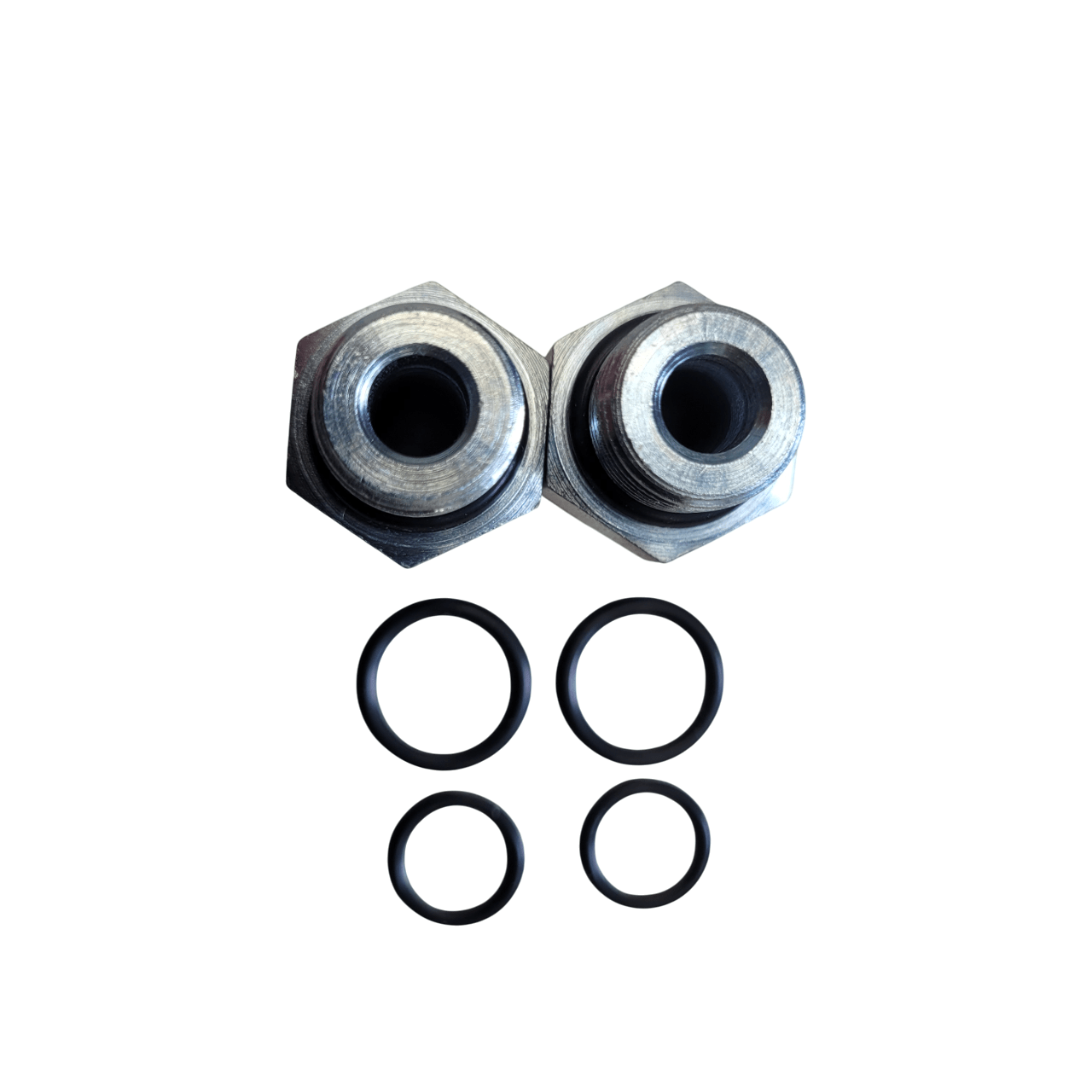

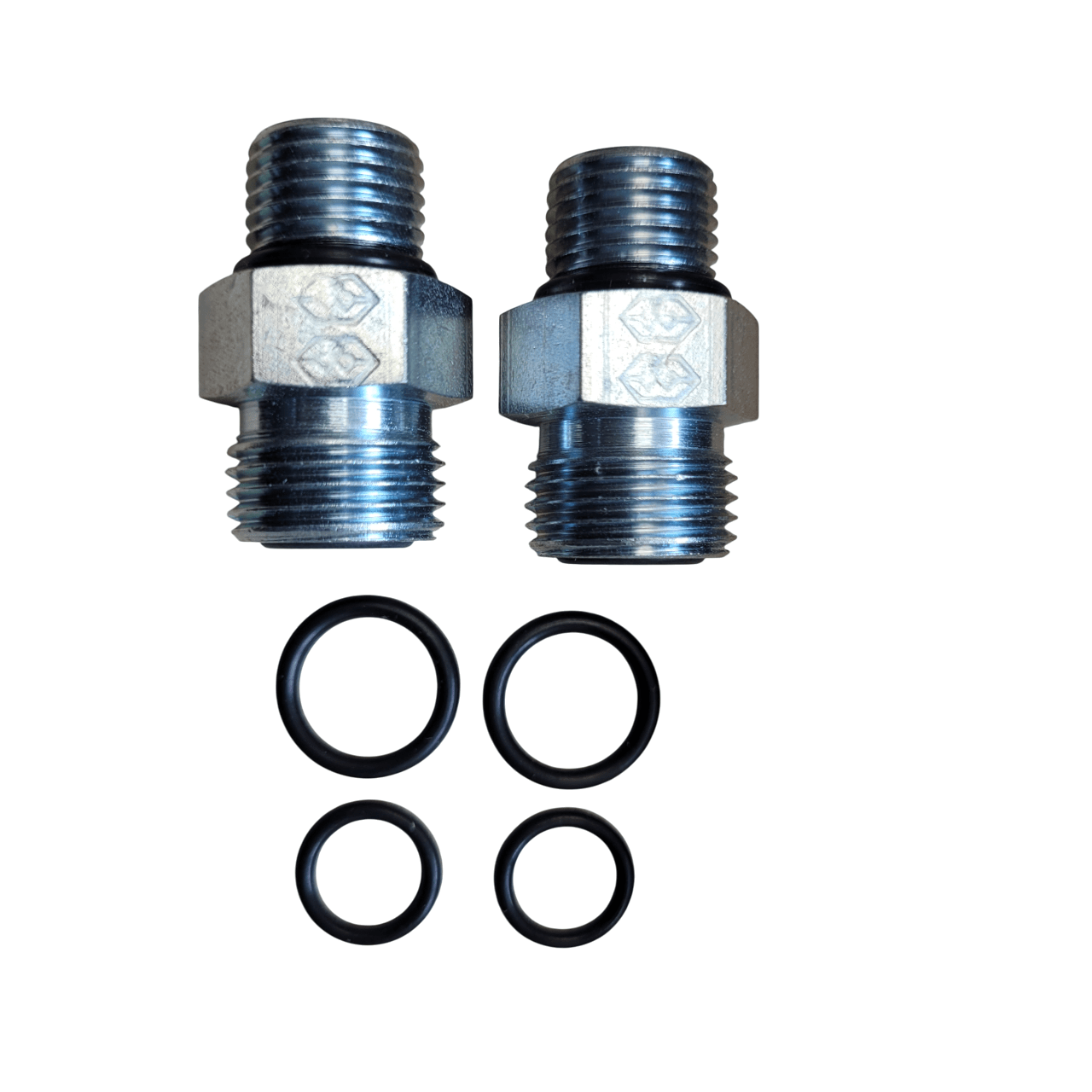

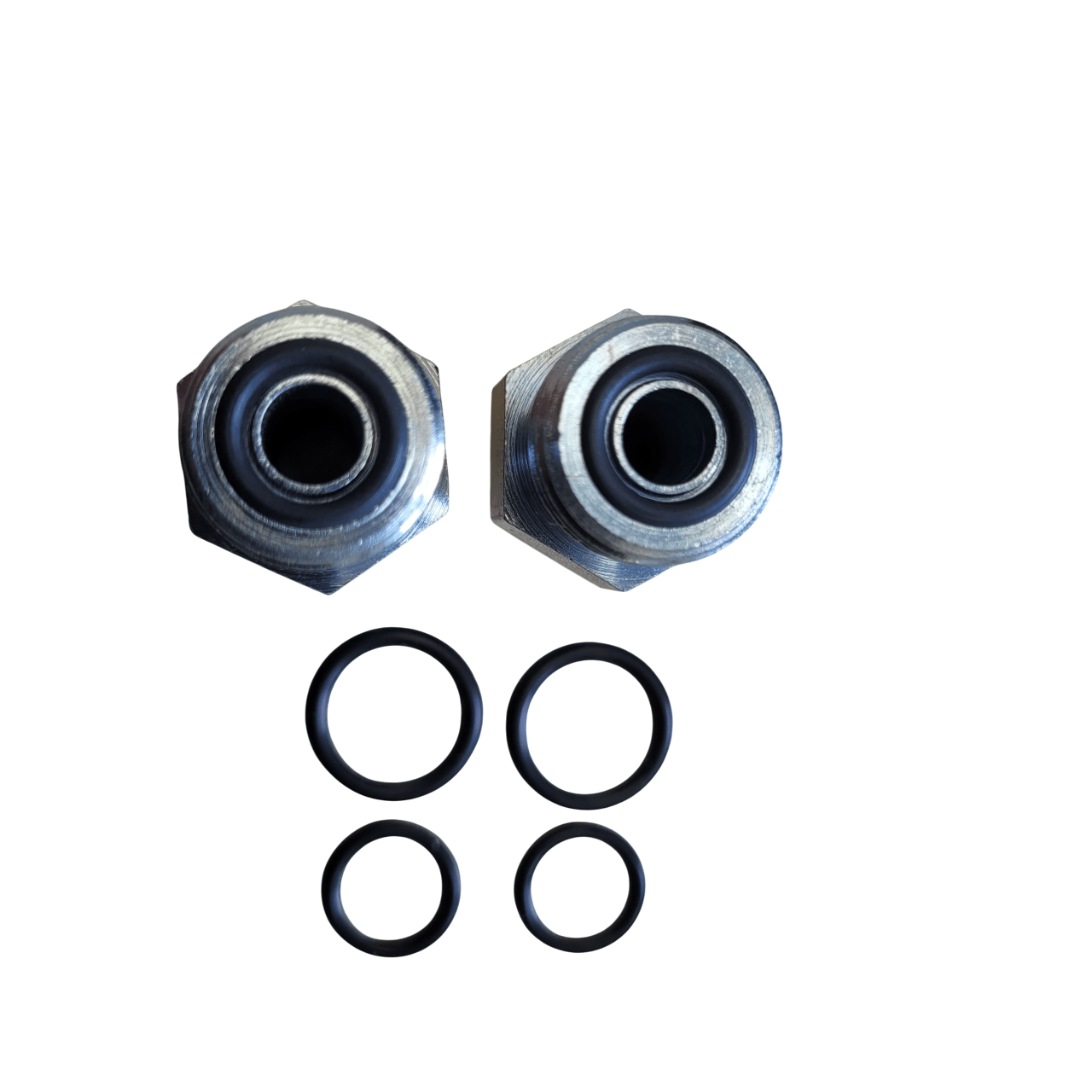

DOOSAN Steering Ram Unions & Seals Set

Type - straight
Number of connections - 2
Type of connection - outer thread
Biggest internal diameter D1 (mm) - 6.5
Number of connection 1 - 1
Diameter connection 1 D2 (mm) - 17.46
Thread size connection 11 - 1/16
Type of thread connection 1 - UN
Pitch inch connection 1 - 16
Right or left handed thread connection 1 - right-handed
Type of sealing connection 1, with thread only - O-ring
Number of connection 2 - 1
Diameter connection 2 D3 (mm) - 14.28
Thread size connection 2 - 9/16
Type of thread connection 2 - UNF
Pitch inch connection 2 - 18
Right or left handed thread connection 2 - right-handed
Type of sealing of connection 2, with thread only - without
Total length L1 (mm) - 32.2
Total height H1 (mm) - 19
Biggest external diameter D4 (mm) - 17.46
Bracket present - NO
Nut present - NO
Tube sleeve present - NO
Rotating - NO
Filter present - NO
Material - steel
Weight - 0.044
