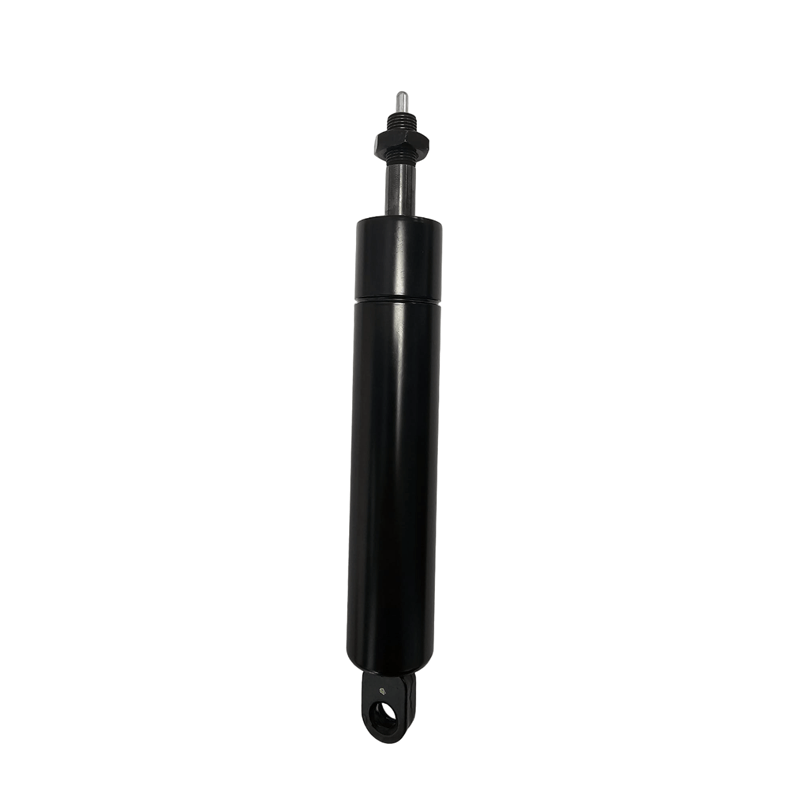

DOOSAN Steering Column Tilt Damper

Specification

Type of gas spring/shock absorber - pull type
Piston rod diameter D1 (mm) - 10
Strength (N) - 550.0
Centre distance C1 (mm) - 195
Operational length L2 (mm) - 30
Type of connection piston rod side - type L
Thread of mounting TA1a - M10
Ball present - NO
Bushing (a) present - NO
Type of connection piston side - type D
Width of the connection W1b (mm) -16
Diameter of the mounting eye D3b (mm) - 8
Connecting distance L4b (mm) - 14
Mounting thickness Tb (mm) - 8
Ball present - NO
Bushing (b) present - NO
Weight (kg) - 0.343
