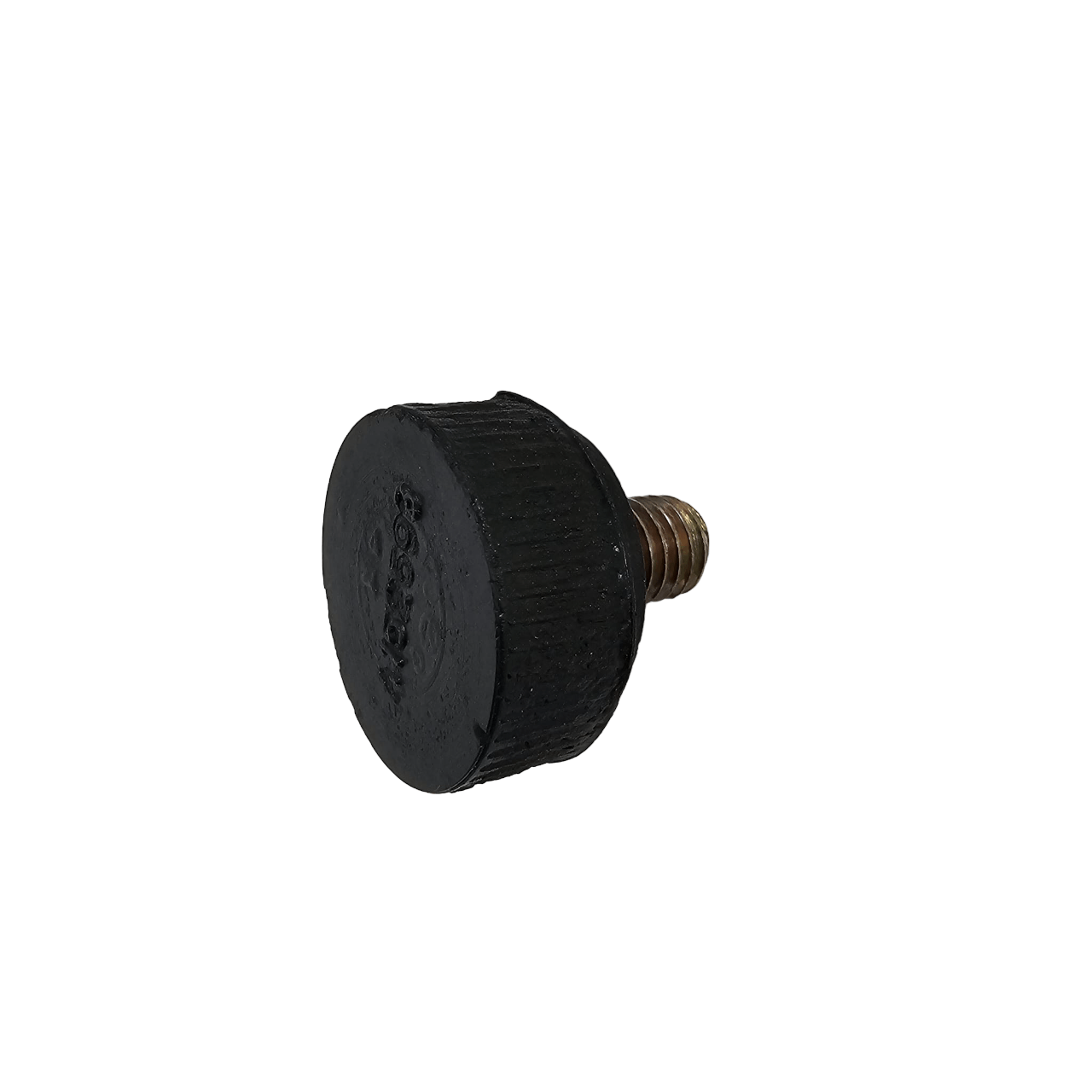

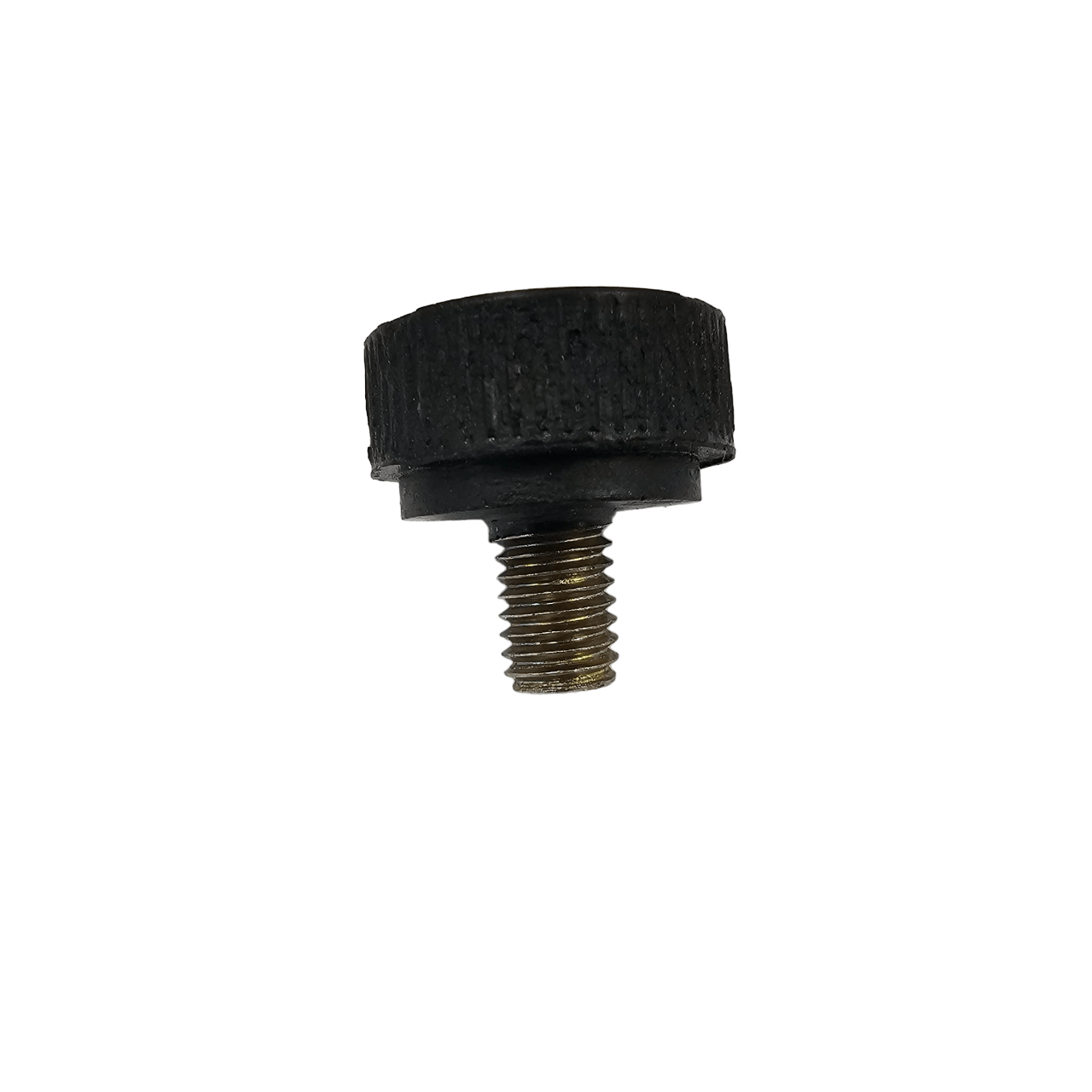

DOOSAN Panel Screw

Specification

Sort of screw - thumb screw
Sort of screw head - knurled head thumb screws
Type of screw head - high knurled head
Type of drive - manually
Helix of the thread - right-handed
Metric diameter of the thread D1-M (mm) - 8
Thread sizeTA1 - M8
Pitch (metric) TA1 (mm) - 1.25
Metric length between head and end L1-M (mm) - 12
Total length of the screw L3 (mm) - 24.4
Fully threaded - yes
Type of screw end - flat
Strength class - NAV
Type of material - plastic-steel
Unit of the thread - metric
Length of the thread L2 (mm) - 12
Largest thickness of the head TH1 (mm) - 12
Largest diameter of the head D3 (mm) - 24
Thread locker present on the thread - no
Movable lock washer present - no
Weight (kg) - 0.016
