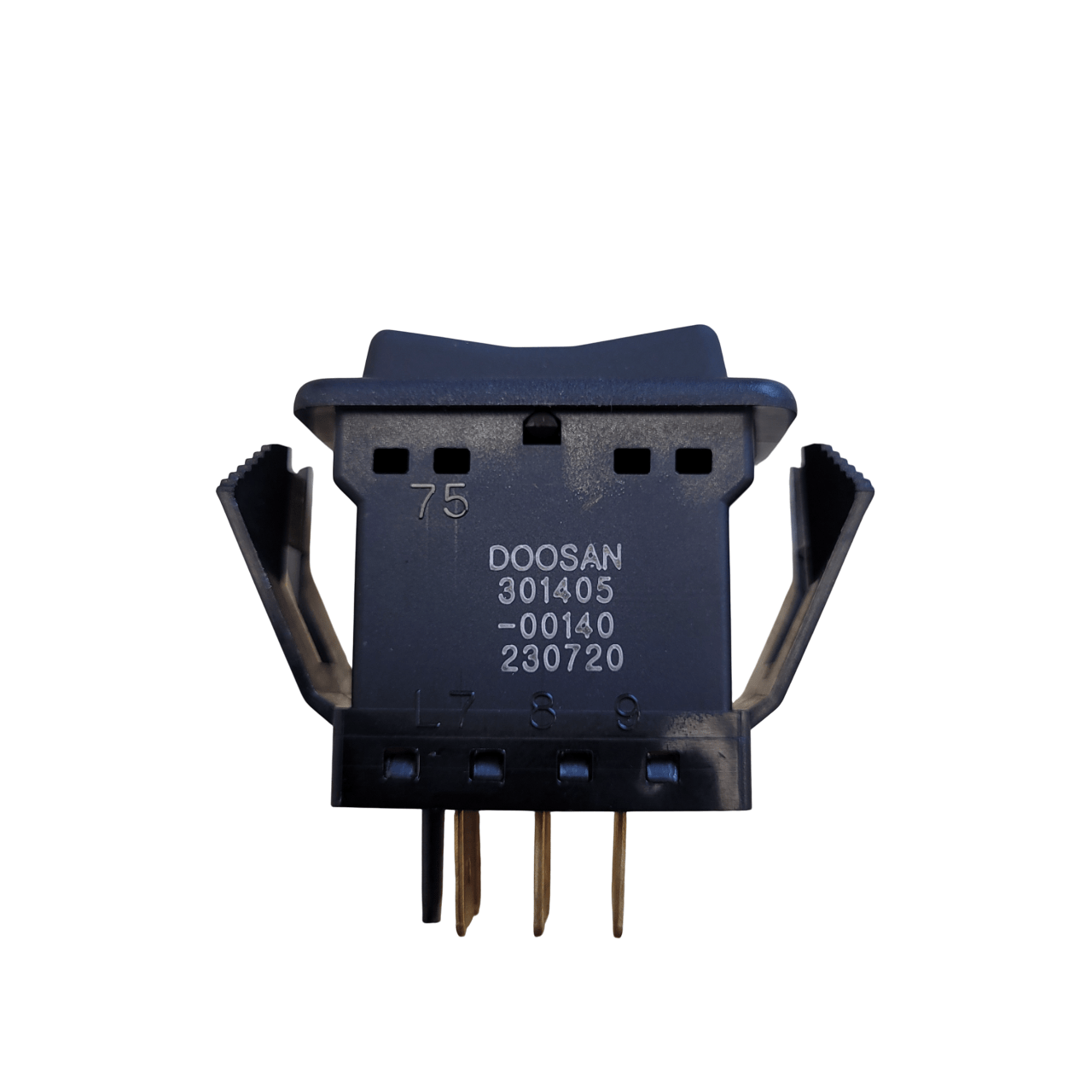

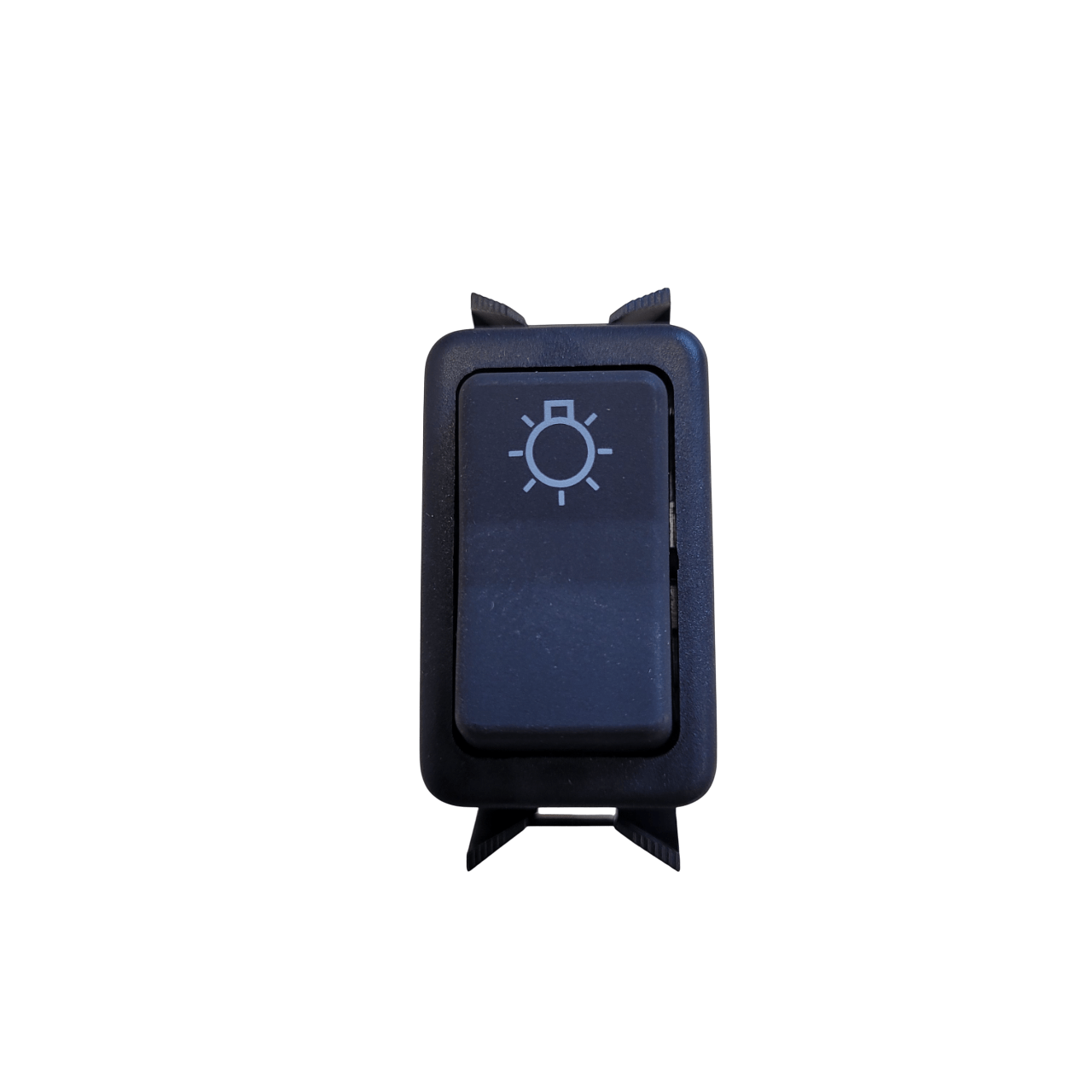

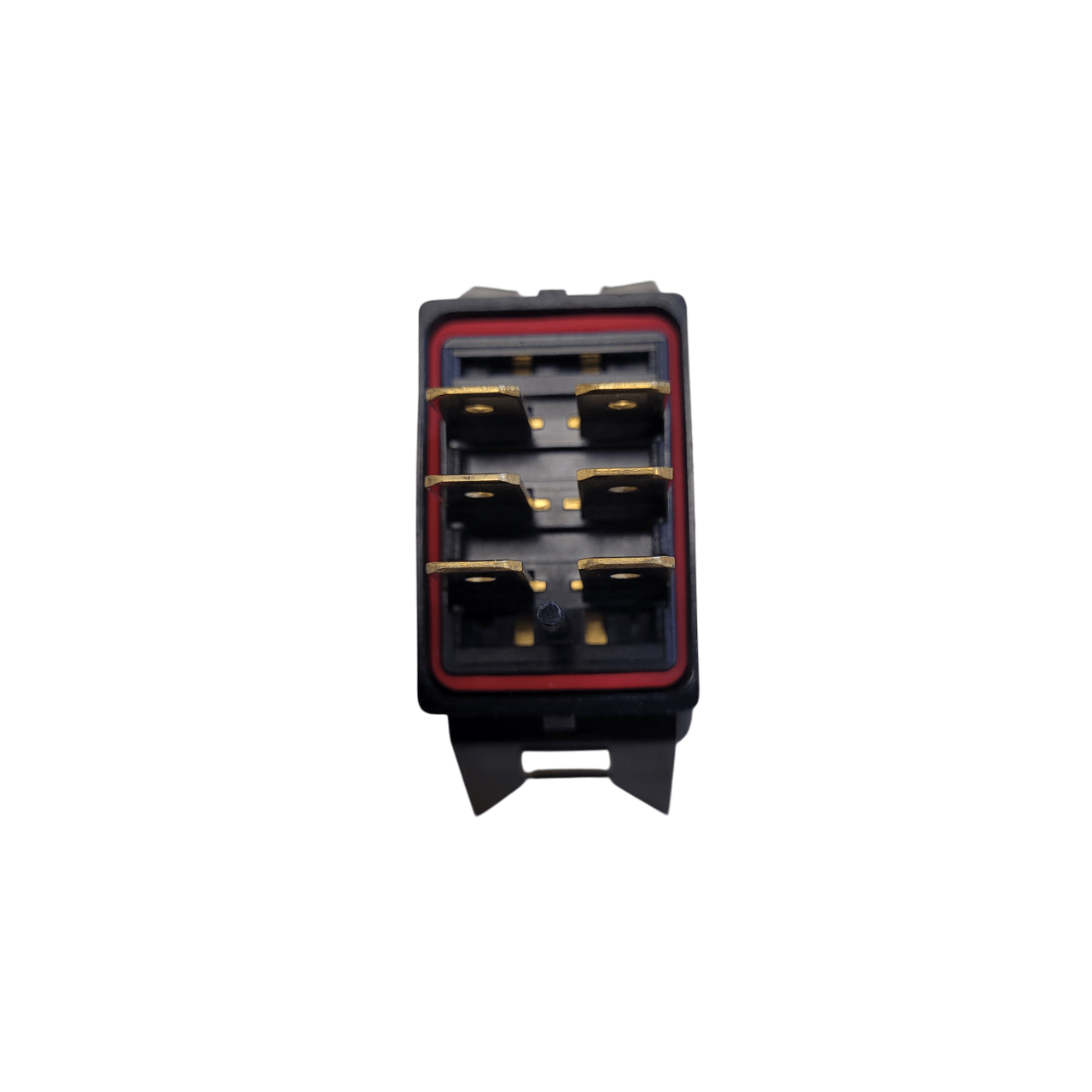

DOOSAN Headlight Switch 301405-00140 - D20S-5 D25S-5 D30S-5 D33S-5 D35C-5

Part Number - 301405-00140

Specification

Number of connections - 6
Type of the connection - Blade 6,3mm
Minimum voltage (V) - 12
Maximum voltage (V) - 24
Number of pins - 6
Built-in length of the rocker switch L1 (mm) - 37
Built-in width of the rocker switch W1 (mm) - 21
Built-in height of the rocker switch H1 (mm) - 40.5
Number of actuators - 1
Button present - YES
Material of the button - Plastic
Material of the housing - Plastic
Protection cap present - NO
Symbol present - Yes
Light present - No
Function - Light
Subtype of function - Light Light
Type of position of the first actuator - 3A
Type of switch of the first actuator - 3206B1
Number of poles in the switch - 2
Weight - 0.023
