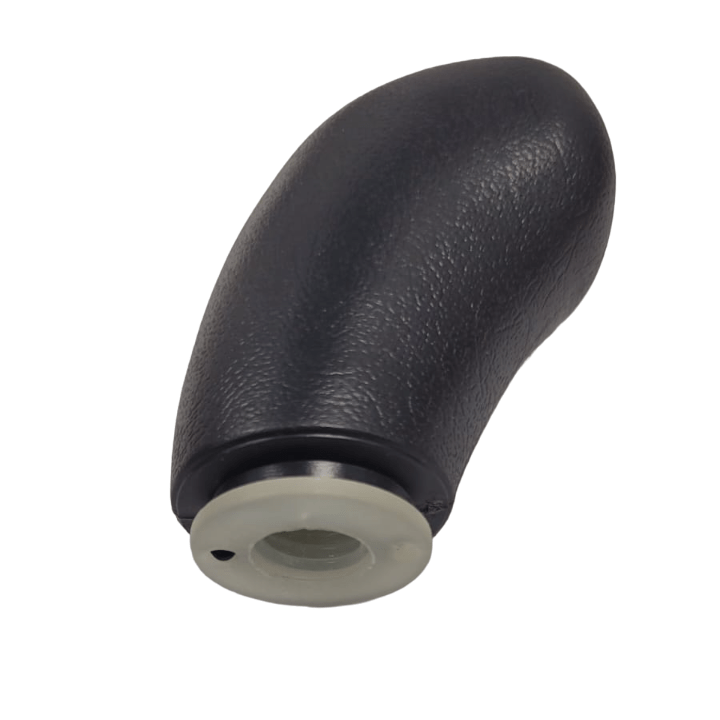

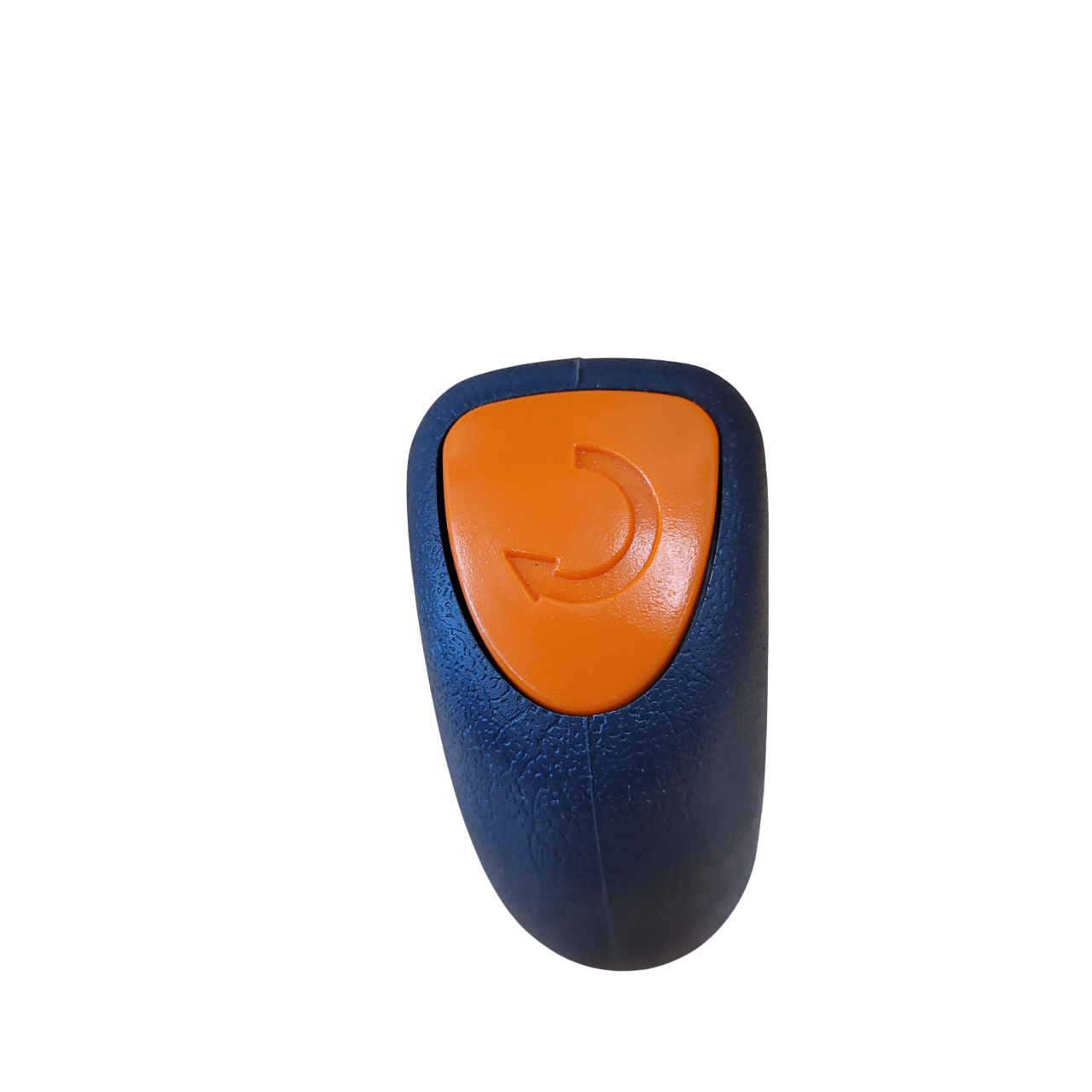

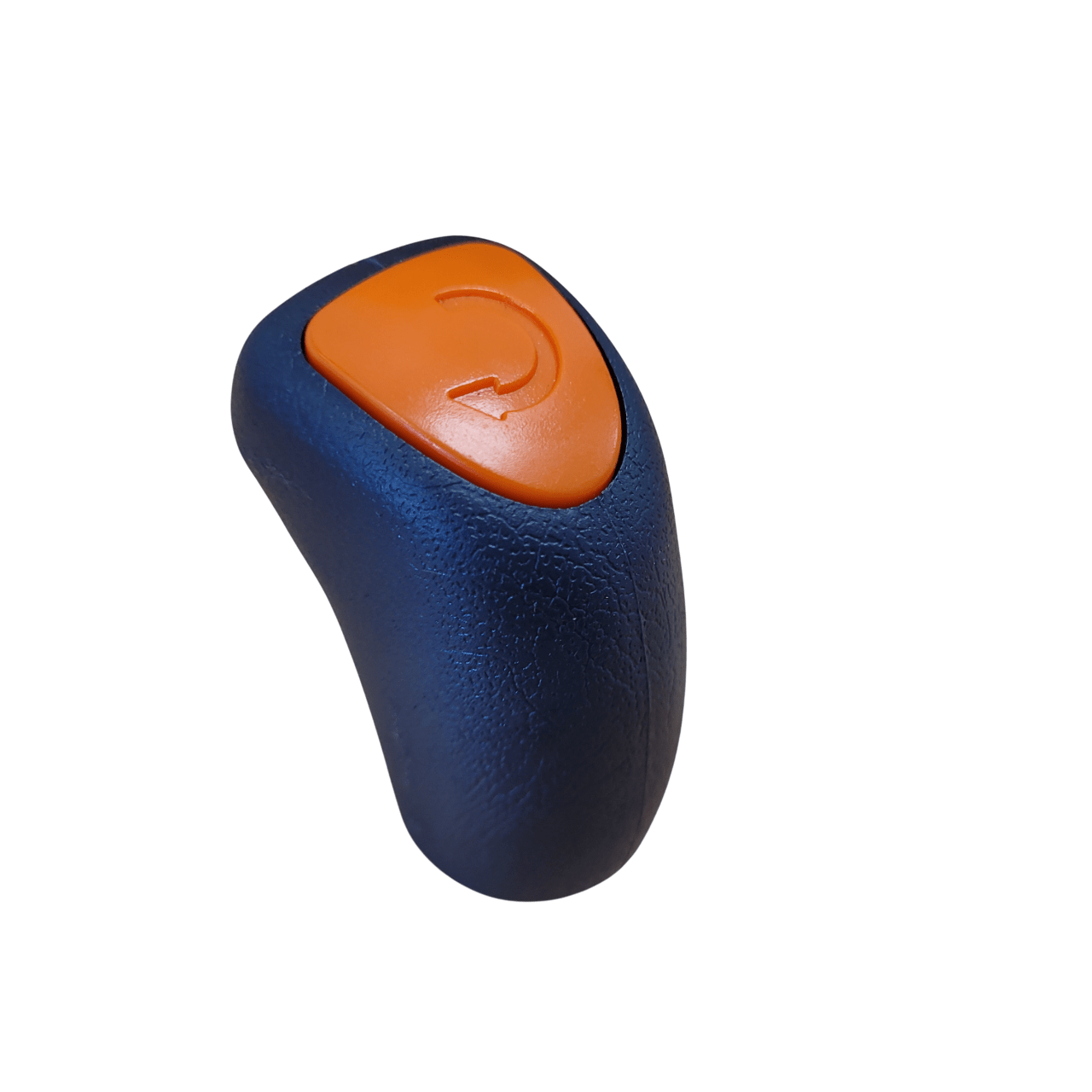

DOOSAN Control Lever Knob - Rotate D20S-5 D25S-5 D30S-5 D33S-5 D35C-5

Specification

Total height H1 (mm) - 64
External length L1 (mm) - 53
External width W1 (mm) - 33
Largest external diameter D1 (mm) - 31
Smallest external diameter D2 (mm) - 21
Inner diameter mounting hole D3 (mm) - 10.25
Depth mounting hole L3 (mm) - 30
Thread size - M12
Pitch metric (mm) - 1.75
Right or left handed thread - Right-handed
Unit of measurement - Metric
Thread length L4 (mm) - 26
Colour - Black-Orange
Universally usable - NO
Weight - 0.075
