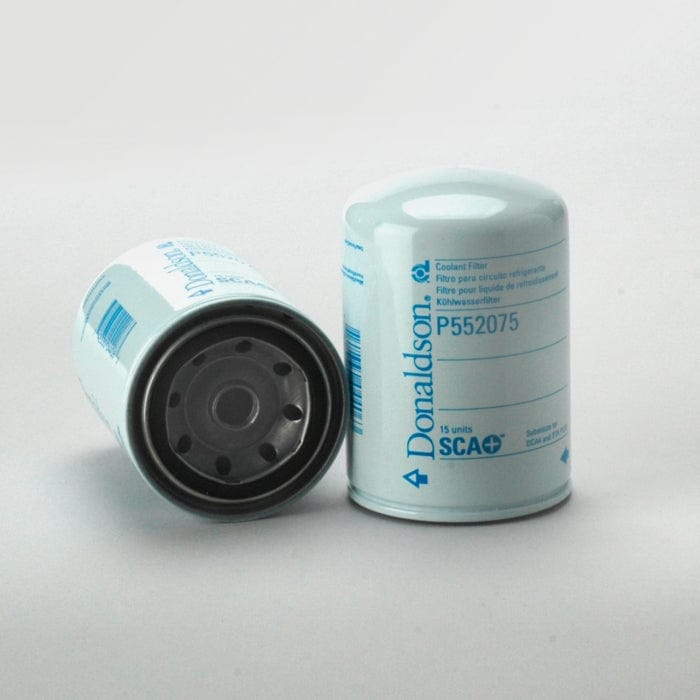

Coolant Filter, Spin-On Sca Plus - Donaldson P552075
Coolant Filter, Spin-On Sca Plus - Donaldson P552075
Regular price
£21.07
Regular price
Sale price
£21.07
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P552075
Coolant Filter, Spin-On Sca Plus| Outer Diameter | 3.70 inch (94 mm) |
| Thread Size | 11/16-16 UN |
| Length | 5.35 inch (136 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 50 micron |
| Efficiency Test Std | SAE J1985 |
| Style | Spin-On |
| Brand | SCA+™ |
| Media Type | Cellulose |
| Primary Application | CUMMINS 3318318 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 94 mm (3.70 inch)
- Thread Size: 11/16-16 UN
- Length: 136 mm (5.35 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 50 micron
- Efficiency Test Std: SAE J1985
- Style: Spin-On
- Brand: SCA+™
- Media Type: Cellulose
- Primary Application: CUMMINS 3318318
Packaged Dimensions
- Packaged Length: 0.093 m (3.70 inch)
- Packaged Width: 0.100 m (4.00 inch)
- Packaged Height: 0.128 m (5.10 inch)
- Packaged Weight: 0.670 kg (1.48 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-10
- HTS Code: 8421298090
- UPC Code: 742330044063
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 71370797 | |
| AGCO | 72514135 | |
| AMERICAN MOTORS CORPORATION | SFC2054 | |
| AVELING-BARFORD | BW5140 | |
| AVELING-BARFORD | V26206 | |
| BERGERAT MONNOYEUR | E6813 | |
| BOMAG | 31701075 | |
| CASE/CASE IH | 797890C1 | |
| CASE/CASE IH | J318318 | |
| CASE/CASE IH | V26206 | |
| CATERPILLAR | 3I1292 | |
| CEDARAPIDS | 459300015903 | |
| CUMMINS | 3316461 | |
| CUMMINS | 299083 | |
| CUMMINS | 3305370 | |
| CUMMINS | 3318318 | |
| CUMMINS | BF1714 | |
| CUMMINS | 3100308 | |
| DAEWOO | 991218318 | |
| DAF | C3318318 | |
| DEMAG | 692337 | |
| DOOSAN | K1008147 | |
| DOOSAN | 47400020 | |
| DOOSAN | 47400020A | |
| ERF (E.R.F.) | 1355382 | |
| EUCLID | 15267515 | |
| EUCLID | E12565210 | |
| EXMAN | SFC2054 | |
| FG WILSON | 10000051234 | |
| FG WILSON | 901404 | |
| FIAT | V26206 | |
| FIAT | 76193174 | |
| G-TEK | UNIQUEL010 | |
| HIGHPOWEREQUIPMENT | WF2075 | |
| HITACHI | E12565210 | |
| HITACHI | WF2075 | |
| HOUGH | 1246557H1 | |
| IMPERIAL | 04WF2075 | |
| INGERSOLL RAND | 57165805 | |
| INGERSOLL RAND | 36893314 | |
| INGERSOLL RAND | 36896314 | |
| INTERNATIONAL | 1820361C1 | |
| JOHN DEERE | PMWF2075 | |
| JOY | 88250 | |
| KALMAR | 9238280593 | |
| KOMATSU | 3318318 | |
| KOMATSU | BF1714 | |
| KOMATSU | 1246557H1 | |
| KOMATSU | 6216648280 | |
| KOMATSU | 69233700 | |
| KOMATSU | CUWF2075 | |
| KOMATSU | CU3318318 | |
| KOMATSU | 692337 | |
| LIEBHERR | 7367051 | |
| LINK BELT | 3A15997 | |
| LIUGONG | SP125660 | |
| LOCKHEED | LK3538 | |
| LOCKHEED | AP3539A | |
| LOCKHEED | AP3539 | |
| MCCORMICK | J318318 | |
| NEOPART | NEOWF2075 | |
| NEW HOLLAND | 8900126424 | |
| NEW HOLLAND | L76193174 | |
| NEW HOLLAND | V26206 | |
| NEW HOLLAND | 73175973 | |
| ONAN | 1303541 | |
| ORENSTEIN & KOPPEL | 1431699 | |
| ORENSTEIN & KOPPEL | 7225118 | |
| PACCAR | Y02729105 | |
| PERKINS | 26550001 | |
| PETERBILT | 512185 | |
| PREVOST CAR | 19500497 | |
| ROVER | C3318318 | |
| SAAB | 350986 | |
| SAAB | 35098601 | |
| SAMSUNG | F318318 | |
| SDMO | 330560517 | |
| SHAANQI | 3100308X | |
| SISU | 169630041 | |
| SISU | 1696300361 | |
| SISU | 1696300351 | |
| TAMROCK | 04521005 | |
| TAMROCK | 4521005 | |
| TEREX | 15503337 | |
| TEREX | 15266845 | |
| TEREX | G6150597 | |
| TFMC | 320195 | |
| TORQUIP | 76193174 | |
| UNIPART | C3318318 | |
| UNIVERSAL COACH PARTS | T061040 | |
| VAPORMATIC | VPD6082 | |
| VMC | WF552075 | |
| VME | E12565210 | |
| VOLVO | 12565210 | |
| VOLVO | 991218318 | |
| WHITE | 27077521 | |
| XCMG | 800107886 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO 9755 | - | TRACTOR | 9000 SERIES | - 9755 | - |
| AGCO 9775 | - | TRACTOR | 9000 SERIES | - 9775 | - |
| AGCO 9785 | - | TRACTOR | 9000 SERIES | - 9785 | - |
| AGCO 9815 | - | TRACTOR | 9000 SERIES | - 9815 | - |
| AURY NHL NTE240 | - | HAUL TRUCK | - | CUMMINS QSK60 | - |
| CASE/CASE IH CM225 | - | TRACTOR | BEARCAT IV | - CM225 | - |
| CASE/CASE IH CM250 | - | TRACTOR | COUGAR IV | - CM250 | - |
| CASE/CASE IH CM325 | - | TRACTOR | PANTHER IV | - CM325 | - |
| CASE/CASE IH CM360 | - | TRACTOR | PANTHER IV | - CM360 | - |
| CASE/CASE IH CR1225 | - | TRACTOR | COUGAR | - CR1225 | - |
| CASE/CASE IH CR1280 | - | TRACTOR | COUGAR | - CR1280 | - |
| CASE/CASE IH CS280 | - | TRACTOR | - | - CS280 | - |
| CASE/CASE IH CS325 | - | TRACTOR | - | - CS325 | - |
| CASE/CASE IH CS360 | - | TRACTOR | - | - CS360 | - |
| CASE/CASE IH KM225 | - | TRACTOR | - | - KM225 | - |
| CASE/CASE IH KM280 | - | TRACTOR | - | - KM280 | - |
| CASE/CASE IH KM325 | - | TRACTOR | - | - KM325 | - |
| CASE/CASE IH KM360 | - | TRACTOR | - | - KM360 | - |
| CASE/CASE IH KS280 | - | TRACTOR | - | - KS280 | - |
| CASE/CASE IH KS325 | - | TRACTOR | - | - KS325 | - |
| CASE/CASE IH KS360 | - | TRACTOR | - | - KS360 | - |
| CASE/CASE IH LION | - | TRACTOR | - | CUMMINS 855 | - |
| CASE/CASE IH LION | - | TRACTOR | - | CATERPILLAR 3406 | - |
| CASE/CASE IH PANTHER | - | TRACTOR | - | CUMMINS 855 | - |
| CASE/CASE IH PANTHER | - | TRACTOR | - | CATERPILLAR 3406 | - |
| CASE/CASE IH PT350 | - | TRACTOR | - | - PT350 | - |
| CASE/CASE IH PTA251 | - | TRACTOR | - | - PTA251 | - |
| CASE/CASE IH PTA280 | - | TRACTOR | - | - PTA280 | - |
| CASE/CASE IH PTA296 | - | TRACTOR | - | - PTA296 | - |
| CASE/CASE IH PTA297 | - | TRACTOR | - | - PTA297 | - |
| CASE/CASE IH PTA310 | - | TRACTOR | - | - PTA310 | - |
| CASE/CASE IH PTA325 | - | TRACTOR | - | - PTA325 | - |
| CASE/CASE IH ST220 | - | TRACTOR | - | - ST220 | - |
| CASE/CASE IH ST280 | - | TRACTOR | - | - ST280 | - |
| CASE/CASE IH ST310 | - | TRACTOR | - | - ST310 | - |
| CASE/CASE IH ST320 | - | TRACTOR | TIGER II SERIES | - ST320 | - |
| CASE/CASE IH ST325 | - | TRACTOR | - | - ST325 | - |
| CASE/CASE IH ST350 | - | TRACTOR | - | - ST350 | - |
| CASE/CASE IH ST450 | - | TRACTOR | - | - ST450 | - |
| CASE/CASE IH ST470 | - | TRACTOR | - | - ST470 | - |
| CUMMINS KTA38-G4 | - | ENGINE | - | CUMMINS KTA38-G4 | - |
| CUMMINS QSK45 | - | ENGINE | - | - QSK45 | - |
| DOOSAN DL400 | - | LOADER WHEELED | DL SERIES | CUMMINS QSL9 | - |
| DOOSAN DL450 | - | LOADER WHEELED | DL SERIES | CUMMINS QSM11 | - |
| DOOSAN DL500 | - | LOADER WHEELED | DL SERIES | CUMMINS QSM11 | - |
| EUCLID R40 | - | HAUL TRUCK | - | CUMMINS QSK19 | - |
| EUCLID R40C | - | HAUL TRUCK | - | - R40C | - |
| EUCLID R40C | - | HAUL TRUCK | - | CUMMINS QSK19 | - |
| EUCLID R60C | - | HAUL TRUCK | - | - R60C | - |
| EUCLID R60D | - | HAUL TRUCK | - | - R60D | - |
| EUCLID R65C | - | HAUL TRUCK | - | - R65C | - |
| EUCLID R65D | - | HAUL TRUCK | - | - R65D | - |
| FIAT KOBELCO AD30 | - | DUMP TRUCK | - | CUMMINS QSM11 | - |
| FORD 1731 | 2001 | TRUCK | - | CUMMINS 6CTAA8.3 | - |
| FORD 2626 | 1993 | TRUCK | - | CUMMINS 6CTAA8.3 | - |
| FORD 2626 | 2001 | TRUCK | - | CUMMINS 6CTAA8.3 | - |
| FORD 2831 | 2005 | TRUCK | - | CUMMINS 6CTAA8.3 | - |
| FORD 3222 | 2002 | TRUCK | - | CUMMINS 6CTAA8.3 | - |
| FORD 4331 | 2003 | TRUCK | - | CUMMINS 6CTAA8.3 | - |
| FORD 5031 | 2005 | TRUCK | - | CUMMINS 6CTAA8.3 | - |
| GILLIG LOW FLOOR | - | BUS | - | CUMMINS ISM | - |
| GILLIG PHANTOM | - | BUS | - | CUMMINS ISM | - |
| HITACHI EH1000 | - | DUMP TRUCK | - | CUMMINS QSK19 | - |
| HITACHI EH1100 | - | HAUL TRUCK | - | MTU 12V-2000 | - |
| HITACHI EH1700 | - | DUMP TRUCK | - | CUMMINS QST30 | - |
| HITACHI EH4500 | - | DUMP TRUCK | - | DETROIT DIESEL 16V-4000 | - |
| HITACHI EH700 | - | DUMP TRUCK | - | CUMMINS OSK19 | - |
| HITACHI EX1800-2 | - | EXCAVATOR TRACKED | - | CUMMINS KTA19 | - |
| HITACHI EX1800-3 | - | EXCAVATOR TRACKED | - | - EX1800-3 | - |
| HITACHI W270 | - | LOADER WHEELED | - | CUMMINS MTA11C | - |
| HOLIDAY RAMBLER ROADMASTER | - | MOTOR HOME | - | CUMMINS ISM | - |
| INTERNATIONAL 2000 SERIES | - | TRUCK | - | CUMMINS ISM | M11 |
| INTERNATIONAL 5000 SERIES | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 8000 SERIES | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 9000 SERIES | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 9200I | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 9400I | - | TRUCK | - | CUMMINS ISM | - |
| JOHN DEERE 750 | - | EXCAVATOR | - | - 750 | - |
| KOMATSU PC5500-6 | - | EXCAVATOR TRACKED | - | KOMATSU SSA12V159 | - |
| KOMATSU WA450-2 | - | LOADER WHEELED | WA SERIES | - WA450-2 | - |
| MANITOWOC 999 | - | CRANE TRACKED | - | - 999 | - |
| NEW HOLLAND EC450 | - | EXCAVATOR TRACKED | EC SERIES | - EC450 | - |
| NEW HOLLAND EC600 | - | EXCAVATOR TRACKED | EC SERIES | - EC600 | - |
| NEW HOLLAND TM165 | - | TRACTOR | - | - TM165 | - |
| PETERBILT 320 | - | TRUCK | - | CATERPILLAR 3306C | - |
| PETERBILT 357 | - | TRUCK | - | CUMMINS N14 | - |
| PETERBILT 357 | - | TRUCK | - | CATERPILLAR 3176 | - |
| PETERBILT 357 | - | TRUCK | - | CATERPILLAR 3406E | - |
| PETERBILT 359 | - | TRUCK | - | CATERPILLAR 3406E | - |
| PETERBILT 362 | - | TRUCK | - | CATERPILLAR 3406E | - |
| PETERBILT 362E | - | TRUCK | - | CUMMINS N14 | - |
| PETERBILT 372 | - | TRUCK | - | CATERPILLAR 3406E | - |
| PETERBILT 375 | - | TRUCK | - | CATERPILLAR 3406E | - |
| PETERBILT 377A | - | TRUCK | - | CATERPILLAR 3406E | - |
| PETERBILT 377E | - | TRUCK | - | CATERPILLAR 3406E | - |
| SPARTAN MOTORS K2 | - | MOTOR HOME | - | CUMMINS ISM | - |
| STERLING LT7500 | - | TRUCK | - | CUMMINS ISC | - |
| STERLING M8500 | - | TRUCK | - | CUMMINS ISC | - |
| STERLING MT7500 | - | TRUCK | - | CUMMINS ISC | - |
| TEREX 3303B | - | DUMP TRUCK | - | CUMMINS M11C300 | - |
| TEREX TA30 | - | DUMP TRUCK ARTICULATED | TA SERIES | CUMMINS QSM11 | - |
| TEREX TR100 | - | DUMP TRUCK | - | CUMMINS KTA38C | - |
| TEREX TR60 | - | DUMP TRUCK | TR SERIES | CUMMINS QSK19 | - |
| TEREX TR60 | - | HAUL TRUCK | - | CUMMINS QSK19700 | - |
| VOLVO CONSTRUCTION EQUIPMENT EC360 | - | EXCAVATOR TRACKED | EC SERIES | CUMMINS M11 | - |
| XCMG XE470D | - | EXCAVATOR | - | CUMMINS QSM11-350 | - |
| XCMG XE470D | - | EXCAVATOR | - | CUMMINS QSM11 | - |
| XCMG XE490 | - | EXCAVATOR TRACKED | - | CUMMINS QSM11 | - |
| XCMG XE490D | - | EXCAVATOR | - | CUMMINS QSM11 | - |
| XCMG XE490DK | - | EXCAVATOR | - | CUMMINS QSM11 | - |
| ZOOMLION ZE490EK10 | - | EXCAVATOR TRACKED | - | CUMMINS QSM11 | - |
| ZOOMLION ZE550EK10 | - | EXCAVATOR TRACKED | - | CUMMINS QSM11 | - |
