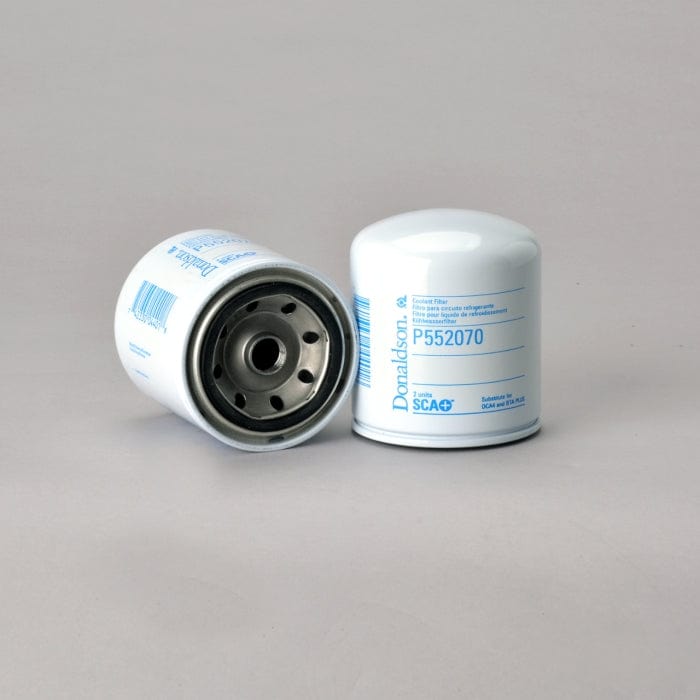

Coolant Filter, Spin-On Sca Plus - Donaldson P552070
Coolant Filter, Spin-On Sca Plus - Donaldson P552070
Regular price
£15.59
Regular price
Sale price
£15.59
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P552070
Coolant Filter, Spin-On Sca Plus| Outer Diameter | 3.70 inch (94 mm) |
| Thread Size | 11/16-16 UN |
| Length | 4.21 inch (107 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 50 micron |
| Efficiency Test Std | SAE J1985 |
| Style | Spin-On |
| Brand | SCA+™ |
| Media Type | Cellulose |
| Primary Application | CUMMINS 3318157 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 94 mm (3.70 inch)
- Thread Size: 11/16-16 UN
- Length: 107 mm (4.21 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 50 micron
- Efficiency Test Std: SAE J1985
- Style: Spin-On
- Brand: SCA+™
- Media Type: Cellulose
- Primary Application: CUMMINS 3318157
Packaged Dimensions
- Packaged Length: 0.098 m (3.90 inch)
- Packaged Width: 0.095 m (3.80 inch)
- Packaged Height: 0.145 m (5.80 inch)
- Packaged Weight: 0.504 kg (1.11 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330044018
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 1076752M1 | |
| AGCO | 303448177 | |
| CUMMINS | 3100303 | |
| CUMMINS | 3318157 | |
| CUMMINS | 3300721 | |
| CUMMINS | 3305366 | |
| ERF (E.R.F.) | 2011107 | |
| HOUGH | 1258389H1 | |
| KNECHT | WFC19 | |
| KOMATSU | CU3318157 | |
| LEYLAND-DAF (LDV) | C3318157 | |
| NEW HOLLAND | 75206848 | |
| ORENSTEIN & KOPPEL | 4611847 | |
| SDMO | 330560513 | |
| TORQUIP | 75206848 | |
| VMC | WF552070 | |
| VOLKSWAGEN | TN4121099 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO DT160 | - | TRACTOR | DT SERIES | - DT160 | - |
| AGCO DT180 | - | TRACTOR | DT SERIES | AGCO 6 CYL | - |
| AGCO DT225 | - | TRACTOR | DT SERIES | - DT225 | - |
| FORD 1421 | 1999 | TRUCK | - | CUMMINS 6BTAA5.9 | - |
| KENWORTH 13.210 | - | TRUCK | MID-RANGER | CUMMINS 6CT8.3 | - |
| KENWORTH 22.210 | - | TRUCK | MID-RANGER | CUMMINS 6CT8.3 | - |
| PETERBILT 320 | - | TRUCK | - | CUMMINS 6CT8.3 | - |
| PETERBILT 357 | - | TRUCK | - | CUMMINS 6CT8.3 | - |
| PETERBILT 376 | - | TRUCK | - | CUMMINS 6CT8.3 | - |
| VOLKSWAGEN 16.220 | - | TRUCK | - | CUMMINS 6CT8.3 | - |
| VOLKSWAGEN 24.220 | - | TRUCK | - | CUMMINS 6CT8.3 | - |
| VOLKSWAGEN 24.250 | - | TRUCK | - | CUMMINS 6CT8.3 | - |
| VOLKSWAGEN 35.300 | - | TRUCK | - | CUMMINS 6CT8.3 | - |
| VOLKSWAGEN CONSTELLATION 24.250 | - | TRUCK | - | CUMMINS ISBE | - |
