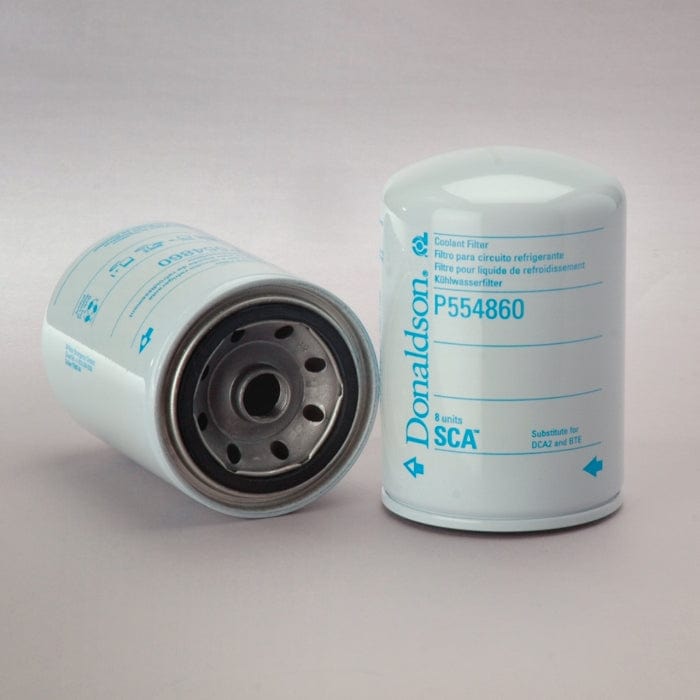

Coolant Filter, Spin-On - Donaldson P554860
Coolant Filter, Spin-On - Donaldson P554860
Regular price
£14.67
Regular price
Sale price
£14.67
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P554860
Coolant Filter, Spin-On| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 3/4-20 UN |
| Length | 5.35 inch (136 mm) |
| Gasket OD | 2.80 inch (71 mm) |
| Gasket ID | 2.40 inch (61 mm) |
| Efficiency 99% | 50 micron |
| Efficiency Test Std | SAE J1985 |
| Style | Spin-On |
| Brand | SCA |
| Media Type | Cellulose |
| Primary Application | MACK 25MF314A |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 3/4-20 UN
- Length: 136 mm (5.35 inch)
Packaged Dimensions
- Packaged Length: 0.094 m (3.75 inch)
- Packaged Width: 0.094 m (3.76 inch)
- Packaged Height: 0.138 m (5.50 inch)
- Packaged Weight: 0.545 kg (1.20 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-10
- HTS Code: 8421298090
- UPC Code: 742330044766
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | WF12 | |
| AMERICAN PARTS | 96428 | |
| AMERICAN PARTS | 135 | |
| AMERICAN PARTS | 96040 | |
| BIG A | 96040 | |
| BIG A | 135 | |
| BIG A | 96428 | |
| CATERPILLAR | 3I1304 | |
| CATERPILLAR | 9Y4530 | |
| CHAMP | LFW4860 | |
| CHAMP | PW4860 | |
| COOP | W475 | |
| CYCLONE | W475 | |
| DELUXE | WD7475 | |
| DELUXE | 7015 | |
| DELUXE | 7475 | |
| DELUXE | WD7015 | |
| FIL | ZP547S | |
| FORD | 9576P554860 | |
| FREIGHTLINER | DNP554860 | |
| GUARDIAN | G024428 | |
| KORODY COLYER | FBW5178 | |
| KRALINATOR | C428 | |
| KRALINATOR | C314 | |
| KRALINATOR | W475 | |
| LEDERER | 2750 | |
| LEYLAND-DAF (LDV) | ACU1275 | |
| LOCKHEED | AP3683 | |
| LOCKHEED | LK3683 | |
| MACK | 25MF428A | |
| MACK | 25MF428 | |
| MACK | 25MF435 | |
| MACK | 25MF435B | |
| MACK | 25MF435A | |
| MACK | 2191P554860 | |
| MACK | 25MF314 | |
| MACK | 25MF314A | |
| MACK | 21938497 | |
| MACK | 25MF3148 | |
| MACK | 25MF314B | |
| P.B.R. | BW2003 | |
| PAI INDUSTRIES INC | FWF4520 | |
| PERRY | PFC428 | |
| PERRY | S475 | |
| PERRY | PFC314 | |
| PRO MATCH | 9Y4530 | |
| QUAKER STATE | QS393 | |
| RENAULT VI | 5000133551 | |
| ROVER | ACU1275 | |
| TEXACO | HDC3 | |
| UNIPART | ACU1275 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688884 | |
| VMC | WF554860 | |
| VOLVO | C4P554860 | |
| VOLVO | 3131416 | |
| WALGAHN-MOTORENTECHN | 811427 | |
| WALGAHN-MOTORENTECHN | 00811427 | |
| WGB | S475 | |
| WHITE | 027077522 | |
| WHITE | 27077522 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| MACK CH613 | - | TRUCK | - | MACK ASET AC | - |
| MACK CH613 | - | TRUCK | - | MACK E7 | - |
| MACK CL713 | - | TRUCK | - | MACK E7 | - |
| MACK CL713 | - | TRUCK | - | MACK ASET AMI | - |
| MACK CM400 | 1988 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.12 | - |
| MACK CM400 | 1988 | TRUCK | MID-LINER | RENAULT VI MIDR 06.20.30 | - |
| MACK CS200 | 1985 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.12 | - |
| MACK CS200 | 1985 | TRUCK | MID-LINER | RENAULT VI MIDR 06.20.30 | - |
| MACK CS250 | 1985 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.12 | - |
| MACK CS300 | 1986 | TRUCK | MID-LINER | RENAULT VI MIDR 06.20.30 | - |
| MACK CS300 | 1990 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.26 | - |
| MACK CT713 | - | TRUCK | - | MACK ASET 375 | - |
| MACK CV713 | - | TRUCK | - | MACK E7 | - |
| MACK CV713 | - | TRUCK | - | MACK ASET AMI | - |
| MACK E6 | - | ENGINE | - | - E6 | - |
| MACK E7 | - | ENGINE | - | - E7 | - |
| MACK EM-6 | - | ENGINE | - | - EM-6 | - |
| MACK EM-7 | - | ENGINE | - | - EM-7 | - |
| MACK END-673 | - | ENGINE | - | - END-673 | - |
| MACK END-673A | - | ENGINE | - | - END-673A | - |
| MACK END-673B | - | ENGINE | - | - END-673B | - |
| MACK END-673C | - | ENGINE | - | - END-673C | - |
| MACK END-673D | - | ENGINE | - | - END-673D | - |
| MACK END-673E | - | ENGINE | - | - END-673E | - |
| MACK END-711 | - | ENGINE | - | - END-711 | - |
| MACK END-711B | - | ENGINE | - | - END-711B | - |
| MACK END-864 | - | ENGINE | - | - END-864 | - |
| MACK ENDL-711 | - | ENGINE | - | - ENDL-711 | - |
| MACK ENDLT-673 | - | ENGINE | - | - ENDLT-673 | - |
| MACK ENDLT-673C | - | ENGINE | - | - ENDLT-673C | - |
| MACK ENDT-475 | - | ENGINE | - | - ENDT-475 | - |
| MACK ENDT-673A | - | ENGINE | - | - ENDT-673A | - |
| MACK ENDT-673B | - | ENGINE | - | - ENDT-673B | - |
| MACK ENDT-673C | - | ENGINE | - | - ENDT-673C | - |
| MACK ENDT-676 | - | ENGINE | - | - ENDT-676 | - |
| MACK ENDT-864 | - | ENGINE | - | - ENDT-864 | - |
| MACK ENDT-864A | - | ENGINE | - | - ENDT-864A | - |
| MACK ENDTB-865 | - | ENGINE | - | - ENDTB-865 | - |
| MACK ET-673 | - | ENGINE | - | - ET-673 | - |
| MACK ETAZ-673A | - | ENGINE | - | - ETAZ-673A | - |
| MACK ETAZB-673A | - | ENGINE | - | - ETAZB-673A | - |
| MACK MH613 | - | TRUCK | - | MACK E7 | - |
| MACK MR690P | - | TRUCK | - | MACK E7 | - |
| MACK MR690S | - | TRUCK | - | MACK E7 | - |
| MACK MS200 | 1988 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.26 | - |
| MACK MS200 | 1988 | TRUCK | MID-LINER | RENAULT VI MIDR 06.20.30 | - |
| MACK MS250 | 1984 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.12 | - |
| MACK MS250 | 1988 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.26 | - |
| MACK MS300 | 1984 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.12 | - |
| MACK MS300 | 1984 | TRUCK | MID-LINER | RENAULT VI MIDR 06.20.30 | - |
| MACK MS300 | 1991 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.26 | - |
