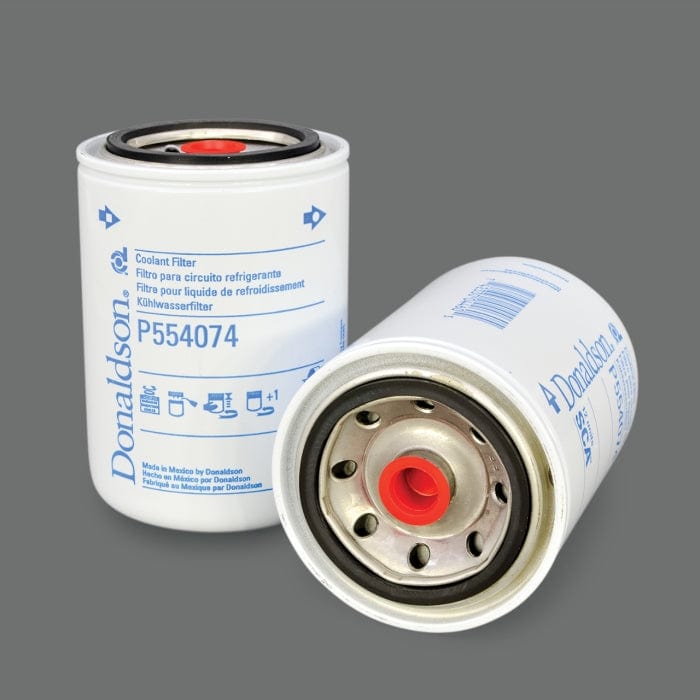

Coolant Filter, Spin-On - Donaldson P554074
Coolant Filter, Spin-On - Donaldson P554074
Regular price
£10.37
Regular price
Sale price
£10.37
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P554074
Coolant Filter, Spin-On| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 11/16-16 UN |
| Length | 5.35 inch (136 mm) |
| Gasket OD | 2.80 inch (71 mm) |
| Gasket ID | 2.40 inch (61 mm) |
| Efficiency 99% | 50 micron |
| Efficiency Test Std | SAE J1985 |
| Style | Spin-On |
| Brand | SCA |
| Media Type | Cellulose |
| Primary Application | CUMMINS 3316053 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 11/16-16 UN
- Length: 136 mm (5.35 inch)
- Gasket OD: 71 mm (2.80 inch)
- Gasket ID: 61 mm (2.40 inch)
- Efficiency 99%: 50 micron
- Efficiency Test Std: SAE J1985
- Style: Spin-On
- Brand: SCA
- Media Type: Cellulose
- Primary Application: CUMMINS 3316053
Packaged Dimensions
- Packaged Length: 0.094 m (3.75 inch)
- Packaged Width: 0.094 m (3.75 inch)
- Packaged Height: 0.131 m (5.25 inch)
- Packaged Weight: 0.522 kg (1.15 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-10
- HTS Code: 8421298090
- UPC Code: 742330044605
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | WF102 | |
| AC DELCO | WF115 | |
| AC DELCO | WF115F | |
| ALLIS-CHALMERS | 4681776 | |
| AMERICAN MOTORS CORPORATION | SFC2074 | |
| ATLAS COPCO | 23507189 | |
| BAUDOUIN | 15039040H | |
| BEML | 6710618113 | |
| BEML | 6710618130 | |
| BEML | 6004111151 | |
| BEML | 6710618112 | |
| BEML | 6004111020 | |
| BEML | 6004111010 | |
| BIG A | 96073 | |
| BUHLER VERSATILE | 861361 | |
| BUHLER VERSATILE | 26206 | |
| CARBOCOL | 24025 | |
| CASE/CASE IH | E7HZ8A424C | |
| CASE/CASE IH | V26206 | |
| CASE/CASE IH | S302030 | |
| CASE/CASE IH | B2750502 | |
| CASE/CASE IH | E8HN8A424AA | |
| CASE/CASE IH | A152819 | |
| CASE/CASE IH | 749F8A469BAA | |
| CATERPILLAR | 9Y4531 | |
| CATERPILLAR | 9N3866 | |
| CATERPILLAR | 9N3366 | |
| CATERPILLAR | 7E6013 | |
| CHAMP | PW4013 | |
| CHAMP | LFW4013 | |
| CHAMPION ROAD | 34654 | |
| CHARDONNET | 7255401300 | |
| COLES-GROVE | 8769674 | |
| COLES-GROVE | 9414100549 | |
| COOPERS | CSM6502 | |
| COOPERS | AZW003 | |
| CROSLAND | 9341 | |
| CUMMINS | 3315788 | |
| CUMMINS | 258264 | |
| CUMMINS | 3315114 | |
| CUMMINS | 3310752 | |
| CUMMINS | 3831133 | |
| DETROIT DIESEL | 23507189 | |
| DETROIT DIESEL | 23508426 | |
| DRESSER | 1801088C1 | |
| DRESSER | 690140C1 | |
| DRESSER | 690172C1 | |
| DRESSER | 797890C1 | |
| DRESSER | 441365C2 | |
| ERF (E.R.F.) | C3305370 | |
| EUCLID | E12968663 | |
| EXMAN | SFC2074 | |
| FAUN | 4787502 | |
| FIAAM | FT5399 | |
| FIAT | E8HN8A424AA | |
| FIAT | E7HZ8A424C | |
| FIAT | 61259013 | |
| FIAT | V26206 | |
| FIAT | 73144662 | |
| FIAT | 749F8A469BAA | |
| FIAT | 78300224 | |
| FIAT | 04681776 | |
| FIAT | 04734562 | |
| FMC | 3A11553 | |
| FODEN | Y05013401 | |
| FODEN | Y05815203 | |
| FODEN | Y02729105 | |
| FODEN | Y05762512 | |
| FORD | 7E6013 | |
| FORD | V26206 | |
| FORD | D5HZ8A424A | |
| FORD | E8HN8A424M | |
| FORD | E8HN8A424AA | |
| FORD | 9576P554074 | |
| FORD | 749F8A469BAA | |
| FORD | E7HZ8A424C | |
| FREIGHTLINER | DNP554013 | |
| FREIGHTLINER | DNP554074 | |
| FURUKAWA | 1801088C1 | |
| FURUKAWA | 797890C1 | |
| FURUKAWA | 441365C2 | |
| FURUKAWA | 690140C1 | |
| GUD | Z241 | |
| HINO | 3315788 | |
| HITACHI | 1801088C1 | |
| HITACHI | 78300224 | |
| HITACHI | 61259013 | |
| INGERSOLL RAND | 52248887 | |
| INTERNATIONAL | 690140C1 | |
| INTERNATIONAL | 690172C1 | |
| INTERNATIONAL | 441365C2 | |
| INTERNATIONAL | 797890C1 | |
| JOHN DEERE | AR94650 | |
| JOHN DEERE | AR87112 | |
| JOHN DEERE | AR89379 | |
| KENWORTH | KW2054 | |
| KOMATSU | 441365C1 | |
| KOMATSU | 6004111151 | |
| KOMATSU | 6742014110 | |
| KOMATSU | CUWF2053 | |
| KOMATSU | CUWF2054 | |
| KOMATSU | 6004111150 | |
| KOMATSU | 6004111160 | |
| KOMATSU | 6004111020 | |
| KOMATSU | 690172C1 | |
| KOMATSU | 6004111320 | |
| KOMATSU | 6004111420 | |
| KOMATSU | 692336 | |
| KRALINATOR | C22 | |
| KRALINATOR | C16 | |
| KRALINATOR | W300 | |
| KRALINATOR | C30 | |
| KRALINATOR | C24 | |
| KRALINATOR | W373 | |
| KRALINATOR | W472 | |
| LETOURNEAU | 4123630 | |
| LIEBHERR | 7402019 | |
| LOCKHEED | LK3538 | |
| MCCORMICK | A152819 | |
| NEOPART | DONP554074 | |
| NEOPLAN | DONP554074 | |
| NEW HOLLAND | 749F8A469BAA | |
| NEW HOLLAND | V26206 | |
| NEW HOLLAND | E7HZ8A424C | |
| NEW HOLLAND | 861361 | |
| NEW HOLLAND | E8HN8A424AA | |
| NEW HOLLAND | 80861361 | |
| ORENSTEIN & KOPPEL | 104405 | |
| P.B.R. | BW2006 | |
| PERKINS | OE46263 | |
| PERMATIC | FH306V | |
| PERRY | S3 | |
| PERRY | PFC30 | |
| PERRY | PFC24A | |
| RENAULT VI | 5000808722 | |
| SANDVIK | 4521005 | |
| SANDVIK | 04521005 | |
| SISU | 1696300441 | |
| SISU | 1693110351 | |
| STEWART & STEVENSON | 420014 | |
| TEREX | TE23507189 | |
| TEREX | B2750502 | |
| TEREX | 15270826 | |
| TEXACO | HDC2 | |
| TFMC | T50516 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688812 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688836 | |
| VMC | WF554074 | |
| VOLVO | 34654 | |
| VOLVO | 79286795 | |
| VOLVO | 3131414 | |
| VOLVO PENTA | 79286795 | |
| WALGAHN-MOTORENTECHN | 00811408 | |
| WALGAHN-MOTORENTECHN | 811408 | |
| WHITE | 027077521 | |
| WHITE | 207015007 |
