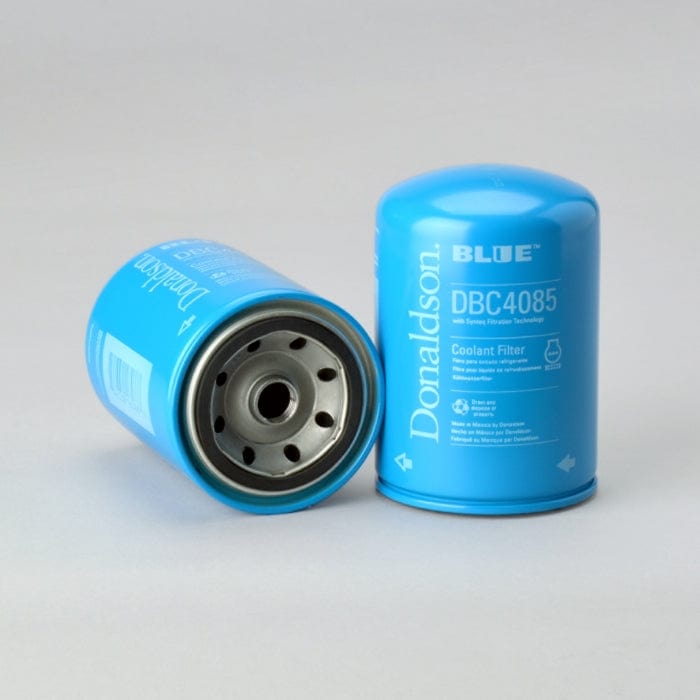

Coolant Filter, Spin-On Donaldson Blue No Chemical - Donaldson DBC4085
Coolant Filter, Spin-On Donaldson Blue No Chemical - Donaldson DBC4085
Regular price
£20.51
Regular price
Sale price
£20.51
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson DBC4085
Coolant Filter, Spin-On Donaldson Blue No Chemical| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 11/16-16 UN |
| Length | 5.31 inch (135 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 22 micron |
| Style | Spin-On |
| Brand | Donaldson BLUE® |
| Media Brand | Synteq™ |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 11/16-16 UN
- Length: 135 mm (5.31 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 22 micron
- Style: Spin-On
- Brand: Donaldson BLUE®
- Media Brand: Synteq™
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.148 m (5.91 inch)
- Packaged Weight: 0.565 kg (1.25 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330165867
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 96083 | |
| BIG A | 96084 | |
| CUMMINS | XWF4246 | |
| CUMMINS | XWF4245 | |
| CUMMINS | 3098690 | |
| CUMMINS | 393212000 | |
| DAF | 1649751 | |
| GILLIG | 8235059000 | |
| INTERNATIONAL | 393212000 | |
| INTERNATIONAL | 1833690C1 | |
| KOMATSU | 6004115110 | |
| KRALINATOR | CM83 | |
| KRALINATOR | CM84 | |
| MTU | 2043697 | |
| PACCAR | 1649751 | |
| THERMO KING | 3E86979G01 | |
| VMC | WF4085 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CUMMINS QSL9 | - | ENGINE | - | CUMMINS QSL9 | - |
| GILLIG LOW FLOOR | - | BUS | - | CUMMINS ISM | - |
| GILLIG PHANTOM | - | BUS | - | CUMMINS ISM | - |
| HOLIDAY RAMBLER ROADMASTER | - | MOTOR HOME | - | CUMMINS ISM | - |
| INTERNATIONAL 2000 SERIES | - | TRUCK | - | CUMMINS ISM | M11 |
| INTERNATIONAL 5000 SERIES | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 8000 SERIES | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 9000 SERIES | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 9200I | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL 9400I | - | TRUCK | - | CUMMINS ISM | - |
| INTERNATIONAL CXT | - | TRUCK | - | INTERNATIONAL DT466 | - |
| KENWORTH T409 | - | TRUCK | - | PACCAR MX13 | - |
| KENWORTH T409SAR | - | TRUCK | - | PACCAR MX13 | - |
| KENWORTH T660 | - | TRUCK | - | PACCAR MX13 | - |
| KENWORTH T800 | - | TRUCK | - | CATERPILLAR C13 | - |
| KENWORTH W900L | - | TRUCK | - | CATERPILLAR C15 | - |
| KENWORTH W900L | - | TRUCK | - | CATERPILLAR C16 | - |
| KOMATSU 730E | - | DUMP TRUCK | - | KOMATSU SSA16V159 | - |
| PACCAR MX | - | ENGINE | 11, 13 | PACCAR MX | - |
| PETERBILT 379 | - | TRUCK | - | DETROIT DIESEL SERIES 60 | - |
| SPARTAN MOTORS K2 | - | MOTOR HOME | - | CUMMINS ISM | - |
