• Donaldson Clamp, Bent Bolt 5 In (127 Mm) - Donaldson M001668
1 1

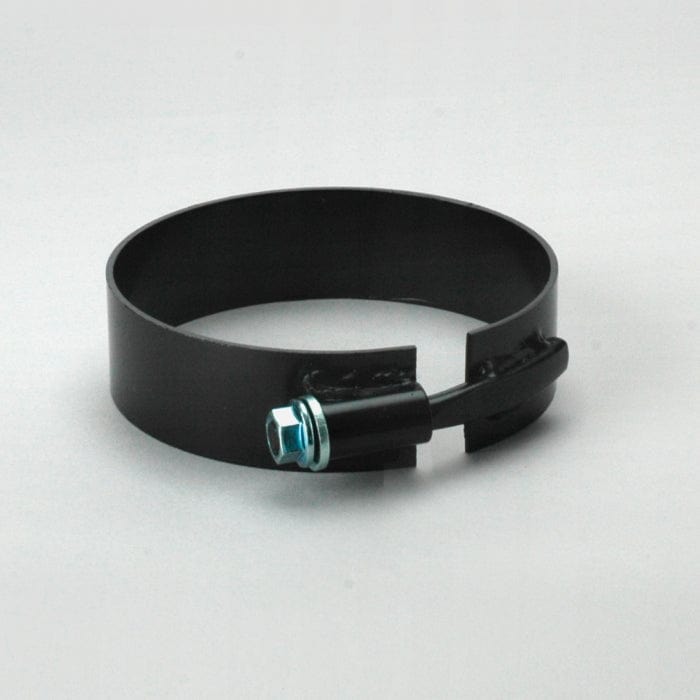

Clamp, Bent Bolt 5 In (127 Mm) - Donaldson M001668

Clamp, Bent Bolt 5 In (127 Mm) - Donaldson M001668

£14.65
£14.65
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M001668

Clamp, Bent Bolt 5 In (127 Mm)
Nominal ID 3.90 inch (99.1 mm)
Functional-ID Range Minimum 5.04 inch (128 mm)
Functional-ID Range Maximum 5.20 inch (132 mm)
Style Bent Bolt
View full details

Specifications

Attributes

  • Nominal ID: 99.1 mm (3.90 inch)
  • Functional ID Range Minimum: 128 mm (5.04 inch)
  • Functional ID Range Maximum: 132 mm (5.20 inch)
  • Style: Bent Bolt

Packaged Dimensions

  • Packaged Length: 0.150 m (6.00 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.043 m (1.70 inch)
  • Packaged Weight: 0.420 kg (0.93 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: China
  • NMFC Code: 094110
  • HTS Code: 7326909890
  • UPC Code: 742330108383

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AG CHEM EQUIPMENT 126558
AGCO AG126558
CASE/CASE IH BN313592
CATERPILLAR 7E6455
CATERPILLAR 1411480
DANA 1411480
DITCH WITCH 194451
GILLIG 0156494N000
JOHN DEERE RE52768
KENWORTH 42104
KOMATSU 84656
PACCAR 42104
SANDVIK 510791
TYLER POWER PRODUCTS 313592
TYLER POWER PRODUCTS BN313592
VERMEER 617890001
