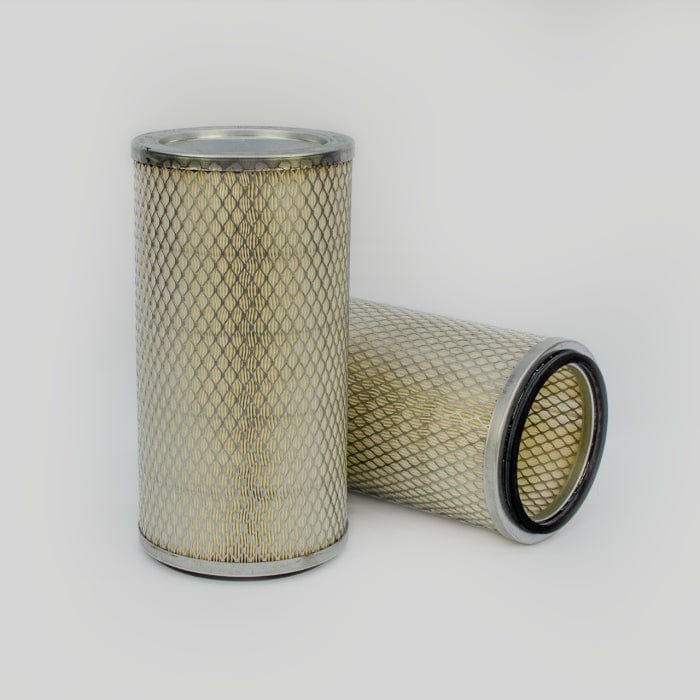

Air Filter, Safety - Donaldson P522450
Air Filter, Safety - Donaldson P522450
Regular price
£31.90
Regular price
Sale price
£31.90
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P522450
Air Filter, Safety| Outer Diameter | 5.56 inch (141.2 mm) |
| Inner Diameter | 4.20 inch (106.7 mm) |
| Length | 10.57 inch (268.5 mm) |
| Bolt Hole Diameter | 0.66 inch (16.76 mm) |
| Efficiency Test Std | ISO 5011 |
| Primary Application | KOMATSU 6114807101S |
| Type | Safety |
| Style | Round |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 141.2 mm (5.56 inch)
- Inner Diameter: 106.7 mm (4.20 inch)
- Length: 268.5 mm (10.57 inch)
- Bolt Hole Diameter: 16.76 mm (0.66 inch)
- Efficiency Test Std: ISO 5011
- Primary Application: KOMATSU 6114807101S
- Type: Safety
- Style: Round
Packaged Dimensions
- Packaged Length: 0.167 m (6.69 inch)
- Packaged Width: 0.167 m (6.69 inch)
- Packaged Height: 0.305 m (12.20 inch)
- Packaged Weight: 0.720 kg (1.59 lb)
- Packaged Volume: 0.009 m3 (0.32 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-06
- HTS Code: 8421310090
- UPC Code: 742330033210
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCOA MARINE | KA1594 | |
| AMERICAN MOTORS CORPORATION | KA1594 | |
| AMERICAN PARTS | 94378 | |
| ASAHI | KA1594 | |
| BIG A | 94378 | |
| CATERPILLAR | 3I0971 | |
| CATERPILLAR | 3I1067 | |
| CATERPILLAR | 9Y6853 | |
| CATERPILLAR | 3I1435 | |
| COOPERS | AES2069 | |
| GREYFRIARS | 1308A | |
| KOMATSU | X6001812461 | |
| KOMATSU | 6001812460 | |
| KOMATSU | 6001812461 | |
| KOMATSU | 6114807100 | |
| KOMATSU | 6114807101S | |
| KRALINATOR | LA1281 | |
| LOESING | 22016 | |
| LOESING | 022016 | |
| NELSON | 70868N | |
| ORENSTEIN & KOPPEL | 1455327 | |
| P.B.R. | AI3370 | |
| PRO MATCH | 9Y6853 | |
| VIRGIS | CH12605 | |
| VMC | AF522450 | |
| WALGAHN-MOTORENTECHN | 00811234 | |
| WALGAHN-MOTORENTECHN | 811234 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| KOMATSU D5016 | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D5017 | - | DOZER TRACKED | - | KOMATSU 6D125-1 | - |
| KOMATSU D5018 | - | DOZER TRACKED | - | KOMATSU 6D125-1 | - |
| KOMATSU D50A-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1 | - |
| KOMATSU D50A-16 | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D50A-17 | - | DOZER TRACKED | - | KOMATSU 6D125-1A-EA | - |
| KOMATSU D50F-17 | - | DOZER TRACKED | - | KOMATSU 6D125 | - |
| KOMATSU D50P-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1 | - |
| KOMATSU D50P-16 | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D50P-17 | - | DOZER TRACKED | - | KOMATSU 6D125 | - |
| KOMATSU D50PL-16 | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D50PL-17 | - | DOZER TRACKED | - | - D50PL-17 | - |
| KOMATSU D50S-16 | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D50S-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1 | - |
| KOMATSU D53A | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D53A | - | DOZER TRACKED | - | KOMATSU 4D130-1 | - |
| KOMATSU D53A-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1E | - |
| KOMATSU D53A-17 | - | DOZER TRACKED | - | KOMATSU 6D125E-2D-5 | - |
| KOMATSU D53A-17 | - | DOZER TRACKED | - | KOMATSU 6D125-1C-EA | - |
| KOMATSU D53P-16 | - | DOZER TRACKED | - | KOMATSU SL4D130-1C | - |
| KOMATSU D53P-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1E | - |
| KOMATSU D53P-17 | - | DOZER TRACKED | - | KOMATSU 6D125E-2D-5 | - |
| KOMATSU D53P-17 | - | DOZER TRACKED | - | KOMATSU 6D125-1D-EA | - |
| KOMATSU D53S-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1F | - |
| KOMATSU D53S-17 | - | DOZER TRACKED | - | KOMATSU 4D130-1H | - |
| KOMATSU D58-1 | - | DOZER TRACKED | - | KOMATSU S4D130-1 | - |
| KOMATSU D58E-1 | - | DOZER TRACKED | - | KOMATSU 6D125-1DD-EW | - |
| KOMATSU D58E-1 | - | DOZER TRACKED | - | KOMATSU 6D125E-2G-5 | - |
| KOMATSU D58P-1 | - | DOZER TRACKED | - | KOMATSU 6D125-1EE-EW | - |
| KOMATSU D58P-1 | - | DOZER TRACKED | - | KOMATSU 6D125E-2H-5 | - |
| KOMATSU D58P-1B | - | DOZER TRACKED | - | KOMATSU 6D125E-2H-5 | - |
| KOMATSU D58P-1B | - | DOZER TRACKED | - | KOMATSU 6D125-1EE-EW | - |
| KOMATSU D60-12 | - | DOZER TRACKED | - | KOMATSU 6D125-1 | - |
| KOMATSU D60P-11 | - | DOZER TRACKED | - | KOMATSU 6D125-1XX | - |
| KOMATSU D63E-1 | - | DOZER TRACKED | - | KOMATSU 6D125-1 | - |
| KOMATSU D65E-12 | - | DOZER TRACKED | - | KOMATSU 6D125E-2A-45 | - |
| KOMATSU D65P-12 | - | DOZER TRACKED | - | KOMATSU 6D125-1 | - |
| KOMATSU D65PX-12 | - | DOZER TRACKED | - | - D65PX-12 | - |
| KOMATSU GD310RC-3A | - | GRADER | - | KOMATSU 4D130-1 | - |
| KOMATSU GD31RC-3A | - | GRADER | - | KOMATSU 4D130-1 | - |
| KOMATSU GD613A-1 | - | GRADER | - | KOMATSU 6D125-1 | - |
| KOMATSU GD623A-1 | - | GRADER | - | KOMATSU 6D125-1Z-EW | - |
| KOMATSU GD663A-1 | - | GRADER | - | KOMATSU 6D125-1 | - |
| KOMATSU PC200 | - | EXCAVATOR TRACKED | - | KOMATSU S6D105-1 | - |
| KOMATSU PC200 | - | EXCAVATOR | - | KOMATSU S6D95L-1 | - |
| KOMATSU PC200-1 | - | EXCAVATOR TRACKED | - | KOMATSU 6D105-1 | - |
| KOMATSU PC200-1 | - | EXCAVATOR TRACKED | - | KOMATSU S6D105 | - |
| KOMATSU PC20HT-1 | - | EXCAVATOR TRACKED | - | KOMATSU 4D130 | - |
