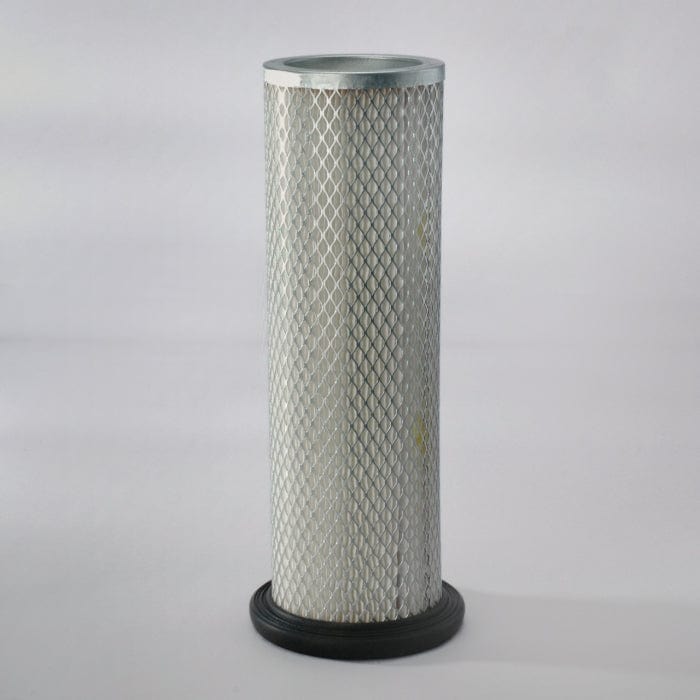

Air Filter, Safety - Donaldson P145703

Air Filter, Safety - Donaldson P145703

£31.86
£31.86
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P145703

Air Filter, Safety
View full details

Specifications

Attributes

  • Outer Diameter: 116.4 mm (4.58 inch)
  • Inner Diameter: 88.3 mm (3.48 inch)
  • Length: 373.9 mm (14.72 inch)
  • Bolt Hole Diameter: 16.76 mm (0.66 inch)
  • Efficiency Test Std: ISO 5011
  • Type: Safety
  • Style: Round

Packaged Dimensions

  • Packaged Length: 0.167 m (6.69 inch)
  • Packaged Width: 0.177 m (7.09 inch)
  • Packaged Height: 0.404 m (16.14 inch)
  • Packaged Weight: 0.858 kg (1.89 lb)
  • Packaged Volume: 0.012 m3 (0.44 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330012826

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS AP3034A
AC DELCO A1124C
ALCOA MARINE MA464B
AMERICAN MOTORS CORPORATION AE22100
AMERICAN MOTORS CORPORATION SFA5703S
AMERICAN MOTORS CORPORATION MA464B
AMERICAN PARTS 93399
ASAHI KA1620
ASAHI KA1652
ASAHI KA1581
BIG A 93399
CATERPILLAR 9Y6830
CATERPILLAR 3I0375
CATERPILLAR 3I1433
CONTINENTAL PCA570SY
CUMMINS 425380
CUMMINS AR90516
DIAMOND DX3853
DRESSER 6691817310
EXMAN AE22100
EXMAN SFA5703S
FAMEL FR1418
GPC FC347
GUARDIAN G817310
GUD ADG499
HYUNDAI 11L40079
KOMATSU 6691807211S
KOMATSU 6001811441
KOMATSU 6691807210S
KOMATSU 6691807212S
KOMATSU 66911817310
KOMATSU 6691817310
KOMATSU 6691817310P
KOMATSU 6691817212
KOMATSU 14401B5620
KOMATSU 6691817212S
KOMATSU 1440185620
KRALINATOR LA488
LOCKHEED AP3034
LOCKHEED AP3034A
NELSON 70239N
NELSON 145703
NELSON WINSLOW 145703
ORENSTEIN & KOPPEL 101147
P.B.R. AI3286
POSTAS HF1443
PRO MATCH 9Y6830
TEREX 101147
VMC AF145703
WALGAHN-MOTORENTECHN 810839
WALGAHN-MOTORENTECHN 00810839
WGB SA419

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HYUNDAI HL17 - LOADER WHEELED HL SERIES CUMMINS 6BT5.9 -
HYUNDAI HL25 - LOADER WHEELED HL SERIES CUMMINS 6CT8.3 -
HYUNDAI HL750 - LOADER WHEELED HL SERIES CUMMINS 6BT5.9 -
HYUNDAI HL750TM - LOADER WHEELED HL SERIES CUMMINS 6BT5.9 -
HYUNDAI HL760 - LOADER WHEELED HL SERIES CUMMINS 6CT8.3 -
KOMATSU D55S - DOZER TRACKED - - D55S -
KOMATSU D55S-3 - DOZER TRACKED - - D55S-3 -
KOMATSU D60 - DOZER TRACKED - CUMMINS NH220 -
KOMATSU D60P-3 - DOZER TRACKED - CUMMINS NH220 -
KOMATSU D60S-3 - DOZER TRACKED - CUMMINS NH220 -
KOMATSU D65A - DOZER TRACKED - CUMMINS NH220 -
KOMATSU D65E-6 - DOZER TRACKED - - D65E-6 -
KOMATSU D65P - DOZER TRACKED - CUMMINS NH220 -
KOMATSU D65P-6 - DOZER TRACKED - CUMMINS NH220 -
KOMATSU D65PL-6 - DOZER TRACKED - CUMMINS NH220 -
KOMATSU D68E-1 - DOZER TRACKED - KOMATSU 6D125 -
KOMATSU D75S - DOZER TRACKED - CUMMINS NH220 -
KOMATSU D75S-2 - DOZER TRACKED - CUMMINS NH220 -
KOMATSU D75S-2 - DOZER TRACKED - CUMMINS NH220C -
KOMATSU D75S-2 - DOZER TRACKED - CUMMINS NH220C1 -
KOMATSU D85A-12 - DOZER TRACKED - CUMMINS NH-220-CI-2L -
KOMATSU D85A-12 - DOZER TRACKED - CUMMINS NH220 -
KOMATSU D85E-12 - DOZER TRACKED - CUMMINS NH220 -
KOMATSU DA85A-12 - DOZER TRACKED - CUMMINS NH220 -
KOMATSU GD40-2 - GRADER - - GD40-2 -
KOMATSU GD40-2 - GRADER - CUMMINS NH220 -
KOMATSU GD705R-1 - GRADER - CUMMINS NH220C1-2AA -
KOMATSU GD705R-2 - GRADER - CUMMINS NH220 -
KOMATSU NH220C-1 - ENGINE - - NH220C-1 -
