• Donaldson Air Filter, Primary Wrap - Donaldson P521685
1 1

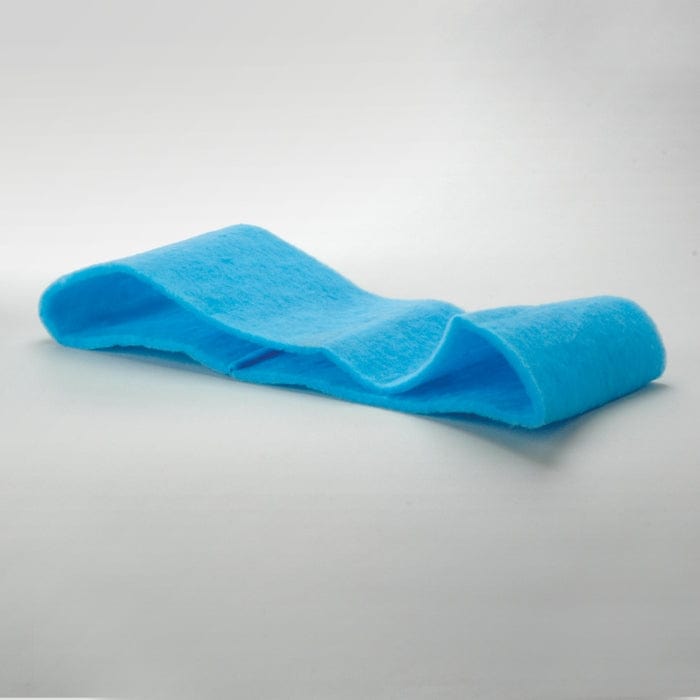

Air Filter, Primary Wrap - Donaldson P521685

Air Filter, Primary Wrap - Donaldson P521685

£16.36
£16.36
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P521685

Air Filter, Primary Wrap
Outer Diameter 19.61 inch (498 mm)
Inner Diameter 19.09 inch (485 mm)
Length 9.84 inch (250 mm)
Primary Application CATERPILLAR 8N2555
Type Primary
Style Wrap
View full details

Specifications

Attributes

  • Outer Diameter: 498 mm (19.61 inch)
  • Inner Diameter: 485 mm (19.09 inch)
  • Length: 250 mm (9.84 inch)
  • Primary Application: CATERPILLAR 8N2555
  • Type: Primary
  • Style: Wrap

Packaged Dimensions

  • Packaged Length: 0.173 m (6.90 inch)
  • Packaged Width: 0.175 m (7.00 inch)
  • Packaged Height: 0.275 m (11.00 inch)
  • Packaged Weight: 0.211 kg (0.47 lb)
  • Packaged Volume: 0.009 m3 (0.31 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-01
  • HTS Code: 5911909990
  • UPC Code: 742330106365

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 96261
CATERPILLAR 8N2555
GRAINGER 2KYR8
MARINE PERFORMANCE MPL4609
VMC AF521685

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 3508 - ENGINE - CATERPILLAR 3508 -
CATERPILLAR 3508B - ENGINE - - 3508B -
CATERPILLAR 3512B - ENGINE - - 3512B -
CATERPILLAR 3516B - ENGINE - CATERPILLAR 3516B -
CATERPILLAR G3512 - ENGINE - CATERPILLAR G3512 -
CATERPILLAR PM3508 - GENERATOR SET - - PM3508 -
